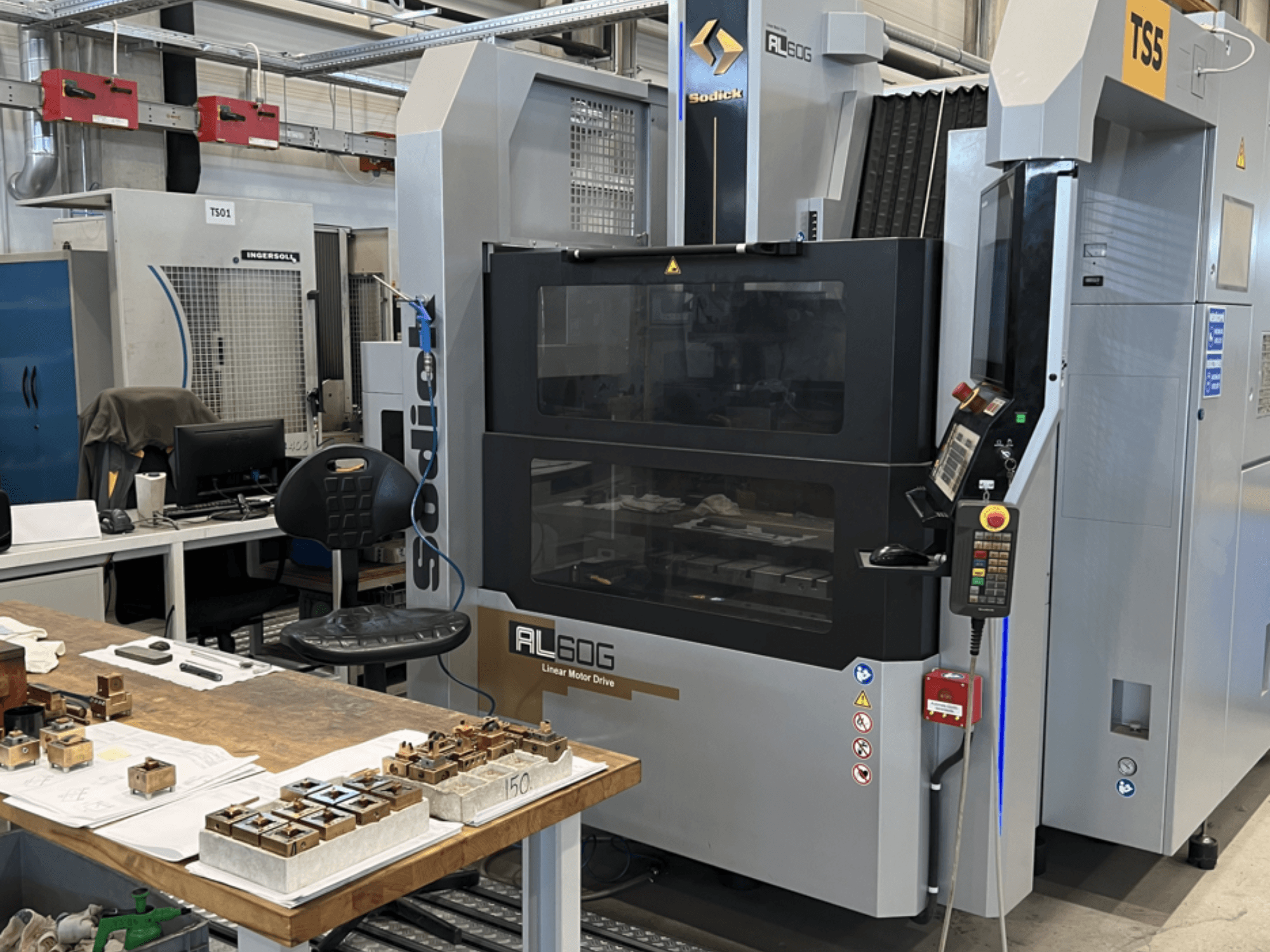

This 3-axis Sodick AL60G die-sinking EDM machine was manufactured in 2021. It features a generous X-axis travel of 600 mm, Y-axis travel of 420 mm, and Z-axis travel of 370 mm. The machine has a maximum workpiece weight capacity of 1,500 kg and a work tank fluid level range of 150 to 400 mm. If you are looking to get high-quality die-sinking capabilities, consider the Sodick AL60G machine we have for sale. Contact us for further details.
Overview
- brand: Sodick
- year: 2021
- MODEL: AL60G
- production hours: 15000
- application type: EDM
- Location: Hungary
- machine type: Die-Sinking EDM Machine
Technical Information - Sodick AL60G
Dimensions
- Machine Height: 2570 mm
- Machine Length: 2930 mm
- Machine Weight: 5350 kg
- Machine Width: 1875 mm
- Table Length: 550 mm
- Table Width: 750 mm
Movement
- Number of Axes: 3
- X-axis Travel: 600 mm
- Y-axis Travel: 420 mm
- Z-axis Travel: 370 mm
Additional Information
Working hours: 15,000
Work tank dimensions (W x D x H): 950 x 740 x 450 mm
Work tank fluid level (min–max): 150–400 mm
Maximum workpiece weight: 1,500 kg
Maximum electrode weight: 50 kg
Distance from floor to table top: 850 mm
Installation dimensions: 2,600 x 3,850 mm
Total power input: 3-phase, 50/60 Hz, 10 kVA
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
