Sodick AD 55 L

Photo Gallery

Sodick - AD 55 LDE-EDM-SOD-2016-00001

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Sodick AD 55 L For Sale | gindumac.com

Show in original language

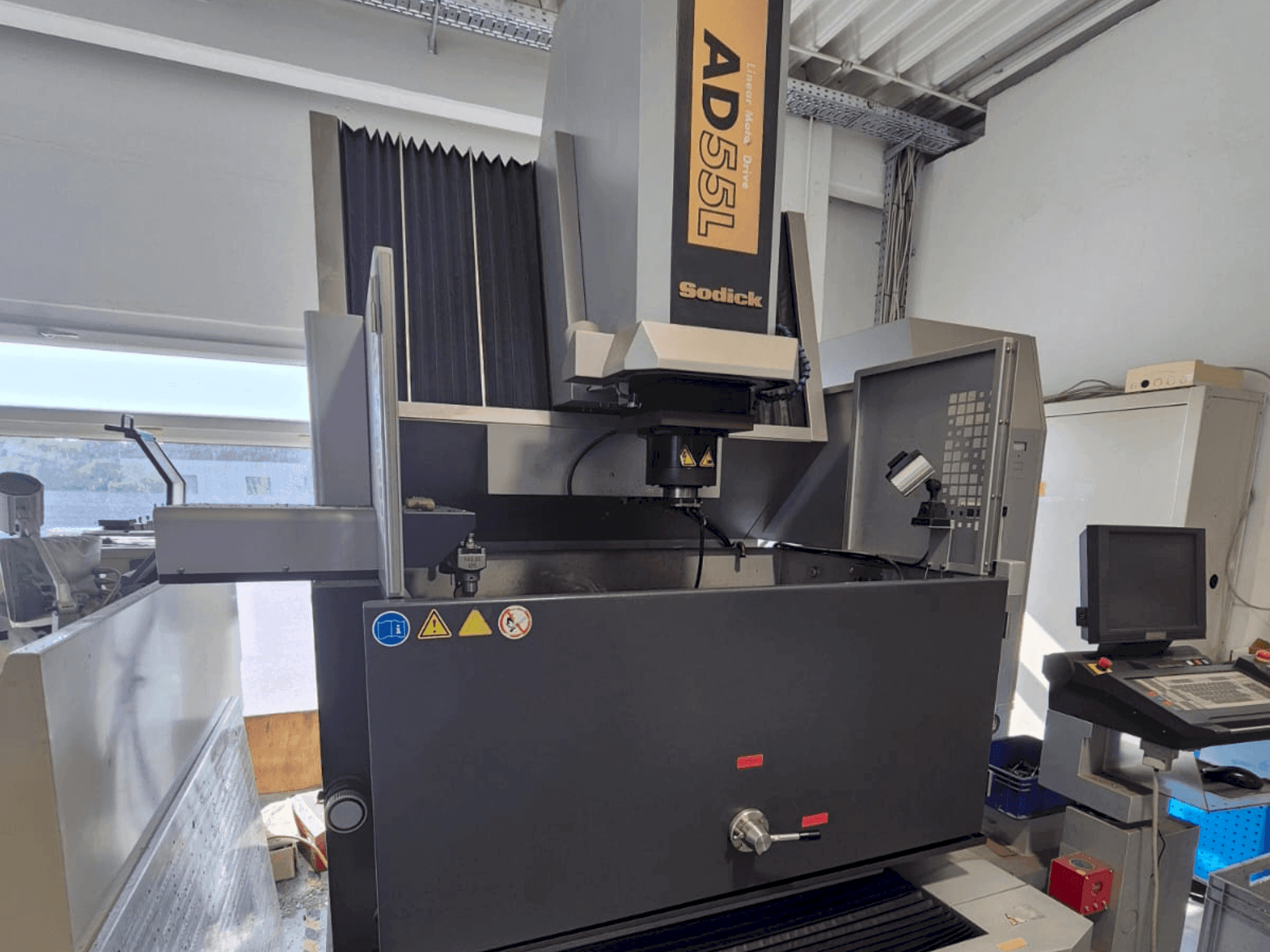

This Sodick AD 55 L die-sinking EDM machine was manufactured in 2016. It features a work tank with internal dimensions of 1200 x 800 x 500 mm and a capacity of 470 liters, supporting a maximum workpiece weight of 1000 kg. Equipped with a cooling unit for the linear motor, a C-axis, and a SGF generator unit, it offers robust performance for precision applications. Contact us for more information about this machine.

Overview

brand: Sodick
year: 2016
MODEL: AD 55 L
application type: EDM
Location: Germany
machine type: Die-Sinking EDM Machine

Technical Information - Sodick AD 55 L

Dimensions

Machine Depth: 2335 mm
Machine Height: 2635 mm
Machine Weight: 4020 kg

Movement

X-axis Travel: 600 mm
Y-axis Travel: 400 mm
Z-axis Travel: 400 mm

Additional Information

Additional equipment

Features: 10-year warranty on positioning accuracy, LN Professional, Cooling unit for linear motor, Glass scales (X, Y, Z axes), Remote control, USB port, Shuttle ATC, C-axis (SEC-10), SGF generator unit, 15" TFT touchscreen, Dielectric cooling unit, Automatic voltage stabilizer, Paper filters (2), Fire extinguisher, Mouse, LAN port, Work lighting

Machine Benefits

Technical Machine Benefits

Machine footprint (w x d): 3300 x 3535 mm
Work tank internal dimensions (w x d x h): 1200 x 800 x 500 mm
Work tank capacity: 470 l
Workbench size (w x d): 750 x 550 mm
Air flow: 100 nl/min
Power requirement: 3-phase 50/60hz, 10 kva

Extra Information

Machine operating times:

Machine switch-on time: 3089 hours

Machine processing time: 1488 hours

Accessories: 40 Erowa electrode holders

On request, copper rod material, various threads and rod electrodes are available at an additional cost at the current copper price.

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
