SMEC SL3000LM

Photo Gallery

SMEC - SL3000LMGB-TUR-SME-2019-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
SMEC SL3000LM Lathe

Show in original language

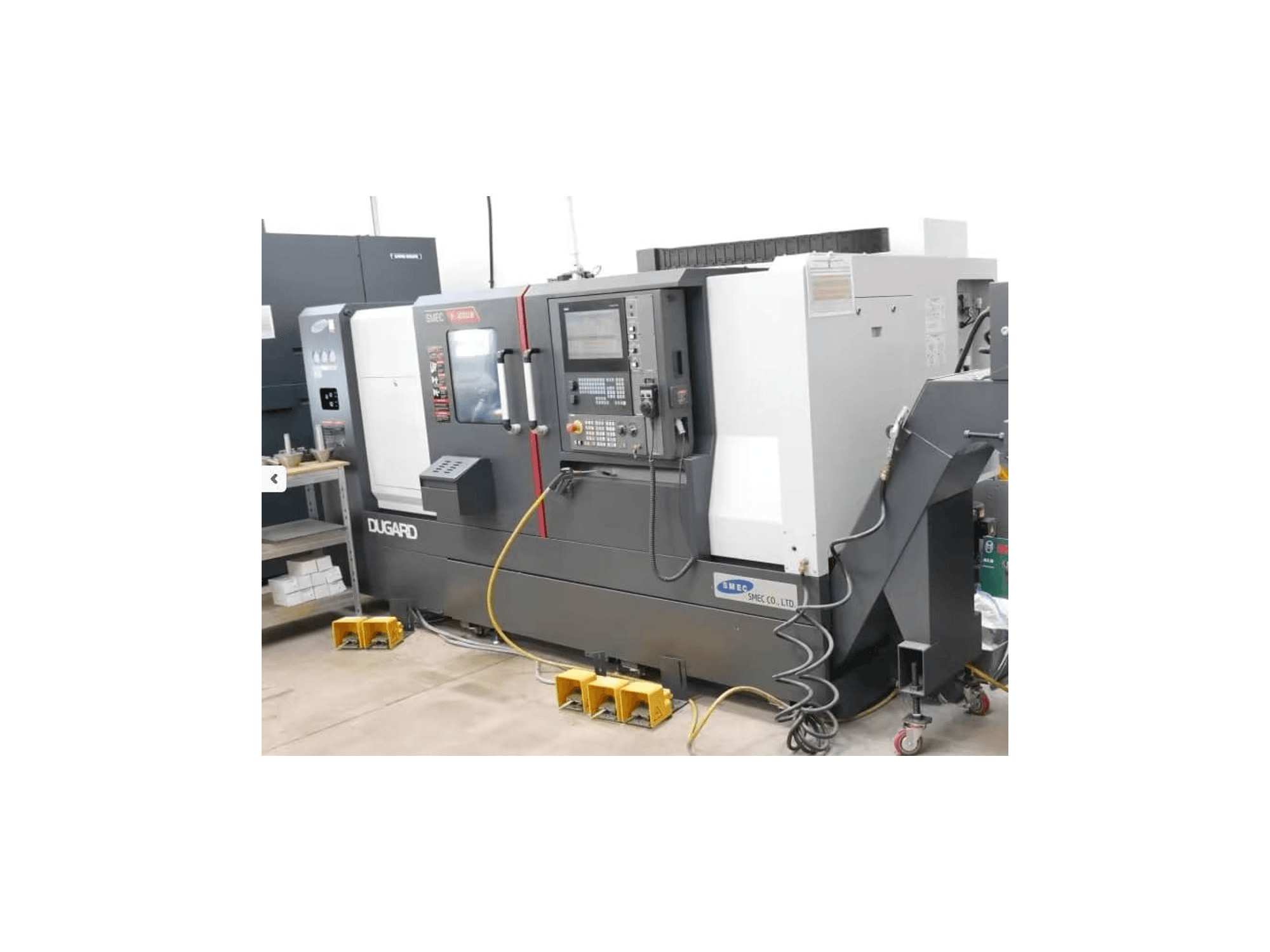

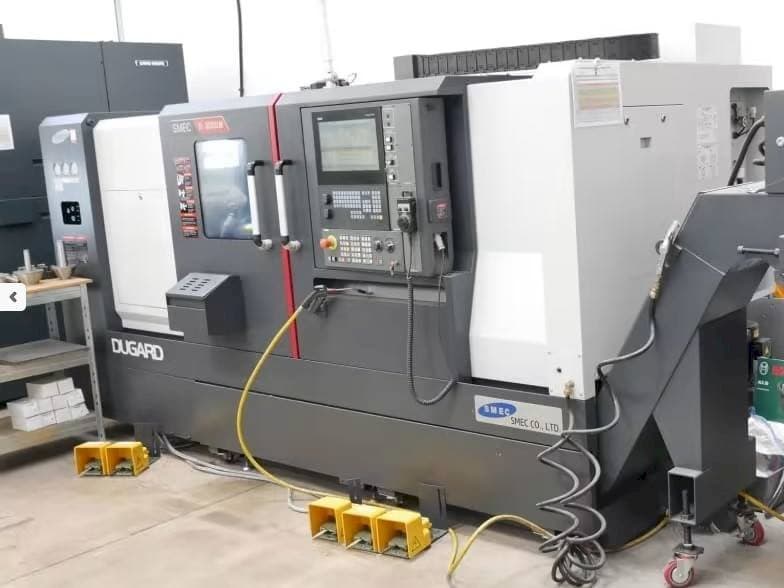

This SMEC SL3000LM Lathe was made in Korea in the year 2019. It has been on for 1641 hours, which 205 are cutting hours. This machine is operated through a SINUMERIK 828D control unit. It can works with a spindle speed up to 3000 rpm. It has additional options: static turning tool holders, boring bar holders, axial live milling holders and radial live milling toolholders.

Overview

brand: SMEC
year: 2019
MODEL: SL3000LM
production hours: 205
application type: Turning
Location: United Kingdom
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - SMEC SL3000LM

General Data

Machine weight: 6500 KG

Control Unit

Model: SINUMERIK 828D
Brand: SIEMENS

Main drive

Spindle speed range: 3000 1/MIN
Spindle bore: 91 mm

Movement

X-AXIS Movement: 245 mm
Z-AXIS Movement: 1040 mm

Turret

Number of turrets: 1
Number of tool slots: 12

Media

Main electronic connection: 220V / 60Hz
Power consumption: 41 kVA
Chip conveyor: Yes

Additional equipment

- 4 Static turning tool holders
- 4 Boring bar holders
- 2 Axial live milling holders
- 2 Radial live milling toolholders
- Additional hard jaws

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Electronic handwheel included
- - Max. Turning dia. : 405 mm
- - Max turning length: 956 mm
- - Main spindle motor: cont/30min - 18. 5 / 26 kw
- - Turret 1 rotary speed: 5000 rpm
- - Turret 1 motor: max cont - 3. 7 / 5. 5 kw
- - Chuck size - main: samchully hs-12 Ø310 mm power chuck
- - Tool presetting arm device
- - Parts catcher
- - Rittal electrical cabinet cooler
Qualitative Machine Benefits:
- - Hydraulic steady base & interface
- - Foot pedals
- - Signal tower

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
