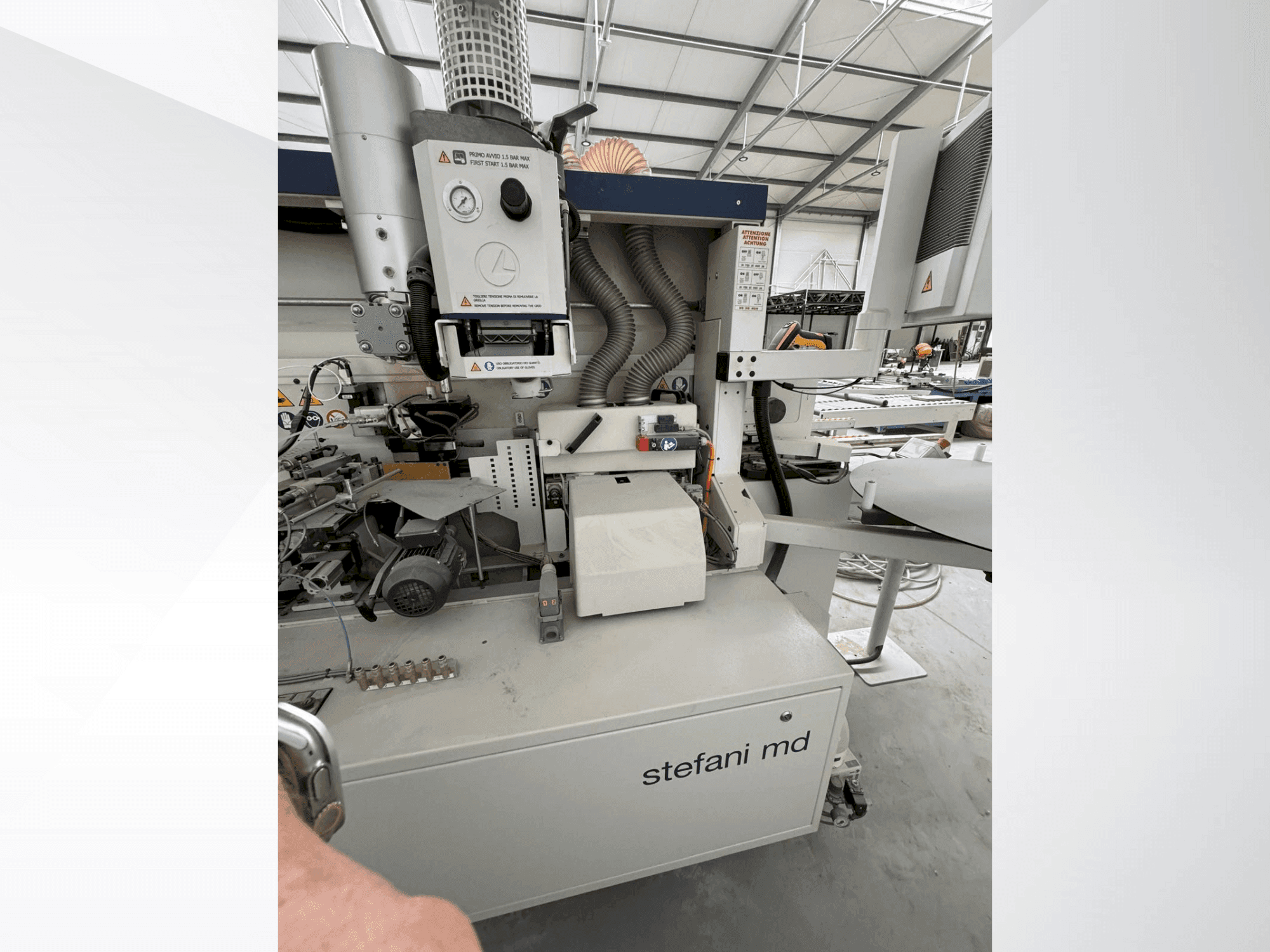

SCM - STEFANI MDPL-EDG-SCM-2021-00001

Additional equipment

• - Mobile Console with integrated PC"eye-M": 21.5" LCD color display through a 16/9 sized touch screen / AAR Anti-Adhesive Device: Positioned before panel edge trimming unit / Spray-Mist Device: Positioned for edge finishing and glue cooling / Loader for Narrow Pieces: Device to facilitate manual square loading of narrow pieces

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Variable track feed speed: 10 - 25 m/min / panel thickness: 10 - 60 mm / thickness of edges in strips: 0. 3-15 mm (22 mm with optional kit) / thickness of rolled edges: 0. 3-3 mm / max section of rolled edges: 135 mm / width of the magazine for edge in strips: 195 mm / max working speed with solid wood >6mm: 12 m/min / coil-holder plate diameter: 780 mm / exceeding material to the panel thickness: 2+3 mm / distance between two successive panels at 10 m/min: 600 mm / distance between two successive panels at 25 m/min: 700 mm / min panel length (100 mm min width): 140 mm / min length of edge in rolls: 170 mm / min length of edge in strips: 250 mm / min panel width (210 mm min length) with panel thickness up to 40 mm: 55 mm / with panel thickness from 41 to 60 mm: 80 mm /with edge thickness over 3 mm: 80 mm / opening for panel support roller: 600 mm / work table height: 950-980 mm
  • - “startouch” control system: 12” touch-screen colour display / graphical display of operating groups and status / graphic simulation for panel machining / 100 customisable working programs
  • - Operating speed: up to 25 m/min
  • - Rt-e premilling unit: max thickness removal: 3 mm/ motors power: 4 kw/ tool rotating speed: 9000 rpm
  • - Vc-s4. 1/qms-p” gluing unit: sgp gluepot: heating time from environment temperature: <10 min/ heating time from pre-heating temperature: <5 min /glue capacity: 0. 5 kg /installed power: 2. 05 kw
  • - Pre-melting unit: installed power: 1. 75 kw /glue capacity: 7 l /pre-melting capacity: 8. 5 kg
  • - Yu/sp750" end cutting unit: speed of cutters: 12000 rpm / ri/s" tiltable trimming unit: motors power: 1 kw /speed of cutters: 12000 rpm/roundsk rounding unit: max working speed: 18 m/min when rounding/ speed of cutters: 12000 rpm/ ras/1000" edge scraping unit: max working speed: 25 m/min
• Qualitative Machine Benefits:
  • - Versatility and high productivity: thanks to automatic machining units and high working speeds / use of eva and pur glues: for perfect joint lines/ european safety regulations compliance
  • - This edge-banding machine offers a range of advanced features and configurations, designed for high efficiency and quality machining.
