SCM - DMC SYSTEMPL-SAN-SCM-2021-00001

Name: SCM DMC SYSTEM
Brand: SCM
SKU: PL-SAN-SCM-2021-00001
Price: 10148050 INR
Availability: InStock

Rs. 10,148,050

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Wood Working
➤ Used SCM DMC SYSTEM Belt Sander For Sale | gindumac.com

Show in original language

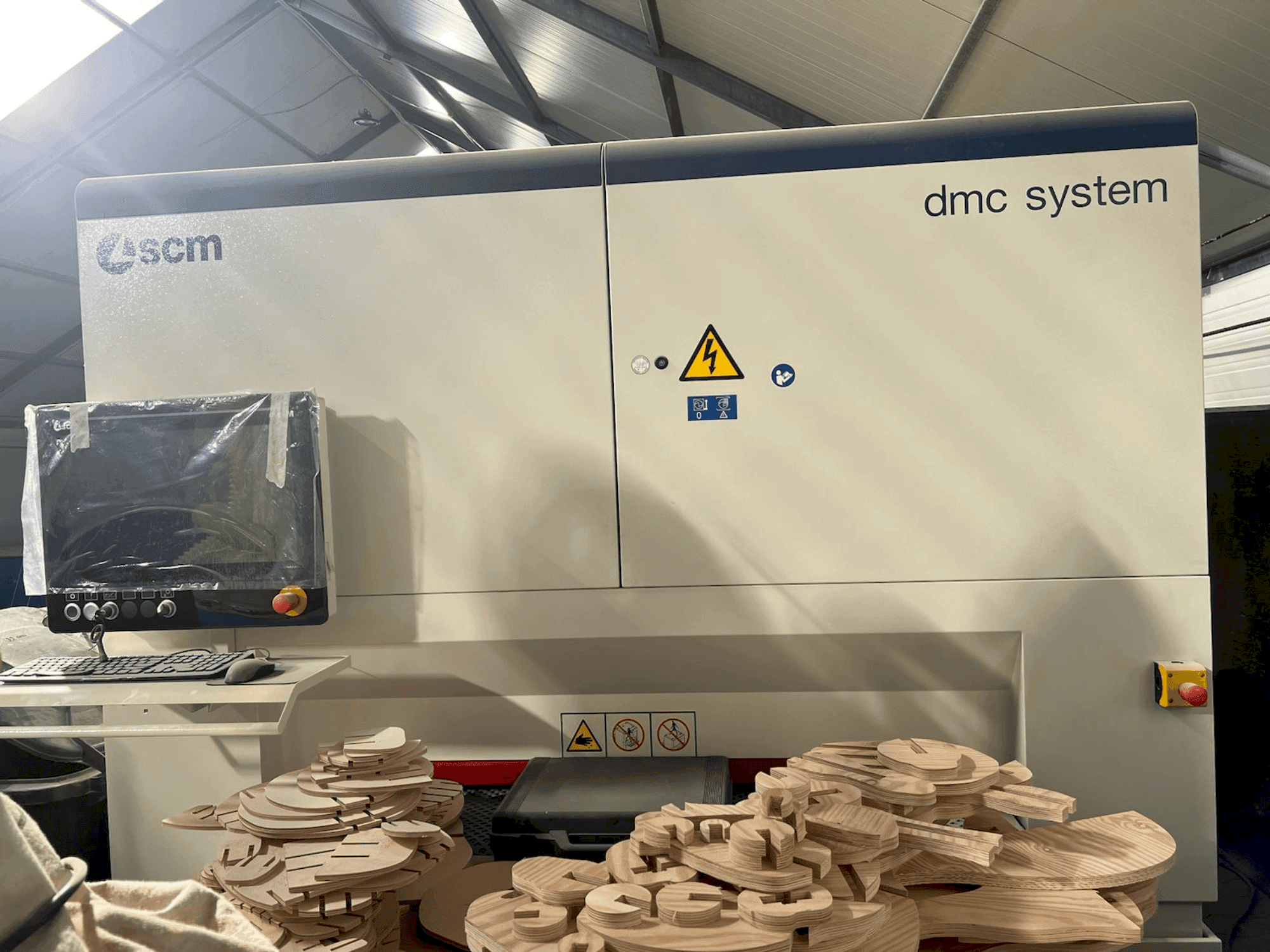

This SCM DMC SYSTEM belt sander was manufactured in 2021. It features a working width of 1,350 mm and belt feed speeds ranging from 2 to 16 m/min. Equipped with PRO SAND electronic control and a PLC terminal with a 10.4" LCD color display, it offers advanced user interface capabilities. The machine includes multiple working units for diverse sanding tasks and is powered by inverters for precise speed control. Contact us for more information about this machine.

Overview

brand: SCM
year: 2021
MODEL: DMC SYSTEM
application type: Sanding
Location: Poland
machine type: Belt Sander

Technical Information - SCM DMC SYSTEM

Additional equipment

- Vacuum Motor: Powered by inverter up to 7.5 kW integrated into machine frame / Conveyor: Rubber-coated belt conveyor 50 Shore / Feed Belt Motor: 4 kW driven by inverter / Console: Integrated with PC eye-M and Maestro Pro Sand electronic control, Tele Service system, 21.5" LED LCD color display
- Programs: 1999 Working Programs / Control System: Interactive troubleshooting, self-diagnosis, Full HD display with multi-touchscreen, Maestro Pro Sand software
- Operating Temperature: +5 to 35°C/ Additional Features: Virtual keyboard, production report, display of electric and pneumatic diagrams, user manual.

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Working width: 1350 mm / belt feed speed: 2 to 16 m/min / control: pro sand electronic control / display: plc terminal with 10. 4" lcd color display
- - Sanding belt dimensions: 150 x 5000 mm / chevron belt dimensions: 140 x 4710 mm; 1370 x 2186 mm
- - Aggregate 1: tie 5000 working unit for extra table internal cross pad / automatic brake, linear blower, sanding belt cleaning system / aggregate 2: do19 orbiting unit for 19 rotating disc brushes / main motor: 1. 1 kw / rotating disc diameter: 125 mm / aggregate 3 & 4: bf300 working unit for brush roller / brush roller diameter: 300 mm / motor: 4 kw / aggregate 5: sc 2620 operating unit for super-finishing pad / chevron belt dimensions: 1370 x 2186 mm / sanding belt dimensions: 1370 x 2620 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
