HEESEMANN - UKP 20DE-SAN-HEE-2016-00001

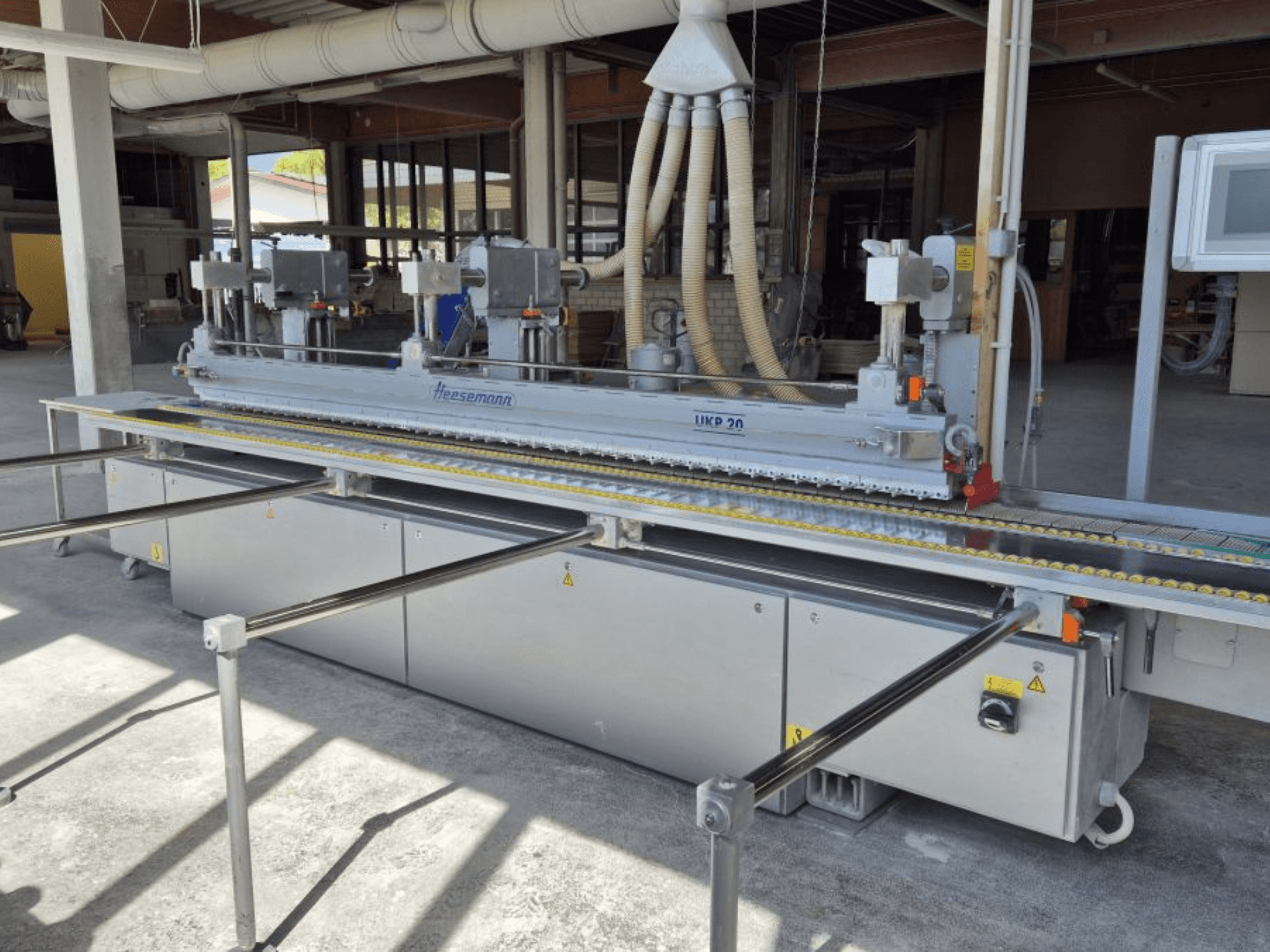

Workpiece conveyor system

• Total length: 5015 mm

• Drive: 1.5 kW three-phase motor, double chain transport

• Feed speed: 5–25 m/min, frequency-controlled

• Working height: 880 mm (constant)

• Integrated control cabinets

• Adjustable stop rail with digital display and counter rail with central width adjustment

• 4 side guide rollers between sanding units for safe strip transport

Control

• Industrial PC, 10.4" LCD-TFT touchscreen

• Production and downtime display

• Program memory for 100 programs

Sanding units

• 2 x belt sanding units “M4” (Positions 1 and 2)

  • Application: Straight edge sanding

  • Belt: 2300 x 80 mm

  • Speed: 0.7–12 m/s, stepless via electronic frequency control

  • Motor power: 3.0 kW

  • Electronic sanding pressure control from terminal

• 2 x oscillation units for “M4” (Positions 1 and 2)

  • Purpose: Full utilization of sanding belt

• 2 x belt sanding units “K4” (Positions 3 and 4)

  • Application: Small profile sections; chamfering

  • Swivel range: +90° upward / -45° downward

  • Belt break switch

  • Tool holder with quick-change mechanism

  • Intermittent belt feed mechanism

  • Belt: 2000 x 50 mm

  • Speed: 0.5–8 m/s, stepless via electronic frequency control

  • Motor power: 1.1 kW

  • Electronic sanding pressure control from terminal

Automation/line control

• 4 electronic line controls for fully automatic timing of tool contact/lift-off based on set feed rate, sanding pressure, and unit angle
