Samsung PL 60 LM

Photo Gallery

Samsung - PL 60 LMGB-TUR-SAM-2014-00001

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

Show in original language

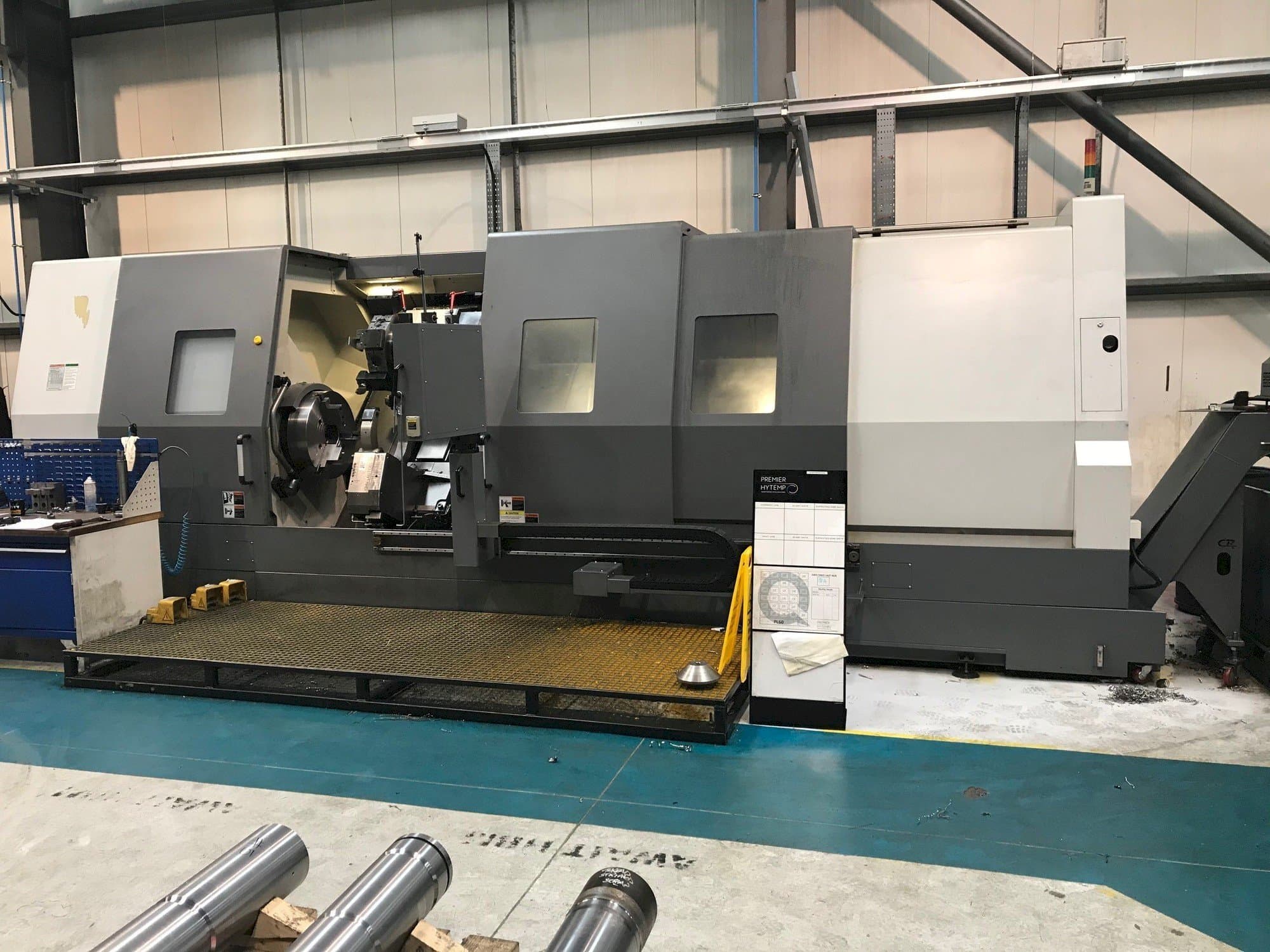

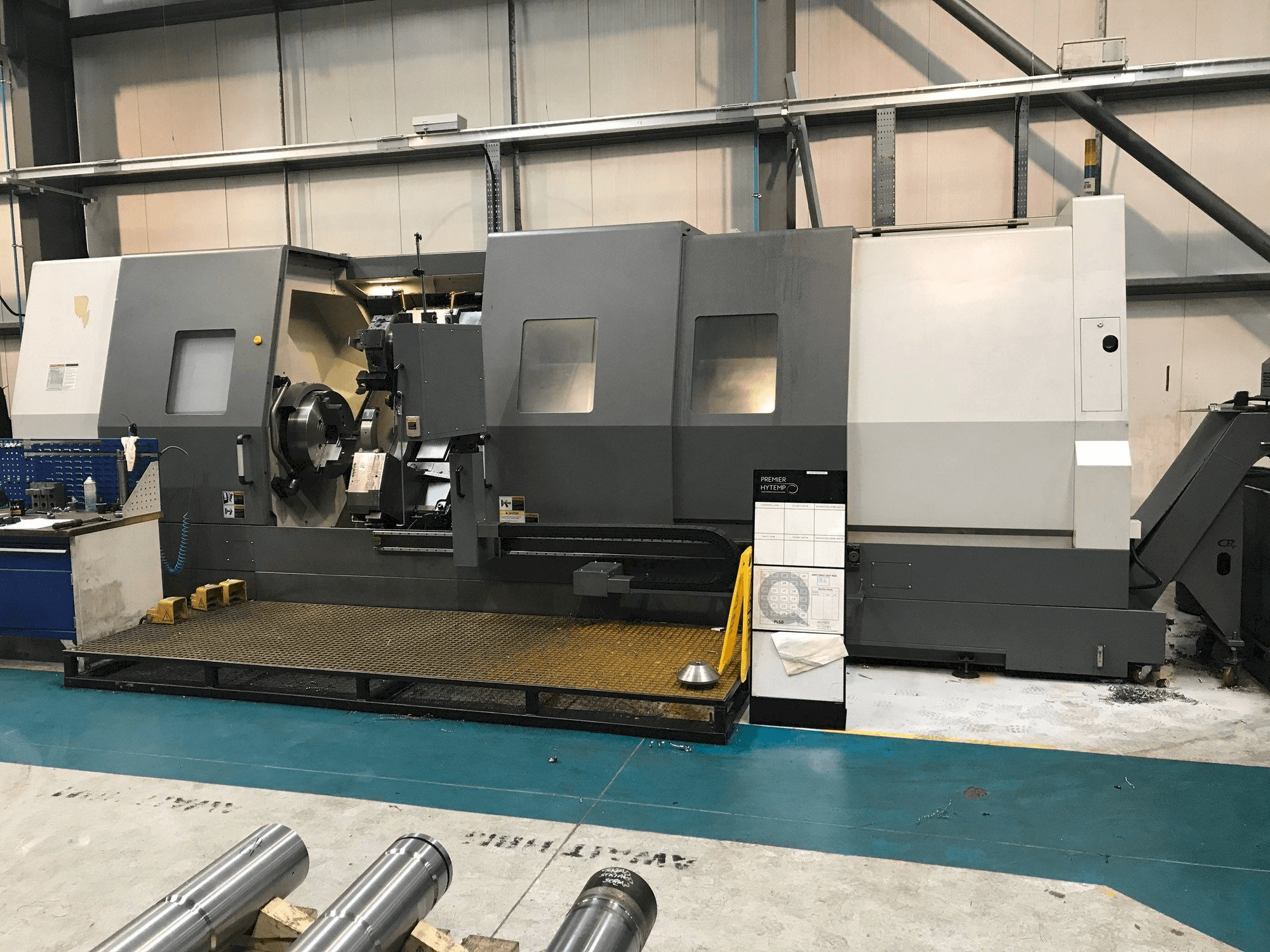

This Samsung PL 60 LM Lathe was built in South Korea in 2014. It has a record of 46802 hours, of which 6318 are cutting time and 1320 are running hours. This 3 axis machine is equipped with a FANUC Series oi-TD control unit. This lathe can work with a spindle speed up to 1500 rpm and a turning Length 3200 mm. As additional equipment a selection of driven tool holders is included. This machine is in very good condition.

Overview

brand: Samsung
year: 2014
MODEL: PL 60 LM
production hours: 46802
application type: Turning
Location: United Kingdom
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - Samsung PL 60 LM

Control Unit

Model: Series oi-TD
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 1500 1/MIN
Spindle motor power: 45.0 / 37.0 KW
Spindle bore: 152 MM
Number of axis: 3

Movement

X-AXIS Rapid traverse: 12 M/MIN
Y-AXIS Rapid traverse: 12 M/MIN

Turret

Number of turrets: 1

Tools

Slots in storage: 12

Media

Chip conveyor: Yes

Additional equipment

- Selection Of Driven Tool Holders, Axial & Driven Heads. (2 Off Each)
- Selection Of Static Tool Holders Including Capto C4. (8 Off In Total)

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Heavy duty 3-axis extended slant bed cnc lathe with c-axis, driven tools & bmt85p turret
- - Swing over bed 1030 mm, over carriage 800 mm
- - Max. Turning length 3200 mm
- - Distance between centres 3250 mm
- - Chuck diameter 24" - 610 mm
- - C-axis indexing 0. 001 degree
- - Bar capacity 139. 5 mm
- - 3 jaw hydraulic chuck, diameter 24” with hard & soft jaws, smw autoblok hydraulic steady model k5- msw with capacity 80 ~ 390 mm, heavy duty programmable tailstock, tool setting arm
Qualitative Machine Benefits:
- - Machine in very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
