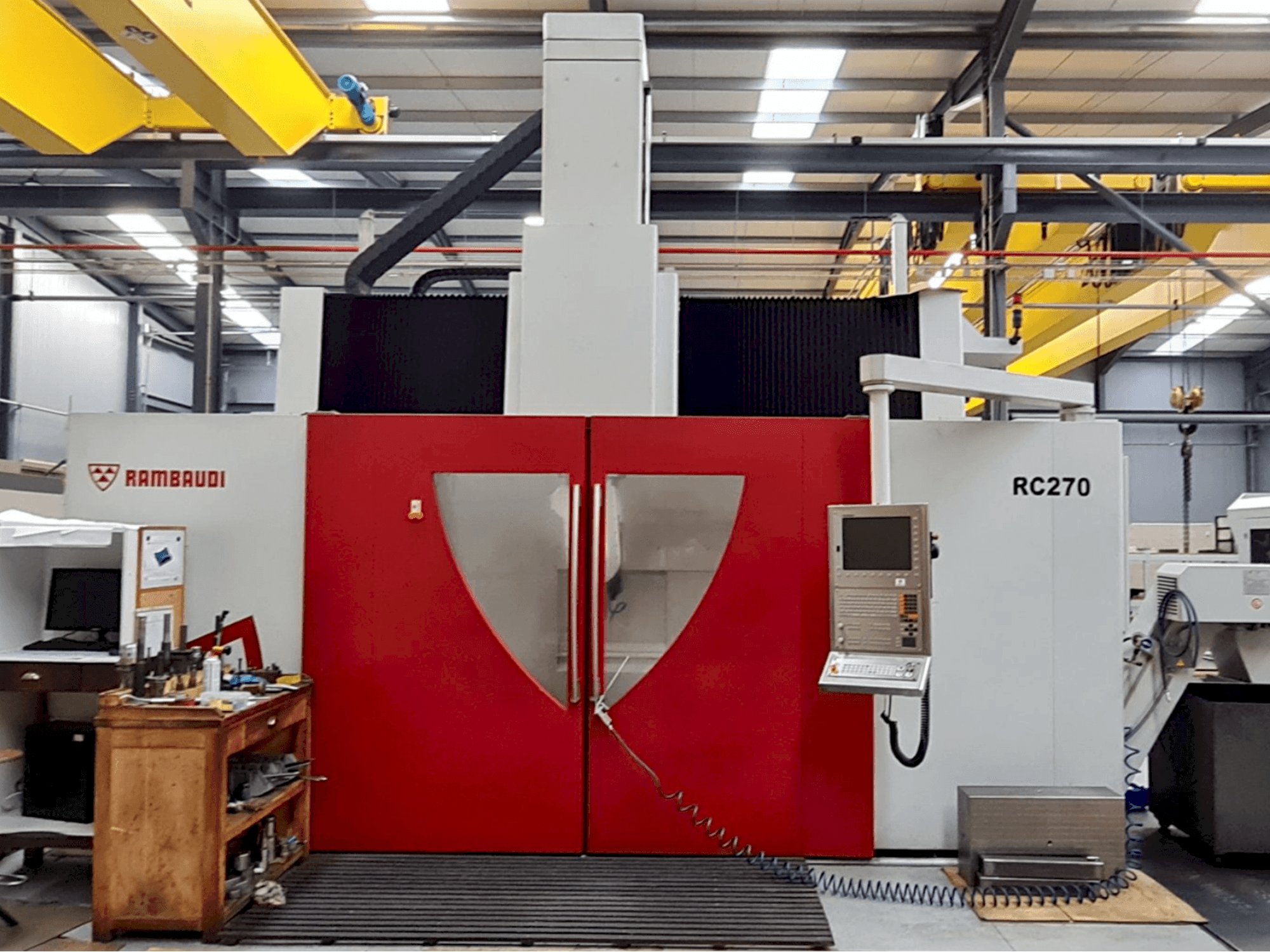

Front view of Rambaudi RC 270  machine

Rambaudi - RC 270PT-MIL-RAM-2014-00002

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Rambaudi RC 270 Vertical Machining center was manufactured in the year 2014. It is equipped with a HEIDENHAIN iTNC 530 HSCI control unit and has 5 axis. The spindle speed is at 24000 rpm and runs with a HSK-A63 tool taper. The machine has operated 38428 power on hours and 23655 cutting hours. It stands out for its movable crossbeam which makes the machining centre suitable for high-speed machining with 5 axes. See photo and video gallery for more impressions. Extract of original tech specs (EN) attached as PDF below.

Overview

  • brand: Rambaudi
  • year: 2014
  • MODEL: RC 270
  • production hours: 23655
  • application type: Milling
  • Location: Portugal
  • machine type: Vertical Machining Centre
  • availability: Sold
  • control unit brand: Heidenhain

Technical Information - Rambaudi RC 270

Control Unit

  • Brand: Heidenhain
  • Model: iTNC530 HSCI

Main drive

  • Spindle speed range: 24000 rpm 1/MIN
  • Tool taper: HSK-A63
  • Number of axis: 5

Movement

  • X-AXIS Movement: 2700 mm
  • Y-AXIS Movement: 2200 mm
  • Z-AXIS Movement: 1250 mm

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - X and x1 = 2200 mm // speed: 40 m/1' // longitudinal translation of the crossbeam on 2 columns
      • - Y = 2700 mm // speed: 40 m/1' // transversal translation of the ram holder cross saddle on the crossbeam
      • - Z = 1250 mm // speed: 40 m/1' // vertical translation of th eram on the cross saddle
      • - C continous = 400 (+/- 200 °) // rotation of the head around the ram vertical axis
      • - A continous = 230 ° (+ 120 °, -110 °) // rotation of the electrospindle support inside the head fork
      • - Precision of linear machine axes (x, x1, y, z): p = 0. 015 mm / transducer optical line
      • - Precision of polar machine axes (c,a): 15 arc sec - repeatability 10 arc sec / transducer encoder
      • - Torque: c, a continous = 1000 nm // c, a braked = 4000 nm
    • Qualitative Machine Benefits:
      • - Numeric control milling centre with movable crossbeam, suitable for high-speed machining with 5 axes
      • - Two lateral columns on which crossbeam runs
      • - A crossbeam that supports the ram holder cross saddle and slide on the columns
      • - A ram that slides vertically inside the cross saddle
      • - A head fixed to the lower part of the ram
      • - A working table in the center of the columns, with the following characteristics: 2500 x 2000 mm // 10000 kg/m2 // 300 mm thickness of cast iron table // 8 t-slots - width 28mm
      • - The machine is equipped with a 2-axis glob 89 g milling head (c and a continous)
      • - Inside of the head forks is housed the spindle with 24000 rpm, hsk-a 63 tool taper

    Extra information

    • - 38428 machine on hours // 23655 cutting hours

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
