Quaser - MV184P/12BNL-MIL-QUA-2013-00001

Rs. 5,022,359
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

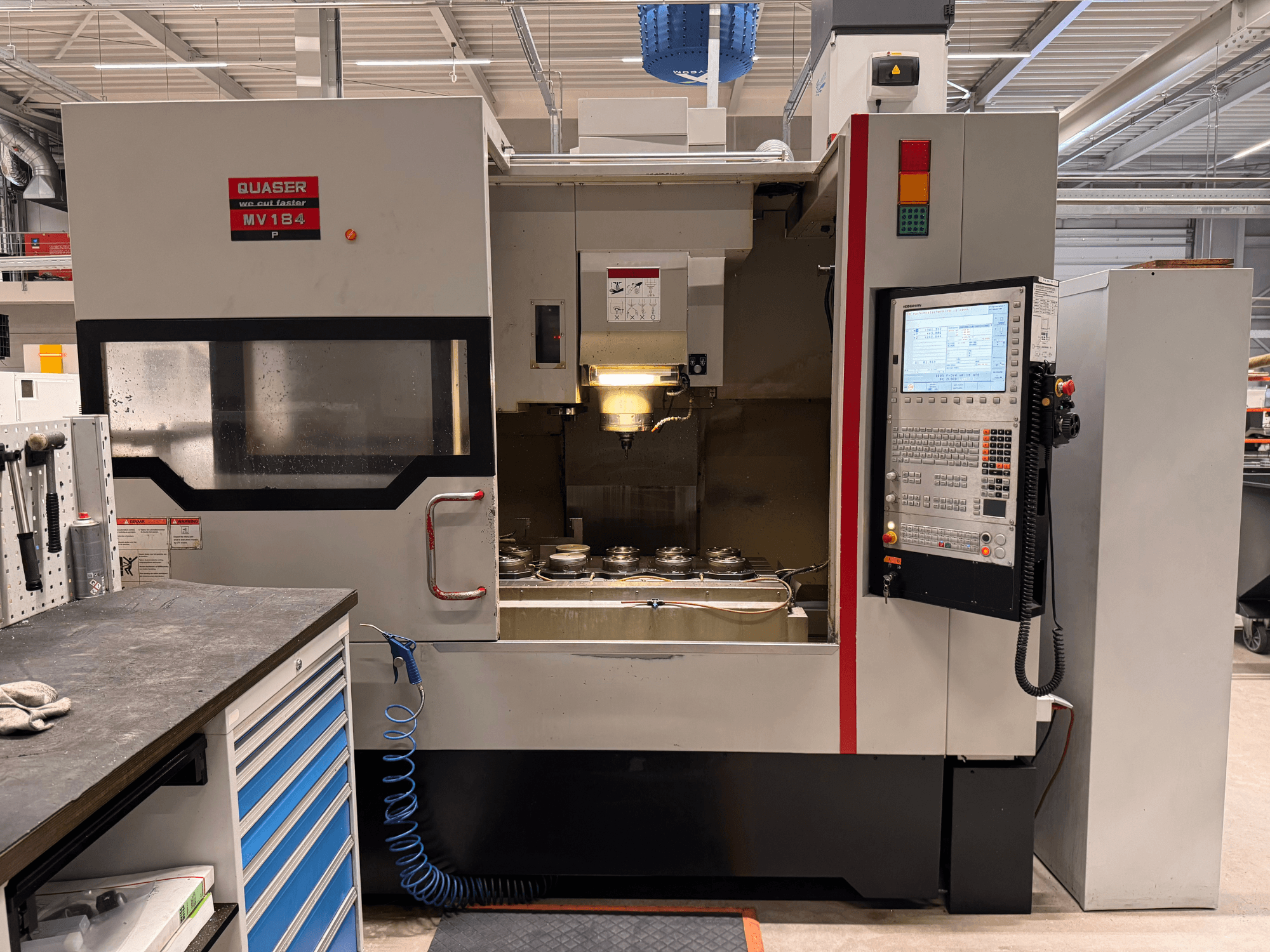

This 4-axis Quaser MV184P/12B was manufactured in 2013. It features a maximum spindle speed of 12,000 rpm and a powerful 25 kW motor. The machine includes a NC rotary table, tailstock, and advanced probing systems for enhanced precision. If you are looking to get high-quality machining capabilities, consider the Quaser MV184P/12B vertical machining centre we have for sale. Contact us for further details.

Overview

  • brand: Quaser
  • year: 2013
  • MODEL: MV184P/12B
  • production hours: 10953
  • application type: Milling
  • Location: Netherlands
  • machine type: Vertical Machining Centre
  • control unit brand: HEIDENHAIN

Technical Information - Quaser MV184P/12B

Control Unit

  • Control Brand: HEIDENHAIN
  • Control Model: iTNC530

Movement

  • Number of Axes: 4
  • X-axis Travel: 1020 mm
  • Y-axis Travel: 600 mm
  • Z-axis Travel: 610 mm

Technical Specification

  • Spindle Power: 25 kW
  • Spindle Speed: 12000 RPM

Additional Information

  • It seems that a power module from Heidenhain is not working properly.

  • Max. torque: 159 Nm

Additional equipment

  • Tool cooling 20 bar (upgrade from 8 bar) – included

  • Cartridge filter for nozzle and flushing system – included

  • NC rotary table (4th axis) Detron GV255HB with tailstock – included, remains with the machine

  • Infrared workpiece probe Blum TC50 – included, remains with the machine

  • Laser tool probe Blum N2 – included, remains with the machine

  • Portable handwheel (instead of standard fixed handwheel) – included

  • SEI CMC 2000-KP incl. Sensor J for control – included

  • Schunk zero-point clamping system – not included

  • External extraction system next to the machine – not included

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
