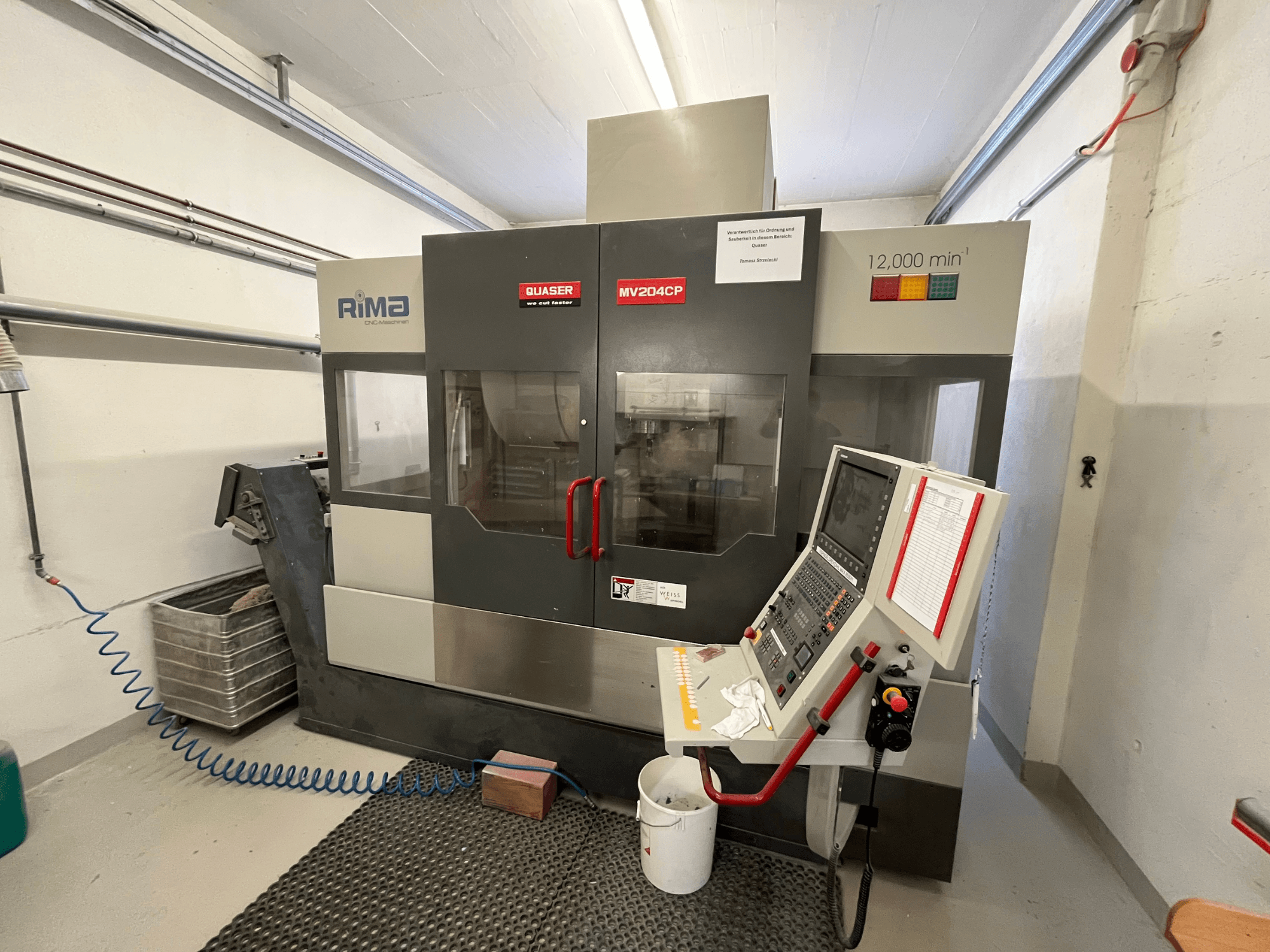

Quaser MV-204 CP vertical machining centre from a front view, displaying control panel and operational details.
Quaser MV-204 CP vertical machining centre from a front view, displaying control panel and operational details.

Quaser - MV-204 CPCH-MIL-QUA-2007-00001

Rs. 1,852,633
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis Quaser MV-204 CP vertical machining centre was manufactured in 2007. It features a working area with X-axis travel of 1200 mm, Y-axis travel of 700 mm, and Z-axis travel of 610 mm. The machine includes a robust table size of 1400 x 700 mm and a maximum table load capacity of 1800 kg. If you are looking to get high-quality milling capabilities, consider the Quaser MV-204 CP machine we have for sale. Contact us for further details.

Overview

  • brand: Quaser
  • year: 2007
  • MODEL: MV-204 CP
  • production hours: 8400
  • application type: Milling
  • Location: Switzerland
  • machine type: Vertical Machining Centre
  • control unit brand: HEIDENHAIN

Technical Information - Quaser MV-204 CP

Control Unit

  • Control Brand: HEIDENHAIN
  • Control Model: iTNC 530

Dimensions

  • Machine Height: 2880 mm
  • Machine Weight: 9100 kg
  • Machine Width: 3680 mm
  • Table Load: 1800 kg

Movement

  • Number of Axes: 3
  • X-axis Travel: 1200 mm
  • Y-axis Travel: 700 mm
  • Z-axis Travel: 610 mm

Technical Specification

  • Spindle Power: 30 kW
  • Spindle Speed: 12000 RPM
  • Taper Size: BT 40

Additional Information

  • Machine table: 1400 x 700 mm

  • T-slots: 6; width 18 mm; spacing 100 mm

  • Distance table to spindle nose: 150–760 mm

  • Spindle type: WEISS WB-40R

  • Spindle torque: 192 Nm

  • Tool changer: 30 positions

  • Utilities: compressed air 6 bar; voltage 400 V; mains fuse 63 A; connection cable cross-section 4 x 16 mm²

  • Usage/condition notes:

    • Spindle collision in 2018; spindle functions for plastics, but spindle condition should be assessed

    • Machine out of operation for approximately 6 months due to new purchase

    • Spindle hours: 8,400

Additional equipment

  • Coolant system with 600-liter tank

  • Chip conveyor

  • Heidenhain handwheel HR410

  • Various milling chucks

  • Haimer shrink-fit chuck

  • Slimline base holder for DuoBlock

  • Various collet base holders (without collets)

  • Albrecht drill chuck

  • Haimer dial gauge

  • Complete machine documentation

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
