POSmill E1100

Photo Gallery

POSmill - E1100AT-MIL-POS-2013-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used POSmill E1100 For Sale | gindumac.com

Show in original language

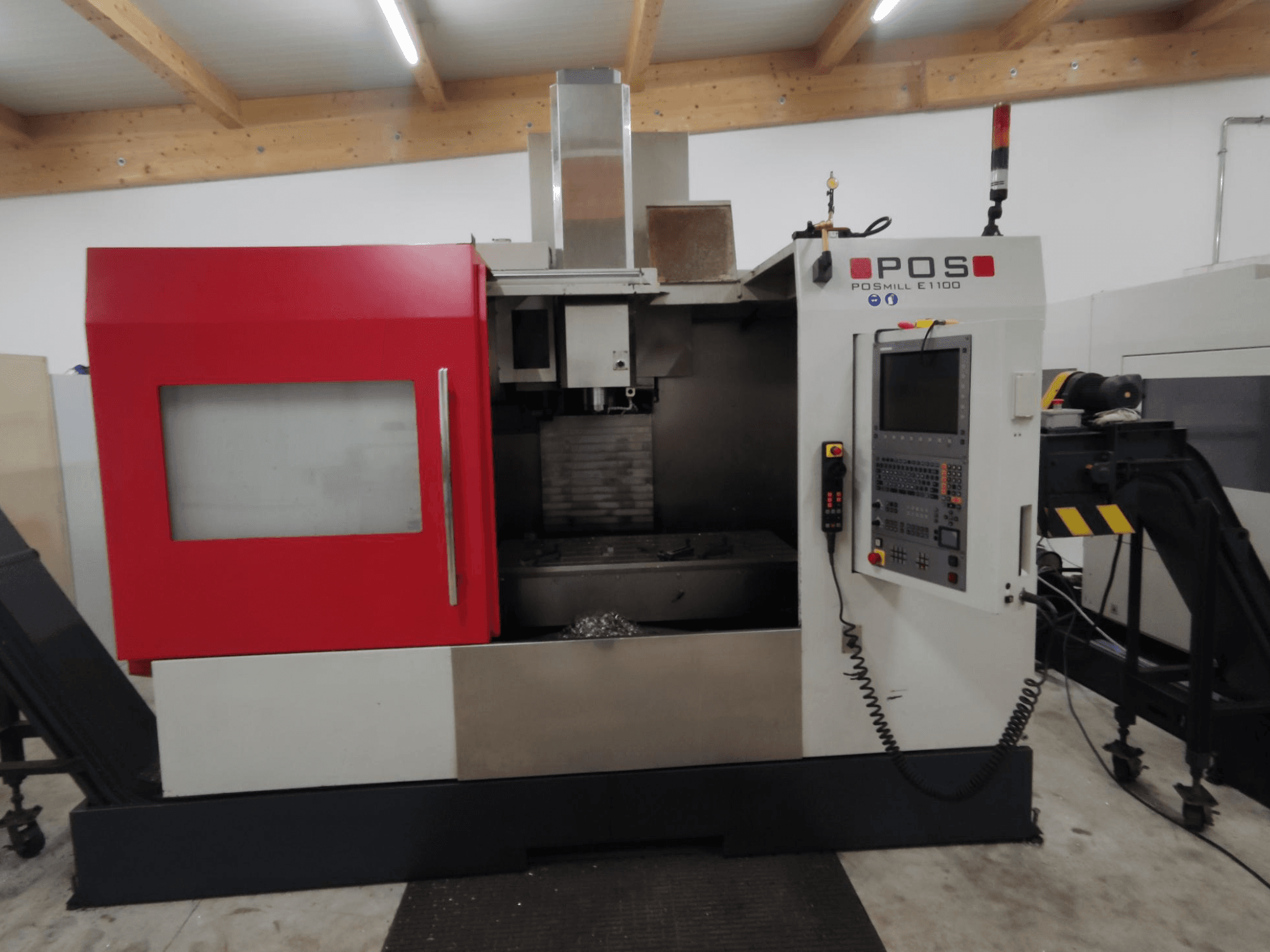

This 3-axis POSmill E1100 was manufactured in 2013 and features a robust iTNC 530 control unit by HEIDENHAIN. It boasts a spindle speed of 10,000 RPM and a motor power of 25 kW. The machine offers X, Y, Z travels of 1100 mm, 600 mm, and 510 mm respectively, and supports a table load of 1000 kg. Consider the opportunity to buy this POSmill E1100 vertical machining centre. Contact us for more information about this machine.

Overview

brand: POSmill
year: 2013
MODEL: E1100
production hours: 7845
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - POSmill E1100

Control Unit

Control Brand: HEIDENHAIN
Control Model: iTNC 530

Dimensions

Machine Height: 3800 mm
Machine Length: 4300 mm
Machine Weight: 8500 kg
Table Load: 1000 kg

Movement

Number of Axes: 3
X-axis Travel: 1100 mm
Y-axis Travel: 600 mm
Z-axis Travel: 510 mm

Technical Specification

Max. Tool Weight: 8 kg
Spindle Power: 25 kW
Spindle Speed: 10000 RPM

Additional Information

Worktable: 1300 x 600 mm; spindle-to-table distance 120–630 mm
Tool magazine: 40 slots; max tool length 300 mm; tool holder ISO 40; tool changer TC40
Measurement: Linear measuring system on X, Y, Z
Safety/operation: Protective enclosure; Plexiglas hinged band; tool change door locking operation; tool change protection
Dimensions (with chip conveyor and coolant tank): 4.30 m x 3.80 m x approx. 3.80 m

Additional equipment

Chip conveyor
Internal coolant supply (20 bar) with belt filtration system
Mechanical coolant separator
Wash-down system and water gun
Workpiece measurement system 25 HDR
Lamella belt clamping device

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
