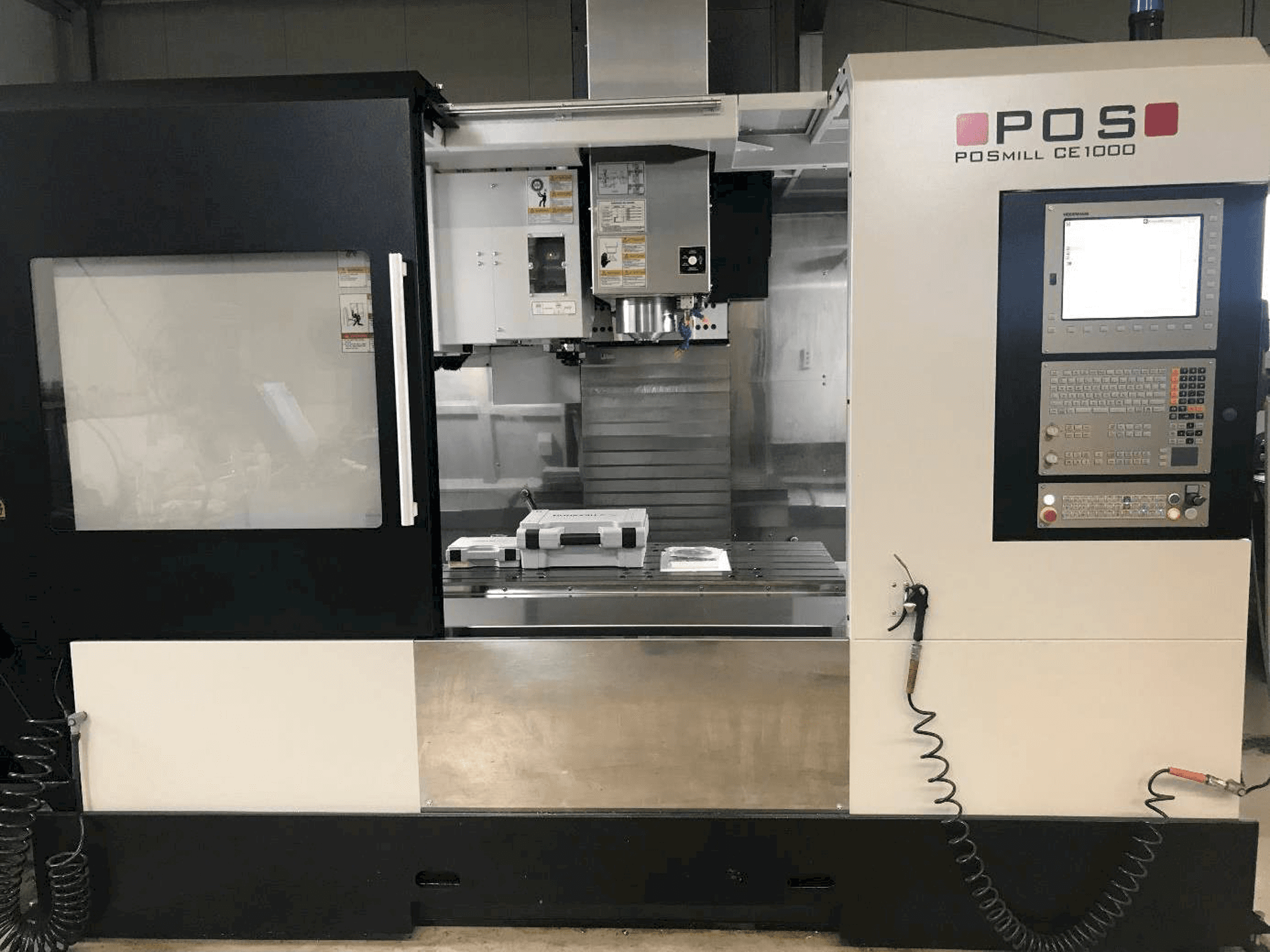

Front view of POSmill CE 1000  machine

POSmill CE 1000

POSmill - CE 1000

2021

Rs. 9,323,650

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This POSmill CE 1000 Milling machine was manufactured in the year 2021 and has around 400 spindle hours. It is equipped with a HEIDENHAIN TNC640 control unit and has 3 axis. The machine has a spindle speed of 10000 rpm.

Overview

  • brand: POSmill
  • year: 2021
  • MODEL: CE 1000
  • production hours: 400
  • application type: Milling
  • Location: Germany
  • machine type: Milling Machine
  • availability: Immediately
  • control unit brand: HEIDENHAIN
  • GINDUMAC ID: DE-MIL-POS-2021-00001

Technical Information

Control Unit

  • Brand: HEIDENHAIN
  • Model: TNC640

Main drive

  • Spindle speed range: 10000 1/MIN
  • Tool taper: ISO 40 for IKZ
  • Number of axis: 3

Movement

  • X-AXIS Movement: 1060 mm
  • Y-AXIS Movement: 600 mm
  • Z-AXIS Movement: 600 mm

Table

  • Outer length: 1200 mm
  • Outer width: 600 mm

Tools

  • Slots in storage: 40

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - System 20 bar with belt filter
      • - Air through spindle
      • - Large chip conveyor to the left (hinged belt)
      • - Glass scales incl. Sealing air from heidenhain
      • - Tool measuring system hexagon wireless
      • - Workpiece measuring system hexagon optical
      • - Incl. Accessories such as vice and sk40 holders.
      • - Active control cabinet cooler air
      • - Network connection
      • - Usb connection-
    • Qualitative Machine Benefits:
      • - Absolutely well-maintained
      • - As new condition.
      • - Spindle cooler controlled
      • - Side windows left and right with hinges
      • - Pump for coolant at the head by m-functions
      • - Pump for chip wash-off device by m-functions
      • - Chip wash-off device, control cabinet preparation for 4th and 5th axis (performance-related
      • - Water gun, air gun
      • - Air at the spindle, coolant at the spindle
      • - Operating status light, oil separator electromechanical

    Extra information

    • - Machines is prepared for the connection of a 4th and 5th axis

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
