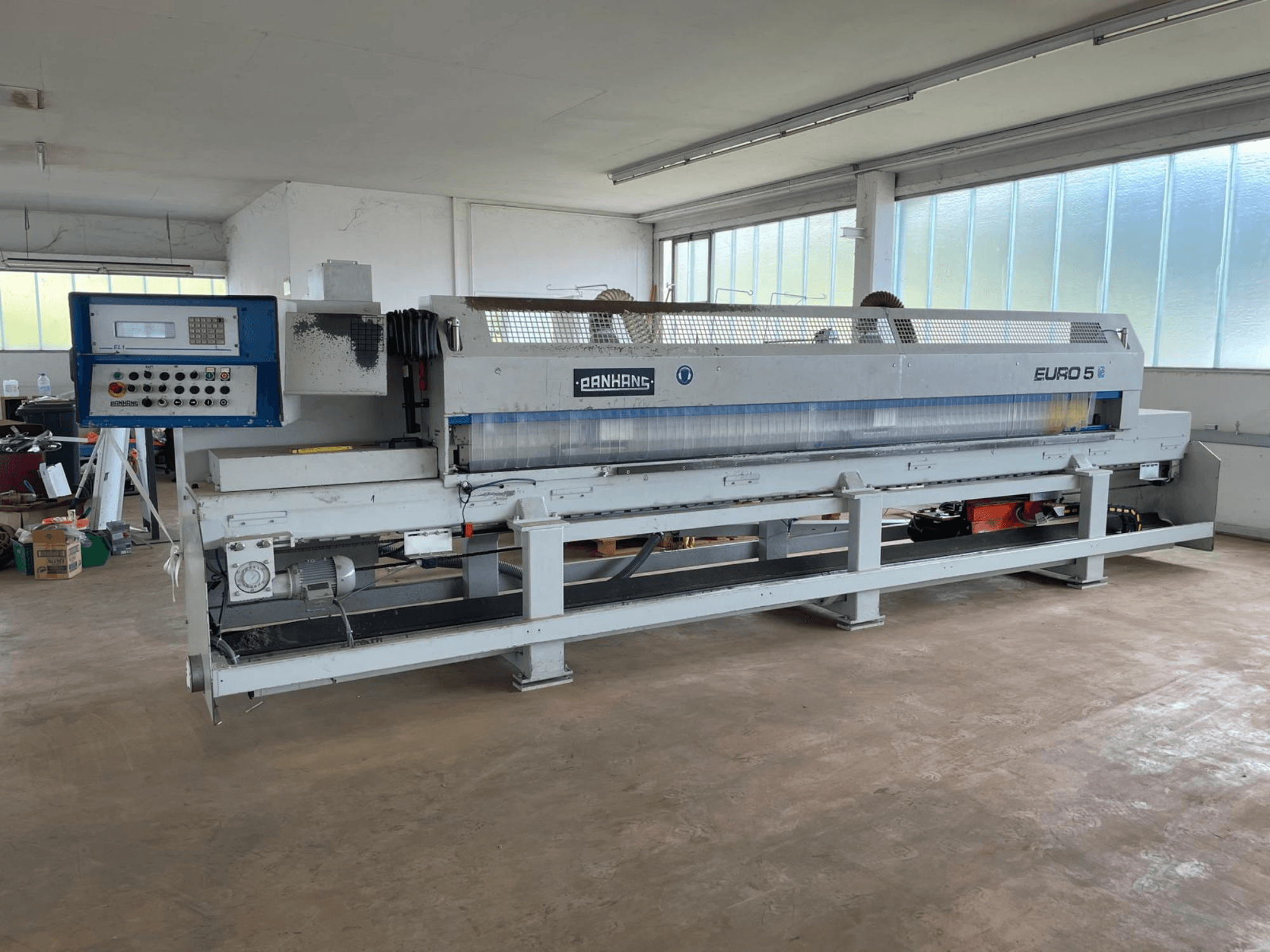

Panel sizing and solid wood saw manufactured in 1999. This PANHANS 693 / EURO 5 features a maximum cutting width of 4200 mm and is equipped with an air cushion table for enhanced efficiency. The machine includes a main saw, scoring saw, and automatic feed system. If you are looking to get high-quality panel cutting capabilities, consider the PANHANS 693 / EURO 5 machine we have for sale. Contact us for further details.
Overview
- brand: PANHANS
- year: 1999
- MODEL: 693 / EURO 5
- application type: Sawing (Wood)
- Location: Germany
- machine type: Panel Saw
Additional Information
PANHANS 693 / EURO 5
Machine Type: Panel Sizing and Solid Wood Saw
Nominal Voltage: 400 V
Current Type: 3-Phase AC
Operating Current: 34 A
Frequency: 50 Hz
Control Voltage: 24 V AC/DC
Back-up Fuse: 35 A
Maximum Pneumatic Pressure: 8 bar
Control Unit Brand: ELINDE
Control Unit Model: EL1
Electrical Components
Feed Drive: Lenze
Rip Fence Servo Drive: Lenze
Safety Relay: Pilz
Power Supply: Siemens SITOP PSU100S
Machine Functions
Main Saw
Scoring Saw
Feed Drive
Rip Fence Servo System
Automatic Feed
Rip Fence
Additional Information
Machine was only lightly used
Equipped with new Siemens control boards
Maximum Cutting Width: 4200 mm
Air Cushion Table
New Spare Saw Blade
Condition: Good
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
