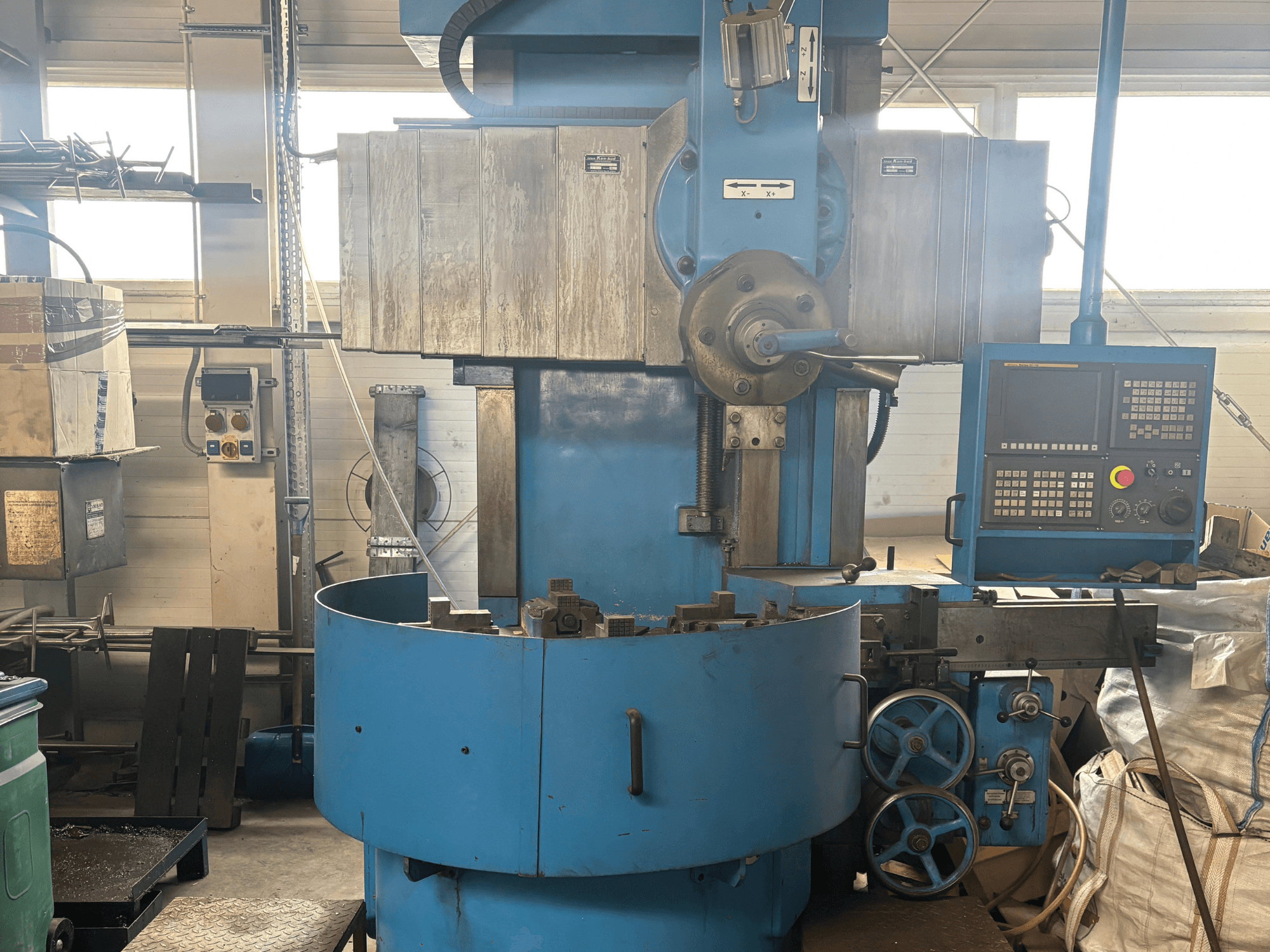

This DEFUM KNA-110 S0 vertical turning machine was manufactured in 2016. It features a maximum swing with upper support of 1350 mm and a table diameter of 1100 mm, supporting workpieces up to 4000 kg. The table speed range is 6.3–200 rpm with 16 speed steps. Main motor power is 30 kW. If you are looking to get high quality turning capabilities consider the DEFUM KNA-110 S0 machine we have for sale. Contact us for more information.
Overview
- brand: Other
- year: 2016
- MODEL: DEFUM KNA-110 S0
- application type: Turning
- Location: Poland
- machine type: Vertical Turning Machine
- control unit brand: FANUC
Technical Information - Other DEFUM KNA-110 S0
Control Unit
- Control Brand: FANUC
- Control Model: Series 0i-TD
Dimensions
- Machine Height: 3100 mm
- Machine Length: 2750 mm
- Machine Weight: 11000 kg
Movement
- Number of Axes: 2
Technical Specification
- Spindle Power: 30 kW
Additional Information
Capacities:
Maximum swing with upper support: 1350 mm
Maximum swing with side support: 1100 mm
Maximum turning diameter: 950 mm
Table:
Diameter: 1100 mm
Maximum workpiece weight: 4000 kg
Speed range: 6.3–200 rpm
Number of speed steps: 16
Distance from floor to table surface: 955 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
