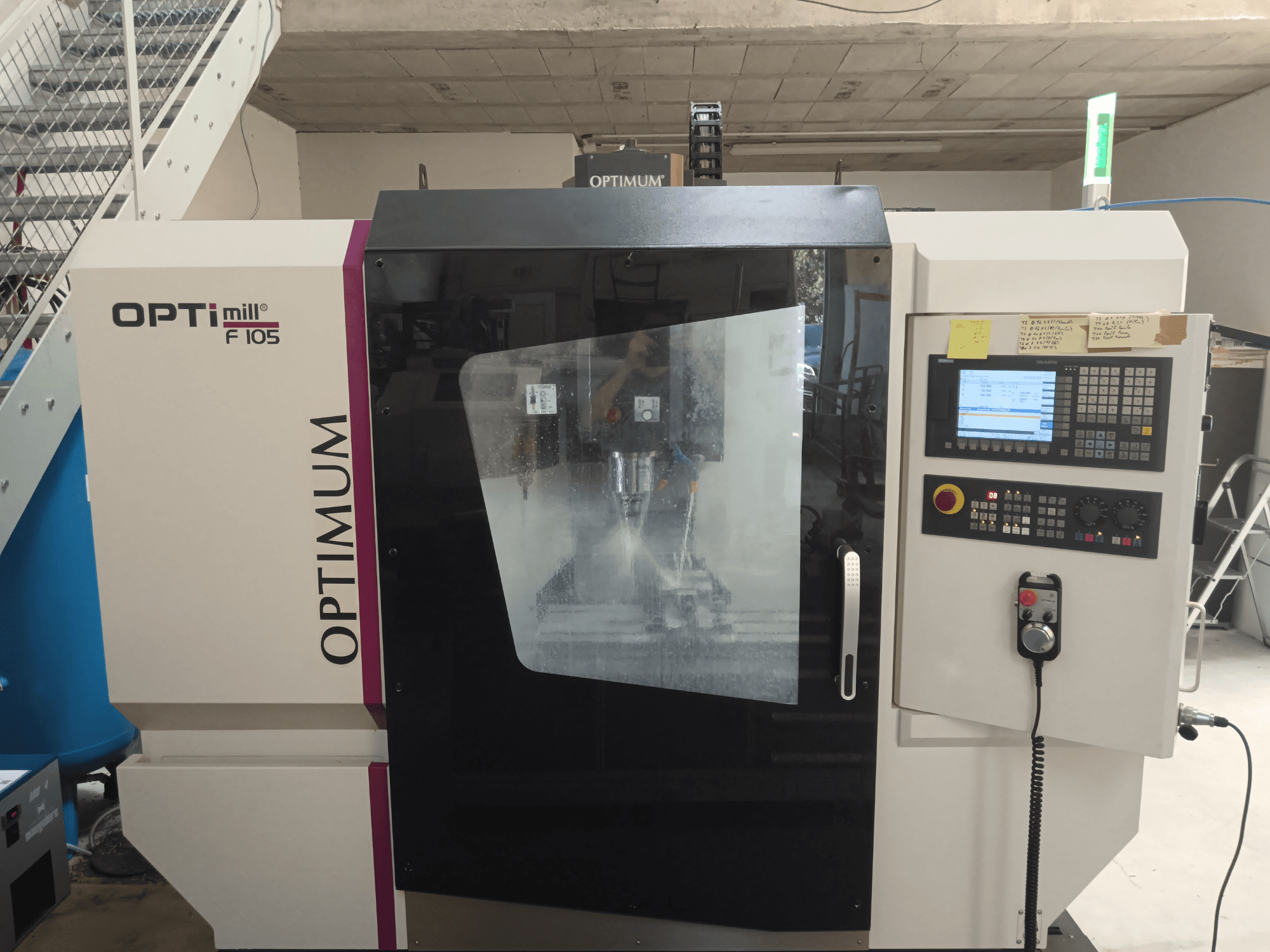

Optimum - Optimill F 105 FR-MIL-OPT-2023-00001

Electrical connection: 3 x 400 V ~ 50 Hz, 15 kVA

Spindle:

• Power S1: 7.5 kW

• Power S6-30%: 11 kW

• Torque S1: 48 Nm

• Torque S6-30%: 70 Nm

Lubrication / coolant system:

• Coolant pump power: 650 W

• Tank capacity: 120 L

Compressed air:

• Min. connection: 0.6 MPa (6 bar)

• Air consumption: 0.1 – 0.15 m³/h at 0.6 MPa

• Recommended air quality: ISO 8573.1 class 2

• Air consumers: tool changer forward/backward; tool clamp/unclamp; optional rotary table clamping

Compressed air service unit:

• Drainage filters: 40 μm

• Housing: Polycarbonate

• Max. pressure: 1.5 MPa

• Recommended oil: ISO VG32

• Lubricator quantity: 90 ml

• Dewatering: manual

• Air connection thread: 3/8”

Axis travels:

• Z distance spindle–table: 100 – 600 mm

Accuracy:

• Repeat accuracy: ±0.008 mm

• Positioning accuracy: ±0.01 mm

Servo motor torques:

• X: 8 Nm

• Y: 8 Nm

• Z: 11 Nm

Table:

• Size: 800 x 320 mm

• T-slots (size/number/pitch): 14 / 3 / 100 mm

• Max. feedrate: 10,000 mm/min

Tool changer:

• Positions: 12

• Max. tool diameter: 70 mm

• Max. tool length: 300 mm

• Tool change time: 7 s

Environmental conditions:

• Operating temperature: 19 – 21 °C

• Relative humidity: 5 – 80% non-condensing

• Pressure: 700 – 1060 hPa

• Storage temperature: 5 – 45 °C
