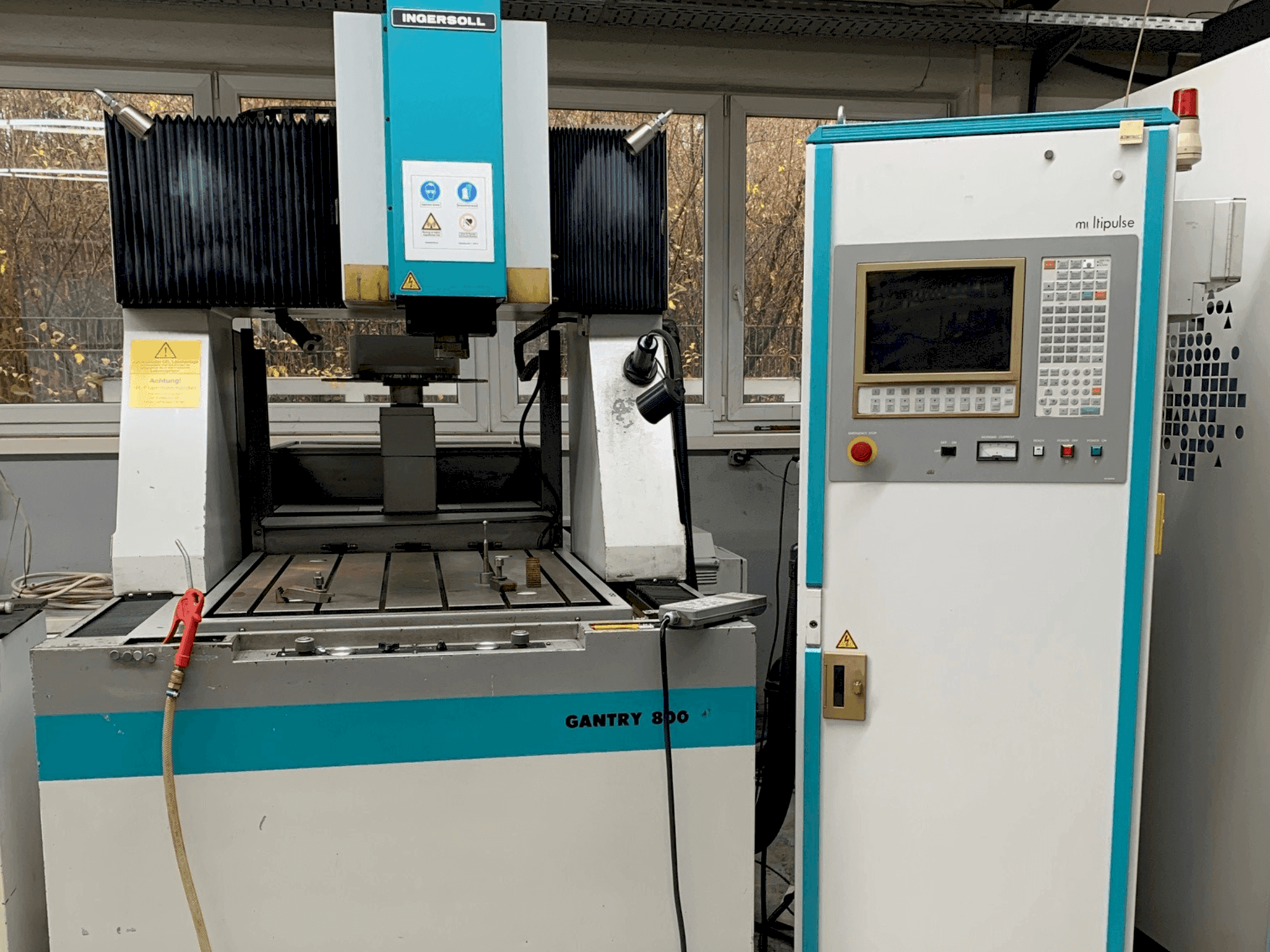

Front view of OPS INGERSOLL Ingersoll Gantry 800 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

OPS INGERSOLL Ingersoll Gantry 800

Photo Gallery

OPS INGERSOLL - Ingersoll Gantry 800DE-EDM-OPS-1998-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used OPS INGERSOLL Ingersoll Gantry 800 | EDM

Show in original language

This 4-axis OPS INGERSOLL Ingersoll Gantry 800 die-sinking EDM machine was manufactured in 1998. It features a robust 5600kg frame, a worktable supporting up to 2000kg, and travels of 550x850x450mm within the work container. The integrated C-axis offers a speed of 1-20 min-1 with a load capacity of 50/15kg. If you are looking to get high-quality die-sinking capabilities, consider the OPS INGERSOLL Ingersoll Gantry 800 machine we have for sale. Contact us for more information.

Overview

brand: OPS INGERSOLL
year: 1998
MODEL: Ingersoll Gantry 800
application type: EDM
Location: Germany
machine type: Die-Sinking EDM Machine

Technical Information - OPS INGERSOLL Ingersoll Gantry 800

Dimensions

Machine Depth: 2400 mm
Machine Height: 2680 mm
Machine Weight: 5600 kg
Table Load: 2000 kg

Movement

Number of Axes: 4
X-axis Travel: 550 mm
Y-axis Travel: 850 mm
Z-axis Travel: 450 mm

Additional Information

Additional equipment

Training Folder
Operating Instructions
Machine Documentation
Programming Instructions
Recooling System
Diskette for the Software
20 Holders Equipped with the REF System
2 Holders with Collets
Push Button

Machine Benefits

Technical Machine Benefits

Connected load: 12 kva
Fuse protection: 25 a
Control unit system: cnc dialog 32bit cnc // control unit drive type: digital ac servo motors
Control unit travel speed max. (x, y, z): 2000 mm/min
Y travel for electrode change and loading position: 1180 mm
Working tank internal dimensions: 800x1100x480 mm
Electric height programmable/automatic max: 450 mm
Support surface: 760x1000 mm
Max. Distance between tool carrier plate and worktable: 585 mm
Electrode weight permissible: single electrode 15 kg / changer total load 60 kg

Extra Information

Machine History NC Working: 1284 hours Program 2 Works: 540 hours In Progress 3: 500 hours
