➤ Used OPS INGERSOLL Gantry 8000 For Sale | gindumac.com

Show in original language

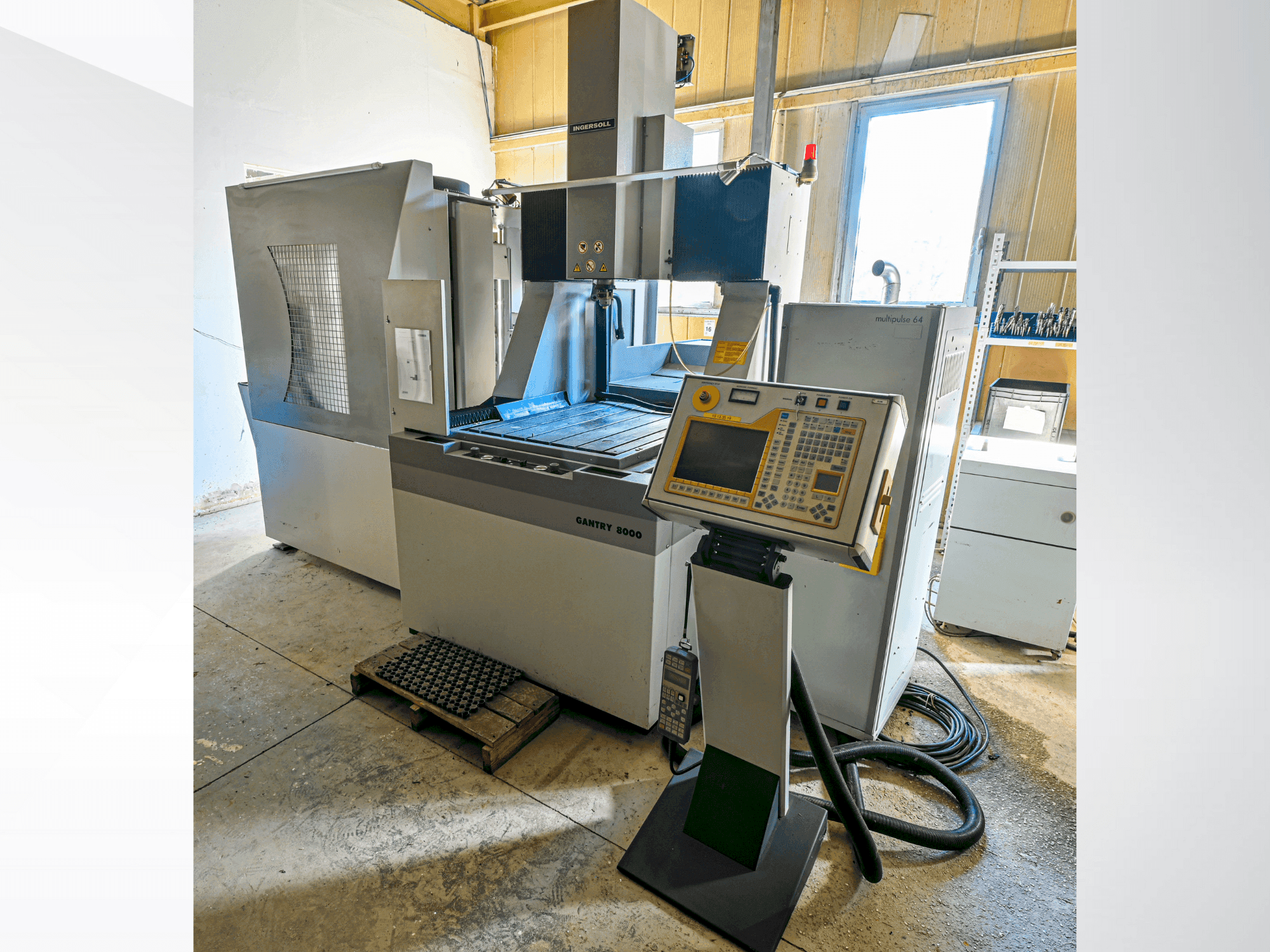

This OPS INGERSOLL Gantry 8000 was manufactured in 2001. A robust die-sinking EDM machine featuring a Mitsubishi 64-bit CNC for precise control. It includes an IMC 5 - EROWA UPS electrode changer with an 84-fold pick-up and an 8-fold pallet workpiece changer. The machine supports a load capacity of 2,000 kg and has a work bowl size of 800 x 1,100 x 480 mm. For more information about this die-sinking EDM machine, please reach out to us.

Overview

brand: OPS INGERSOLL
year: 2001
MODEL: Gantry 8000
application type: EDM
Location: North Macedonia
machine type: Die-Sinking EDM Machine
control unit brand: MITSUBISHI

Technical Information - OPS INGERSOLL Gantry 8000

Control Unit

Control Brand: MITSUBISHI
Control Model: 64 bit CNC

Movement

X-axis Travel: 550 mm
Y-axis Travel: 850 mm
Z-axis Travel: 450 mm

Additional Information

Additional equipment

Handling system: IMC 5 - EROWA UPS electrode changer with 84-fold pick-up
Workpiece changer: 8-fold pallet
Integrated cartridge filter system
CO2 fire extinguishing system

Machine Benefits

Technical Machine Benefits

Work bowl dimensions (w x d x h): 800 x 1100 x 480 mm
Work table dimensions (w x d): 760 x 1000 mm
Load capacity: 2000 kg

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
