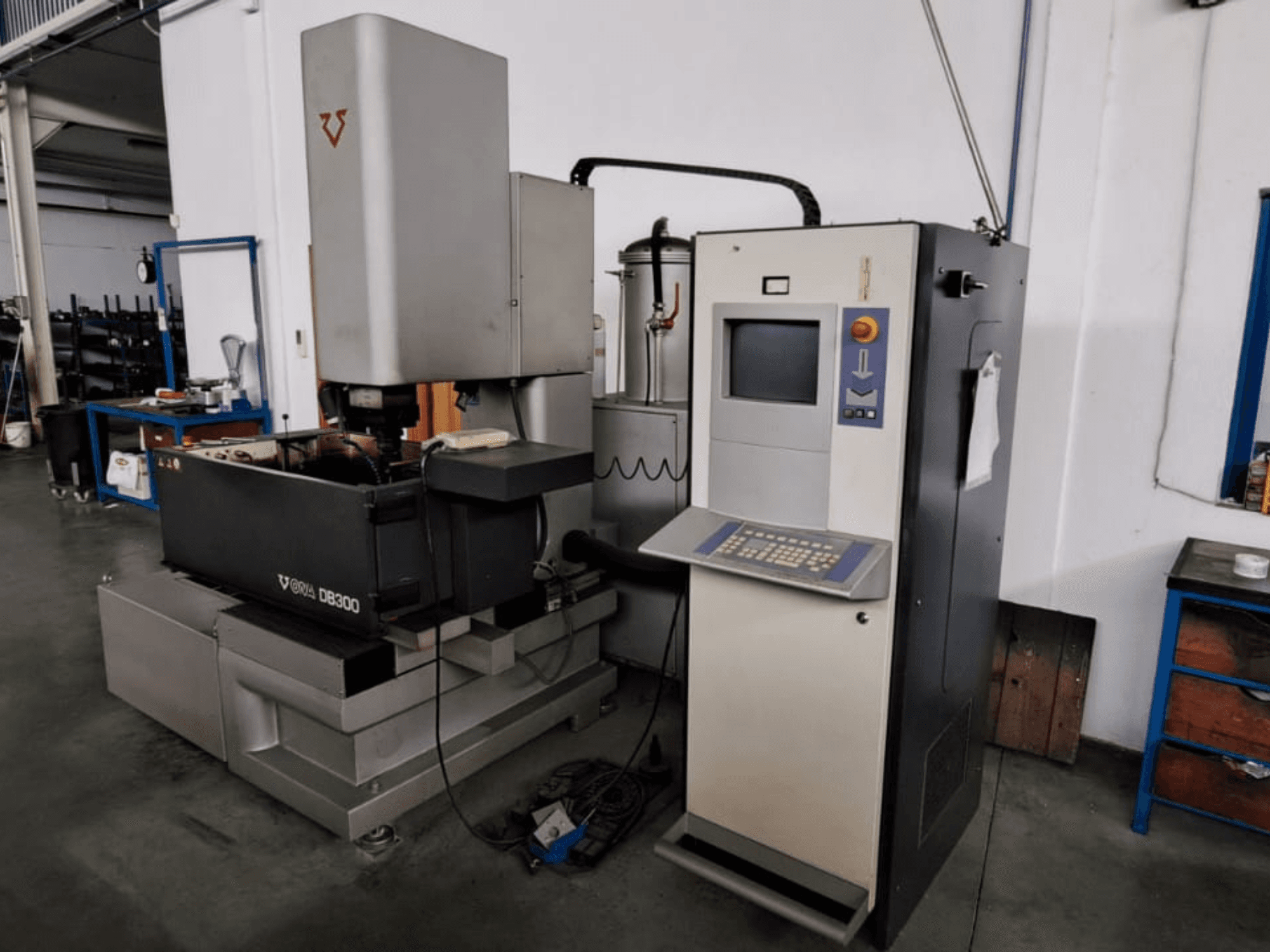

This 3-axis ONA DB300 die-sinking EDM machine was manufactured in 2006. It features an X-axis travel of 300 mm, Y-axis travel of 200 mm, and Z-axis travel of 250 mm. The work table dimensions are 400 x 300 mm, with a maximum workpiece weight of 200 kg. If you are looking to get high-quality die-sinking capabilities, consider the ONA DB300 machine we have for sale. Contact us for further details.
Overview
- brand: ONA
- year: 2006
- MODEL: DB300
- application type: EDM
- Location: Spain
- machine type: Die-Sinking EDM Machine
Technical Information - ONA DB300
Dimensions
- Machine Weight: 1600 kg
Movement
- Number of Axes: 3
- X-axis Travel: 300 mm
- Y-axis Travel: 200 mm
- Z-axis Travel: 250 mm
Additional Information
Work table dimensions: 400 x 300 mm
Maximum workpiece weight: 200 kg
Maximum electrode weight: 30 kg
Tank dimensions: 800 x 500 x 320 mm
Dielectric fluid capacity: 300 liters
Maximum current: 30 A (standard) / 60 A (optional)
Control unit: ONA CNC (S64 / S94 series)
Power supply: 400 V / 50 Hz
Additional equipment
Automatic Tool Changer (ATC), optional (typically 4–12 positions)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
