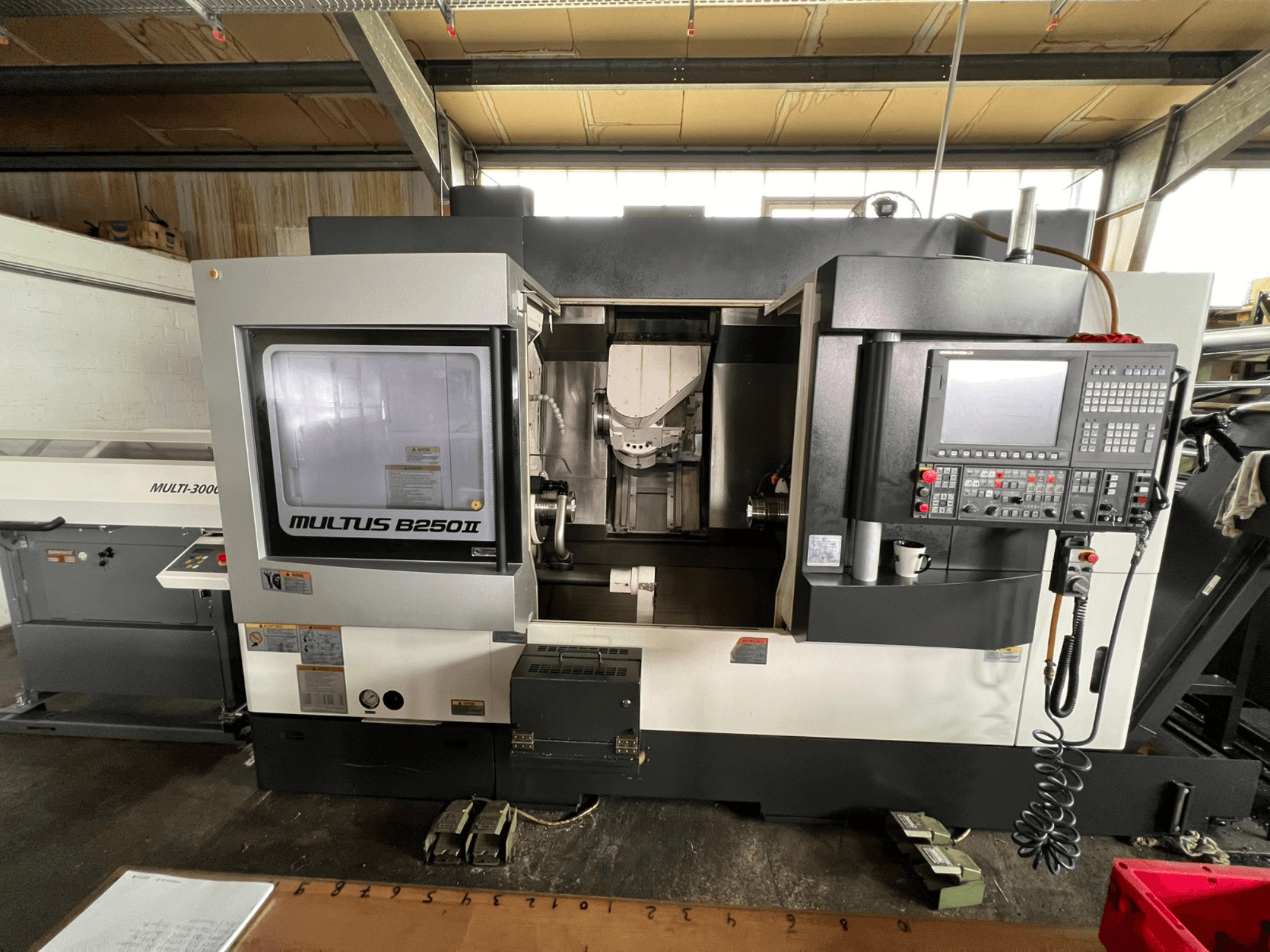

This 5-axis Okuma Multus B250II MW was manufactured in 2022. It features a maximum turning diameter of 400 mm and an extensive optional tool package, making it suitable for high-precision single-part, small-batch, and series production. The machine is designed for complete machining of complex workpieces in a single setup. If you are looking to get high-quality turning and milling capabilities, consider the Okuma Multus B250II MW turn-mill centre we have for sale. Contact us for further details.
Overview
- brand: Okuma
- year: 2022
- MODEL: Multus B250II MW
- production hours: 2326
- application type: Turning
- Location: Germany
- machine type: Turn-Mill Centre
- control unit brand: OKUMA
Technical Information - Okuma Multus B250II MW
Control Unit
- Control Brand: OKUMA
- Control Model: OSP-P300S
Movement
- B-axis Max: 210°
- B-axis Min: -30°
- C-axis: 360°
- Number of Axes: 5
- X-axis Travel: 580 mm
- Z-axis Travel: 905 mm
Technical Specification
- Counter Spindle: Yes
- Driven Tools: Yes
Additional Information
Tool Interface: HSK-A63
HSK-A63 Milling Spindle
Automatic Tool Changer: Yes
Driven Tools: Yes
Bar Feeder: SAMSYS Multi 3000
Chucks: 2 × Hainbuch TOPlus 65
Additional Chucks: 2 × Three-Jaw Chucks
Tool Package: Extensive (Optional)
X-Axis Travel: 580 mm
Y-Axis Travel: ±100 mm
Z-Axis Travel: 905 mm
B-Axis: -30° to +210°
C-Axis: 360°
Maximum Turning Diameter: 400 mm
Voltage: 400 V
Phase: 3
Frequency: 50 Hz
Maximum Power Consumption: 39 kVA
Total Current Consumption: 56.3 A
Maximum Motor Current: 95 A
Short-Circuit Rating: 2.5 kA
Spindle Running Time: 2,326 h
Condition: Very Good
Designed for complete machining of complex workpieces in a single setup
Suitable for high-precision single-part, small-batch and series production
Ready for immediate production after installation
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
