Okuma MU 6300V-L

Photo Gallery

SOLD

Okuma - MU 6300V-L

2015

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

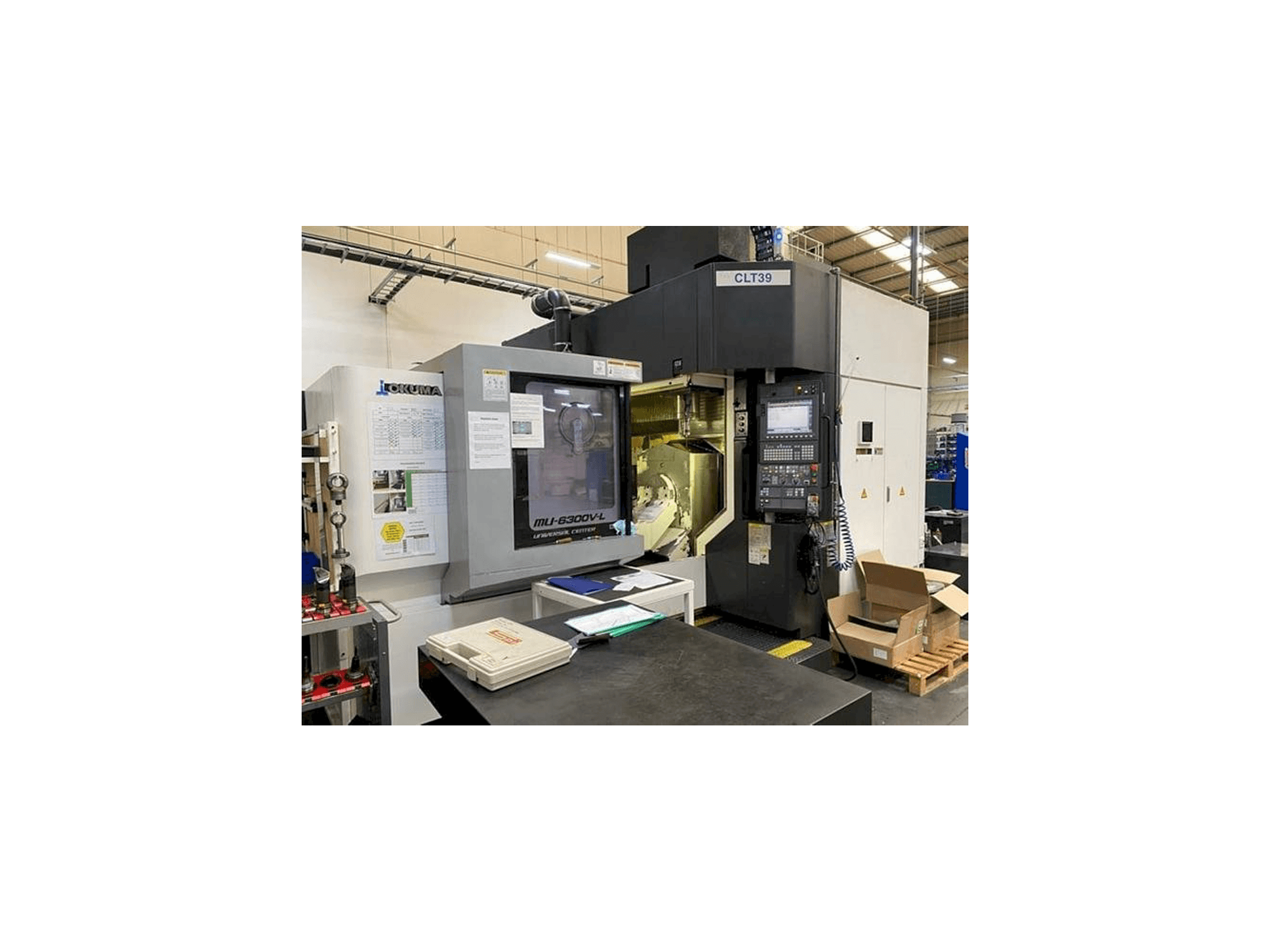

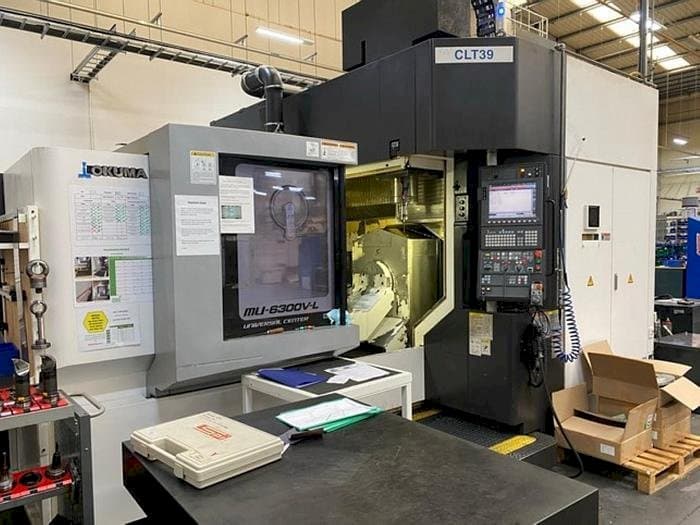

Okuma MU 6300V-L Vertical Machining center

Show in original language

This Okuma MU 6300V-L Vertical Machining center was manufactured in the year 2015. It is equipped with a control unit of the same brand. This 5 axis machine operates with a turning spindle speed of 8000 rpm. Includes a cooling through the spindle 7 MPA and presetting. In very good condition.

Overview

brand: Okuma
year: 2015
MODEL: MU 6300V-L
application type: Milling
Location: Italy
machine type: Machining centers (vertical)
availability: Sold
control unit brand: Okuma
GINDUMAC ID: IT-MIL-OKU-2015-00002

Technical Information

Control Unit

Brand: Okuma
Model: OSP 300MA

Main drive

Spindle speed range: 8000 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 925 mm
X-AXIS Rapid traverse: 50 m/min
Y-AXIS Movement: 1050 mm
Y-AXIS Rapid traverse: 50 m/min
Z-AXIS Movement: 600 mm
Z-AXIS Rapid traverse: 50 m/min
A-AXIS Movement: +90°-120° MM
C-AXIS Movement: 360° MM

Table

Min distance between vertical spindle and table: 160 mm
Max distance between vertical spindle and table: 760 mm
Table load: 600 KG

Turret

Number of tool slots: 64 positions

Media

Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Table size: Ø 630 mm
- - Max work size: Ø 830 x 550 mm
- - Tool shank hsk-63a
- - Cooling through the spindle 7 mpa
- - Presetting
Qualitative Machine Benefits:
- - Very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
