Okuma LB4000EX II

Photo Gallery

Okuma - LB4000EX IIIT-TUR-OKU-1997-00001

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Okuma LB4000EX II For Sale | gindumac.com

Show in original language

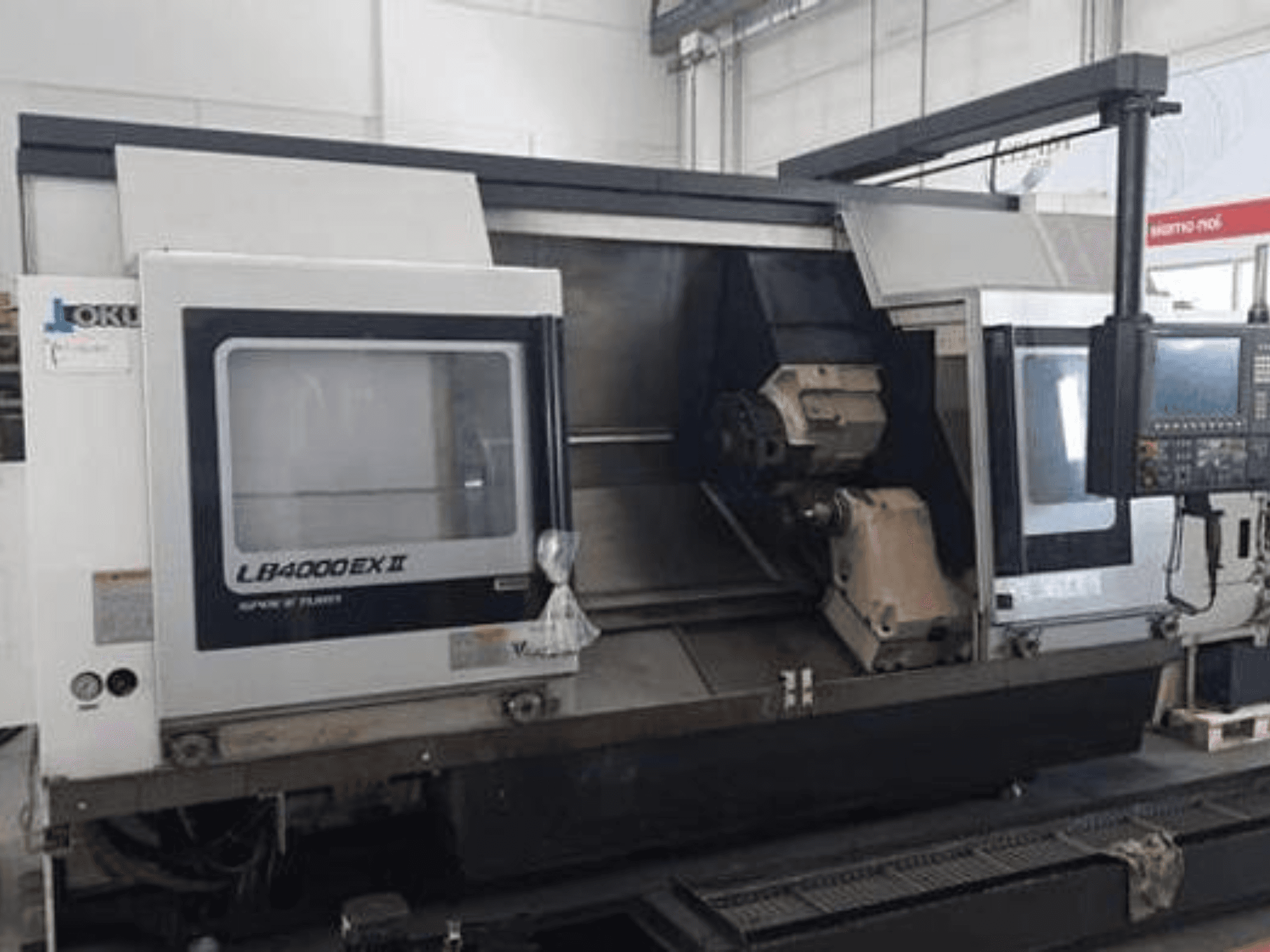

This 3-axis Okuma LB4000EX II horizontal turning machine was manufactured in 1997. It features a maximum turning diameter of 430 mm, a distance between centers of 1,520 mm, and a spindle speed range up to 3,000 rpm. The machine includes a Kitagawa 3-jaw chuck and an Okuma M-V12 turret with 12 stations. If you are looking to get high-quality turning capabilities, consider the Okuma LB4000EX II machine we have for sale. Contact us for more information about this machine.

Overview

brand: Okuma
year: 1997
MODEL: LB4000EX II
application type: Turning
Location: Italy
machine type: Horizontal Turning Machine

Technical Information - Okuma LB4000EX II

Dimensions

Machine Height: 2522 mm
Machine Length: 4175 mm
Machine Weight: 8600 kg

Movement

Number of Axes: 3
X-axis Travel: 300 mm
Y-axis Travel: 140 mm
Z-axis Travel: 1590 mm

Technical Specification

Spindle Power: 30 kW
Spindle Speed: 3000 RPM

Additional Information

C-axis Rotation: 360°
Rapid Traverse X-axis: 12500 mm/min
Rapid Traverse Z-axis: 30000 mm/min

Maximum Swing Diameter: 480 mm
Maximum Turning Diameter: 430 mm
Distance Between Centers: 1520 mm

Upper Turret: Okuma M-V12, 12 stations

Tailstock Travel: 1530 mm
Tailstock Taper: MT 5

Additional Equipment

Autocentering Chuck: Kitagawa 3-jaw, 380 mm diameter

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
