OKK MCH 800II

Photo Gallery

OKK - MCH 800IIGB-MIL-OKK-2002-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

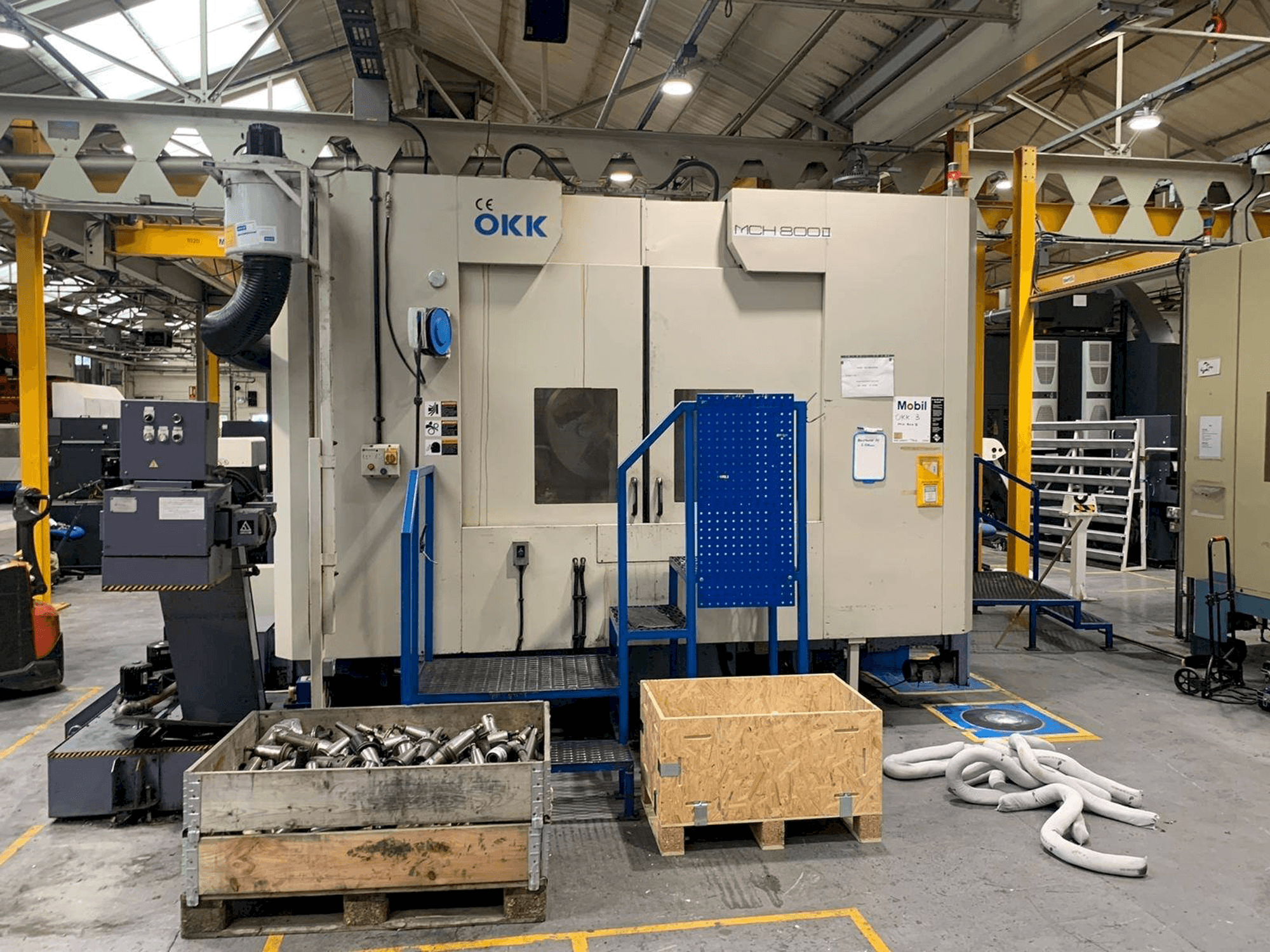

OKK MCH 800II Horizontal Machining Center

Show in original language

This OKK MCH 800II Horizontal Machining Center was manufactured in 2002. This reliable machine incorporates a 5-axis single pallet, a swarf conveyor and a gearbox among other technical benefits.

Overview

brand: OKK
year: 2002
MODEL: MCH 800II
application type: Milling
Location: United Kingdom
machine type: Horizontal Machining Centre
control unit brand: FANUC

Technical Information - OKK MCH 800II

Control Unit

Model: 16 IM
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 4500 1/MIN
Spindle motor power: 18.5 kW

Movement

X-AXIS Movement: 1220 mm
X-AXIS Working Feed: 5m/min
X-AXIS Rapid traverse: 12M/MIN
Y-AXIS Movement: 1020 mm
Y-AXIS Working Feed: 5m/min
Y-AXIS Rapid traverse: 12M/MIN
Z-AXIS Movement: 920 mm
Z-AXIS Working Feed: 5m/min
Z-AXIS Rapid traverse: 12M/MIN

Table

Outer length: 800 mm
Outer width: 800 mm

Tools

Slots in storage: 60
Max weight: 25 kg
Max tool diameter: 120/240 mm
Max tool length: 500 mm
Type of tool holder: DIN50

Media

Chip conveyor: Yes

Additional Information

Additional equipment

tooling accesories

Machine Benefits

Qualitative Machine Benefits

Very good condition

Technical Machine Benefits

5-axis single pallet
Swarf conveyor
Through spindle coolant
Faceplate size 530 mm
Center height 445 mm
Gearbox

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
