NUKON NF PRO 315
NUKON - NF PRO 315
2015
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Sheet Metal Machinery
- NUKON NF PRO 315

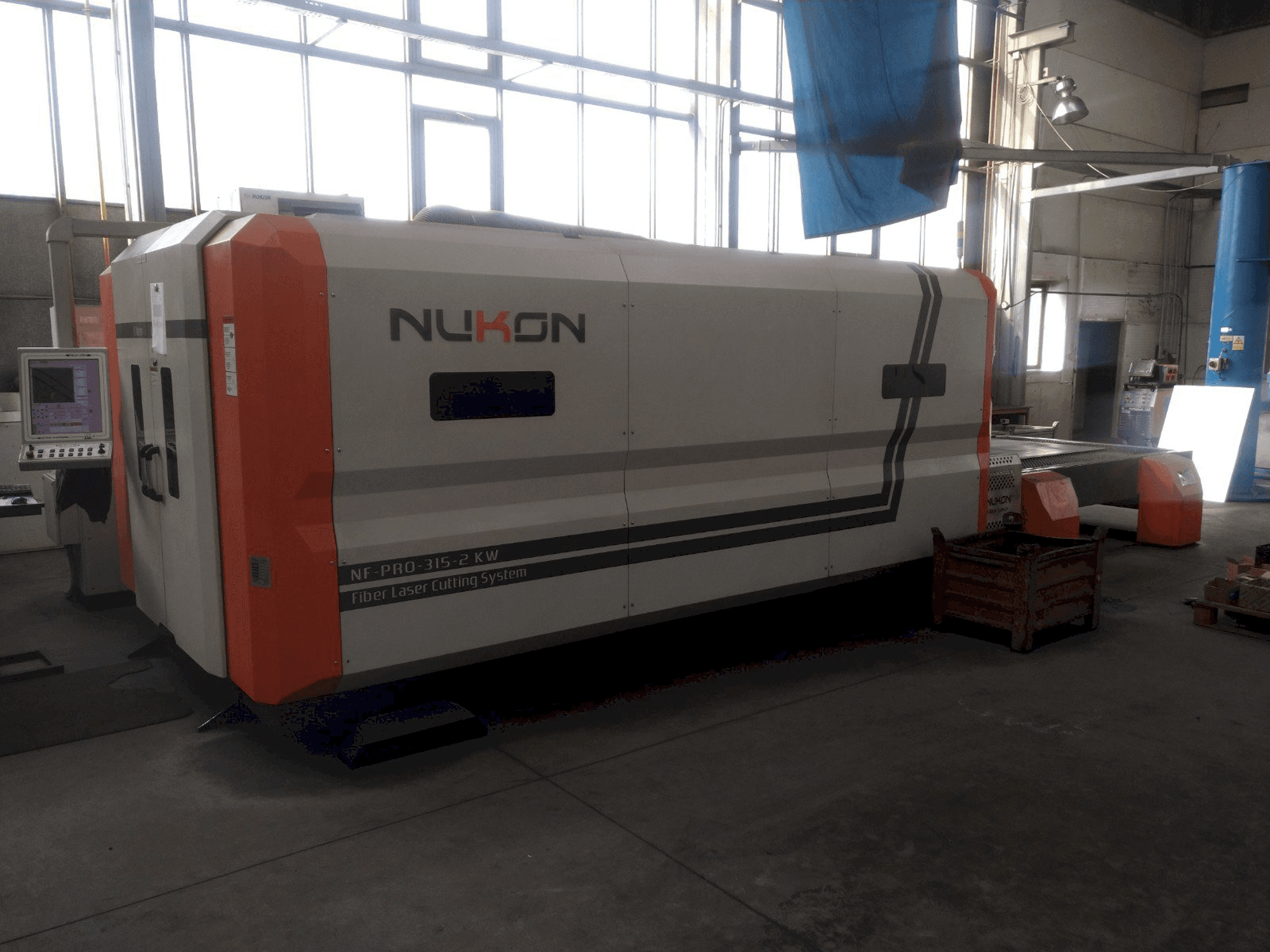

This NUKON NF PRO 315 Fiber Laser Cutting Machine from Turkey was built in the year 2015. It has been operative for 14500 hours. This machine works with a laser power 2 kW. It includes 2 replacable tables and a Software Radan 2021.0 (valid license). This machine is in very good condition and has been regularly serviced.
Overview
- brand: NUKON
- year: 2015
- MODEL: NF PRO 315
- production hours: 14500
- application type: Laser Cutting
- Location: Czech Republic
- machine type: Fiber laser cutting machines
- availability: Sold
- GINDUMAC ID: CZ-LAS-NUK-2015-00001
Technical Information
General Data
- Machine weight: 16000 KG
Main drive
- Laserpower: 2 KW
Movement
- X-AXIS Movement: 1530 MM
- X-AXIS Rapid traverse: 70 m/min
- Y-AXIS Movement: 3030 MM
- Y-AXIS Rapid traverse: 70 m/min
- Z-AXIS Movement: 85 MM
Workpiece
- Workpiece weight: 1000 KG
Max Material thickness
- Steel: 15 MM
- Stainless steel: 6 MM
- Aluminum: 5 MM
Machine specific data
- Size of cutting head 1: 152.4 MM (2 Mpa gas pressure)
Additional Information
- Technical Machine Benefits:
- - Table height 900 mm
- - Auxiliary gases (o2, n2)
- - Cooling tank 120 l
- - 2 replacable tables
- - Software radan 2021. 0 (valid license)
- Qualitative Machine Benefits:
- - Very good condition
- - Regularly serviced
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
