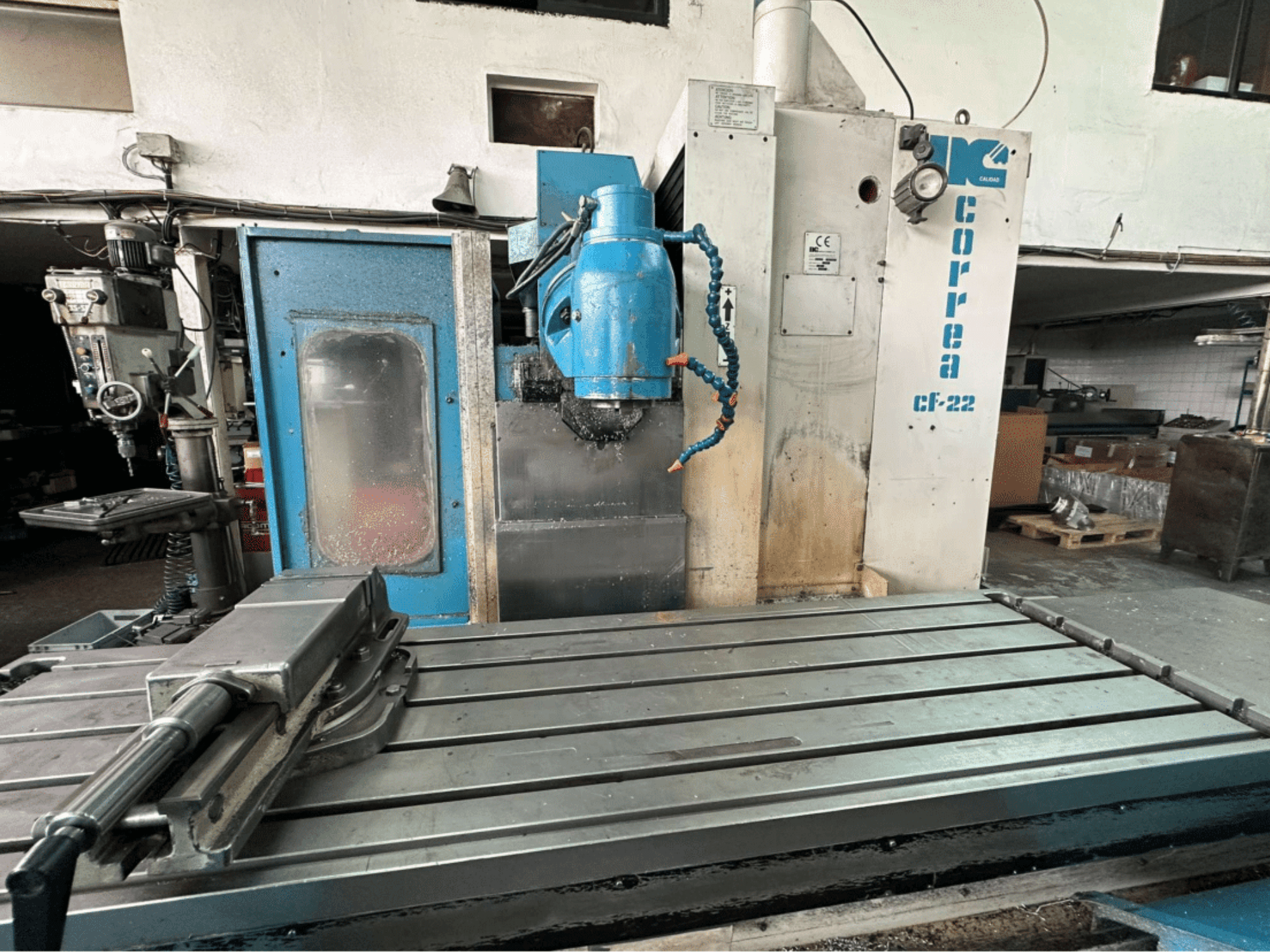

This 3-axis Nicolas Correa CF-22 Bed Type Milling Machine was manufactured in 1998. It features a universal manual U22 head with dual orientation, hydraulic tool clamping, and an ISO 50 tool taper. The table dimensions are 2,500 × 700 mm, supporting a maximum load of 4,000 kg. Spindle speeds range up to 4,000 rpm, powered by a 29 kW motor. Reach out for further details regarding this machine.
Overview
- brand: Nicolas Correa
- year: 1998
- MODEL: CF-22
- application type: Milling
- Location: Spain
- machine type: Bed Type Milling Machine
Technical Information - Nicolas Correa CF-22
Dimensions
- Machine Height: 2760 mm
- Machine Length: 6600 mm
- Machine Weight: 9500 kg
- Table Load: 4000 kg
Movement
- Number of Axes: 3
- X-axis Travel: 2500 mm
- Y-axis Travel: 800 mm
- Z-axis Travel: 800 mm
Technical Specification
- Spindle Power: 29 kW
- Spindle Speed: 4000 RPM
- Taper Size: ISO 50
Additional Information
Table dimensions: 2,500 × 700 mm
T-slots: 5
T-slot width: 22 mm
Head type: Universal manual U22 (dual orientation)
Indexing: Manual in 2 planes
Tool clamping: Hydraulic
Feed rates:
Working feed (X/Y/Z): 5 – 5,000 mm/min
Rapid traverse (X/Y/Z): 12,000 mm/min
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
