Neway VM 1160

Photo Gallery

SOLD

Neway - VM 1160

2021

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

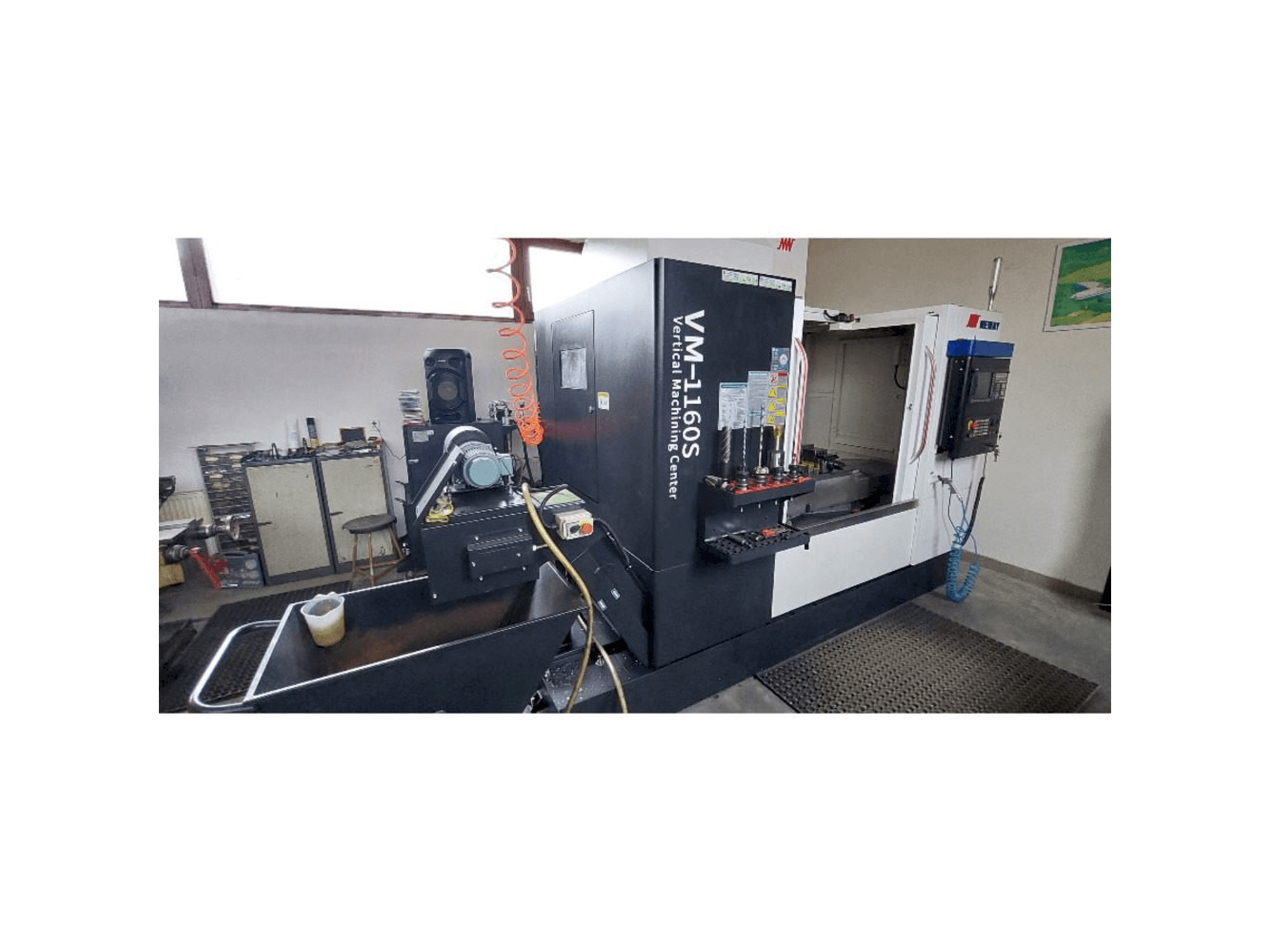

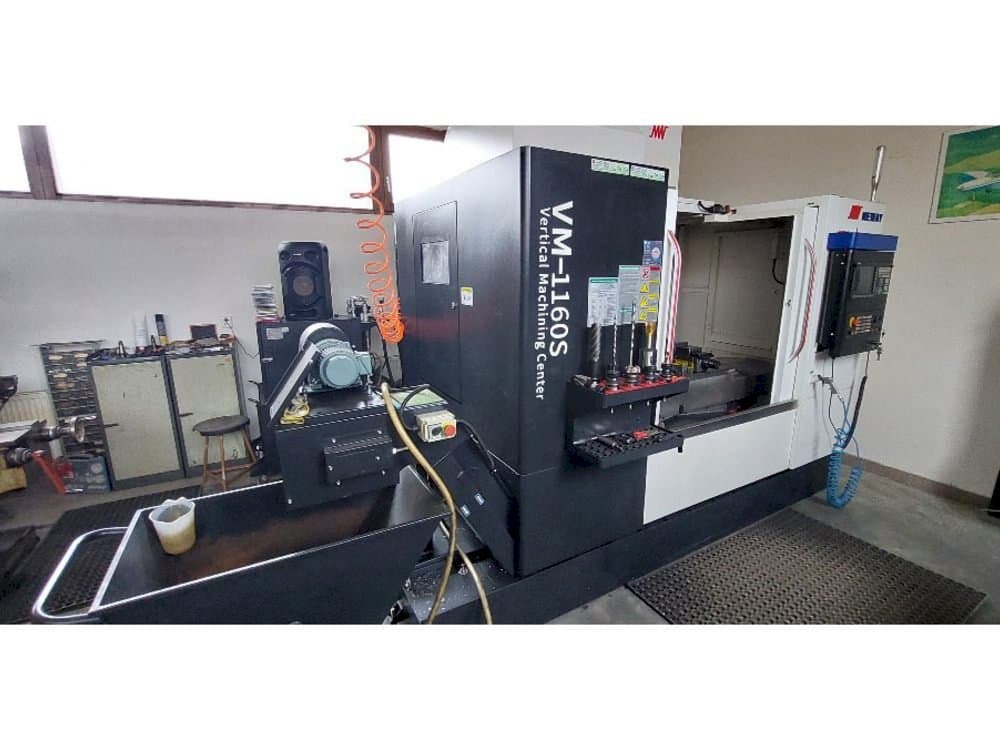

Neway VM 1160 Vertical Machining center

Show in original language

This Neway VM 1160 Vertical Machining center was manufactured in the year 2021. It is equipped with a Siemens 828D control unit and has 3 axis. The machine has a spindle speed of 10000 rpm, is in excellent condition and only used of 6 months.

Overview

brand: Neway
year: 2021
MODEL: VM 1160
application type: Milling
Location: Czech Republic
machine type: Machining centers (vertical)
availability: Sold
GINDUMAC ID: CZ-MIL-NEW-2021-00001

Technical Information

General Data

Measurements width: 2820 mm
Measurements depth: 2500 mm
Measurements height: 2830 mm
Machine weight: 7000 kg

Controller

Brand: Siemens
Model: 828D

Main drive

Number of spindles: 1
Spindle speed range: 10000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 1000 mm
Y-AXIS Movement: 600 mm
Z-AXIS Movement: 580 mm

Workpiece

Workpiece weight: 750 kg

Table

Outer length: 1100 mm
Outer width: 600 mm

Tools

Slots in storage: 24
Max weight: 8 kg
Max tool diameter: 78 mm
Max tool length: 300 mm
Type of tool holder: BT40

Media

Chip conveyor: Yes
Internal cooling: Yes

Additional equipment

- 2 pcs hydraulic clamps

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Distance spindle-table 150-710 mm
- - Rapid feedrate (x/y/z) 36/36/30 m/min.
- - Spindle motor power 10 kw, 140 nm
- - High pressure through spindle cooling 20 bar
- - Remote hand wheel, usb port
- - Washgun, airgun
- - Blum probes tc52+zx speed
Qualitative Machine Benefits:
- - Very good condition, only used for 6 months!
- - Warranty until 12/2023

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
