➤ Used NCT MM-850SV For Sale | gindumac.com

Show in original language

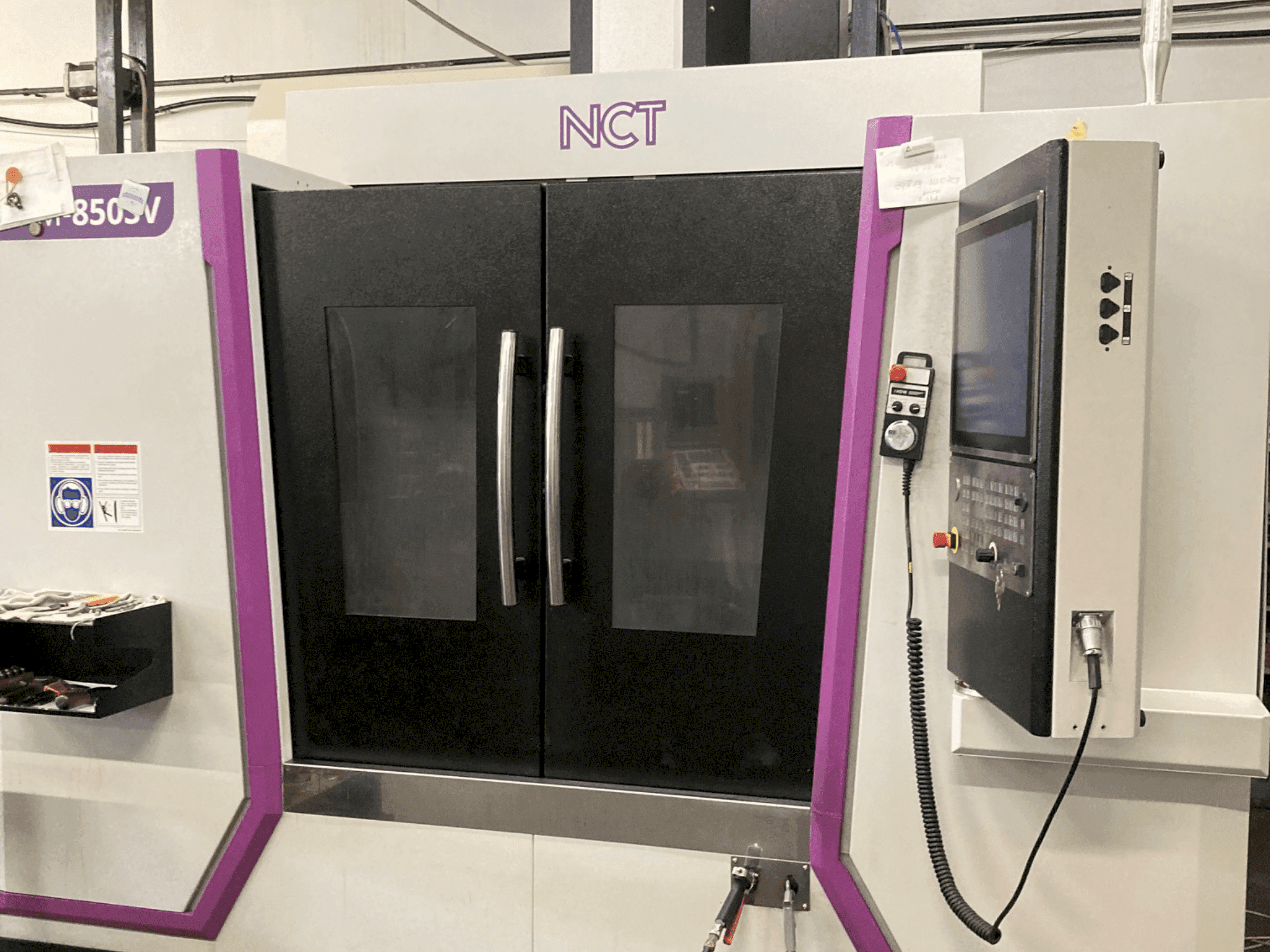

This 3-axis NCT MM-850SV vertical machining centre was manufactured in 2021. It features a table size of 950 × 500 mm, maximum table load of 600 kg, and X/Y/Z travels of 850/510/510 mm. The spindle reaches up to 15,000 rpm, with an optional 24,000 rpm, and utilizes a BT40 taper. The arm-type ATC holds 24 tools. Consider the opportunity to buy this NCT MM-850SV vertical machining centre. Contact us for more information about this machine.

Overview

brand: NCT
year: 2021
MODEL: MM-850SV
application type: Milling
Location: Hungary
machine type: Vertical Machining Centre

Technical Information - NCT MM-850SV

General Data

Measurements width: 2330 mm
Measurements depth: 2600 mm
Measurements height: 2685 mm
Machine weight: 4300 kg

Main drive

Spindle speed range: 15000 1/MIN
Tool taper: BT40
Number of axis: 3

Movement

X-AXIS Movement: 850 mm
X-AXIS Rapid traverse: 36 m/min
Y-AXIS Movement: 510 mm
Y-AXIS Rapid traverse: 36 m/min
Z-AXIS Movement: 510 mm
Z-AXIS Rapid traverse: 36 m/min

Tools

Number of index: 24
Max weight: 6 kg
Max tool diameter: 80 mm
Max tool length: 300 mm

Media

Power consumption: 20 kW

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Table size: 950 × 500 mm
- - Distance spindle nose – table surface: 140 – 650 mm
- - Distance spindle axis – column: 556 mm
- - Positioning accuracy: < 0. 005 mm
- - Repeatability: < 0. 003 mm
- - Max. Cutting feed: 36 m/min

Extra information

- Main Drive Optional Spindle Speed: 24000 rpm Taper Cleaning: High-Pressure Air Blast Drive Type: Direct Drive Spindle Cooling: Oil Chiller Controller Max. Power Output: 29 kW Max. Torque: 106 Nm Cooling: Liquid Cooling Tools Tool Type: Arm-type ATC

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
