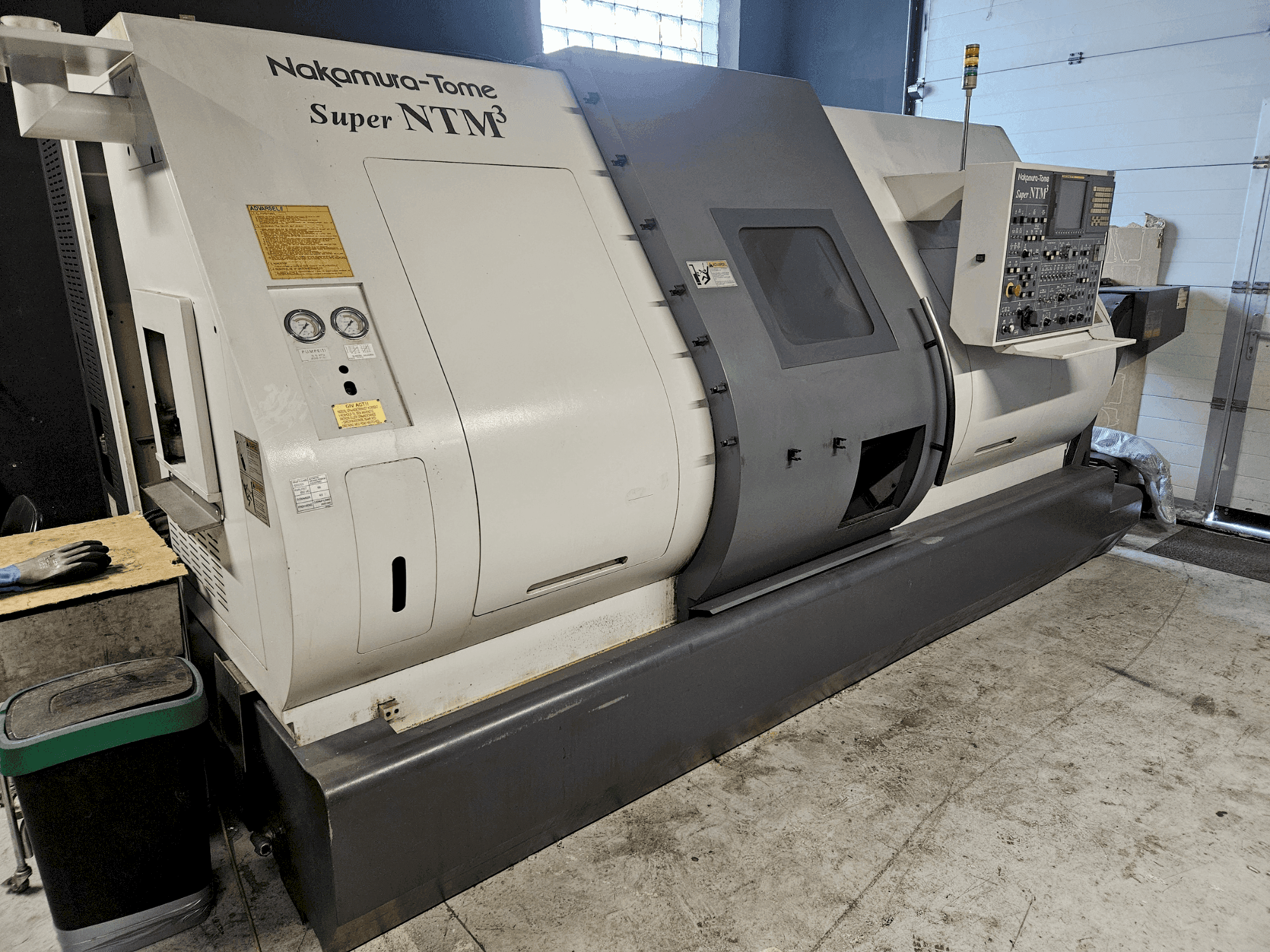

Front view of NAKAMURA-TOME Super NTM3  machine

NAKAMURA-TOME Super NTM3

NAKAMURA-TOME - Super NTM3

2007

Rs. 4,792,950
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 11-axis Nakamura-Tome Super NTM3 was manufactured in 2007. It features dual spindles, three turrets, and a Fanuc 16i-TB control system. The main spindle has a 15 kW power with speeds up to 4500 rpm, and the counter-spindle offers 11 kW power with speeds up to 5000 rpm. The machine has a large working space with a maximum turning diameter of 190 mm and a bar diameter of 65 mm. It's a great opportunity to buy this Nakamura-Tome lathe. Contact us for further details.

Overview

  • brand: NAKAMURA-TOME
  • year: 2007
  • MODEL: Super NTM3
  • application type: Turning
  • Location: Poland
  • machine type: Lathe
  • availability: Immediately
  • control unit brand: Fanuc
  • GINDUMAC ID: PL-TUR-NAK-2007-00001

Technical Information

General Data

  • Measurements width: 2270 mm
  • Measurements depth: 3930 mm
  • Measurements height: 2110 mm
  • Machine weight: 12000 kg

Control Unit

  • Brand: Fanuc
  • Model: 16i-TB

Main drive

  • Number of spindles: 2
  • Spindle speed range: 4500 // 5000 1/MIN
  • Spindle motor power: 15 kW // 11 kW
  • Number of axis: 11

Turret

  • Number of turrets: 3

Tools

  • Number of stations: 24
  • Slots in storage: 12

    Additional equipment

    • - Parts catcher
    • - Parts conveying strip
    • - Bar loader: IRCO MUK 7012-II (2016)
    • - Electric transformer
    • - Barfeeder Breuning IRCO SiMag is included

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Main spindle max. Bar diameter: 65 mm
        • - Main spindle max. Turning diameter: 190 mm
        • - Main spindle c axis indexing precision: 0. 001°
        • - Counter-spindle max. Bar diameter: 52 mm // max. Turning diameter: 190 mm // c axis indexing precision: 0. 001° // _counter-spindle distance_ 970 mm
        • - Number of positions: 24
        • - Number of motorized positions: 12
        • - Y stroke: 102 mm
        • - X/z stroke: 167. 5/250 mm
        • - Live tools speed: 6000 rpm
        • - Live tools power: 5. 5 kw

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
