Used Nakamura NTM3 - 2007 - Lathe For sale | Gindumac

Show in original language

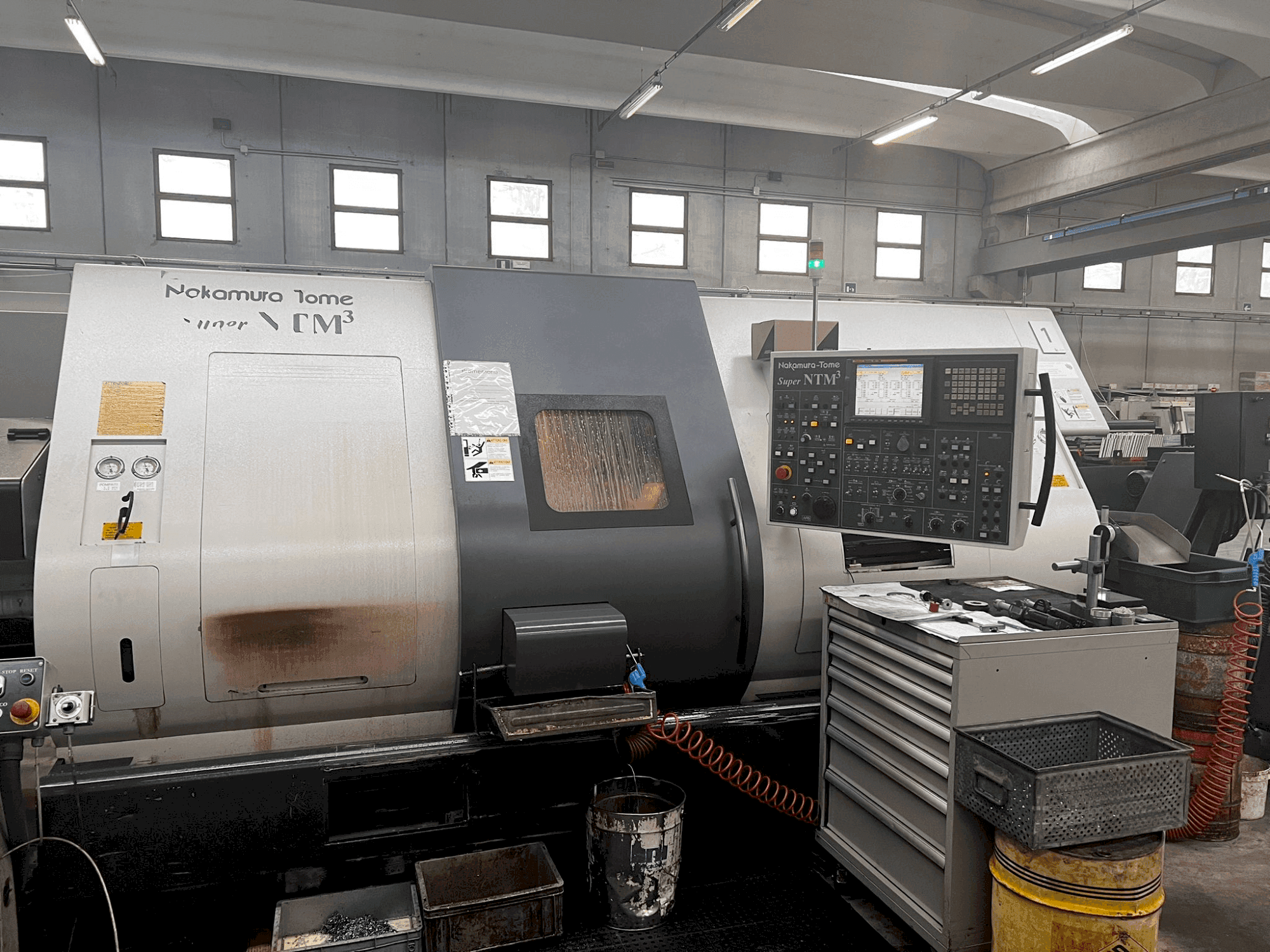

The Nakamura NTM3 lathe, built in 2007, features a 9-axis system ideal for complex and precise machining. It uses a Fanuc 16T control system for reliable and easy operation. The lathe has three motorized turrets with dual Y-axes on the upper turrets, enabling multi-tasking and reducing production time for complex parts. Key features include a main spindle workpiece unloader, a workpiece-to-head unloader, and a 2019 Top Automazione Xfiles bar loader. It also has a 65 Haimbuch collet holder for various bar sizes. Contact us for more details.

Overview

brand: NAKAMURA
year: 2007
MODEL: NTM3
application type: Turning
Location: Italy
machine type: Turn-Mill Centre
control unit brand: FANUC

Technical Information - NAKAMURA NTM3

General Data

Measurements width: 2270 MM
Measurements depth: 3930 MM
Measurements height: 2100 MM
Machine weight: 12000 KG

Control Unit

Model: 16T
Brand: FANUC

Main drive

Spindle speed range: 5000 1/MIN
Spindle motor power: 15/11 kw
Number of axis: 9

Movement

X-AXIS Movement: 167.5 mm
Y-AXIS Movement: 102 (+61/ -41) mm
Z-AXIS Movement: 250 mm

Additional equipment

- Bar Loader: Top Automazione Xfiles (2019)
- Collet Holder: 65 Haimbuch

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum bar diameter: 65
- - Enhanced productivity and flexibility with 3 motorized turrets and dual y-axes, allowing complex multitasking operations.
- - Reliable fanuc 16t control unit provides precision in control for high-quality turning operations. Reliable fanuc 16t control unit provides precision in control for high-quality turning operations.
- - X2 axis movement: 167. 5 mm
- - Z2 axis movement: 250 mm
- - Y2 axis movement: 102 (+61/-41) mm
- - X3 axis movement: 167. 5
- - Z3 axis movement: 685
Qualitative Machine Benefits:
- - High precision and efficiency in handling through specialized unloaders and advanced bar loader.
- - Capability to handle diverse and complex parts efficiently due to extensive turret and axis configurations.

Extra information

- Machine still under power.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
