Muratec MD 200
Muratec - MD 200
2017
Do you have further questions? Contact us.
Alessandro Martini
+49 162 585 84 48
a.martini@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- Muratec MD 200 Lathe

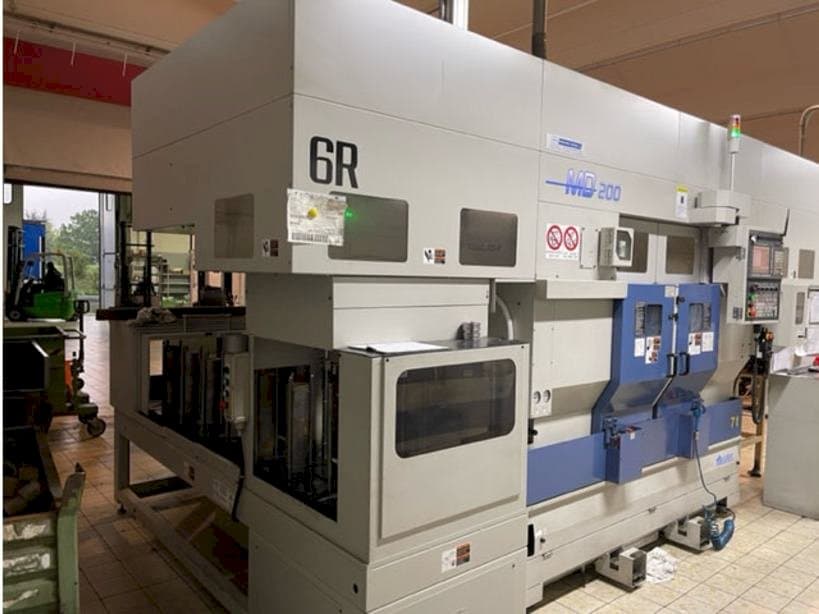

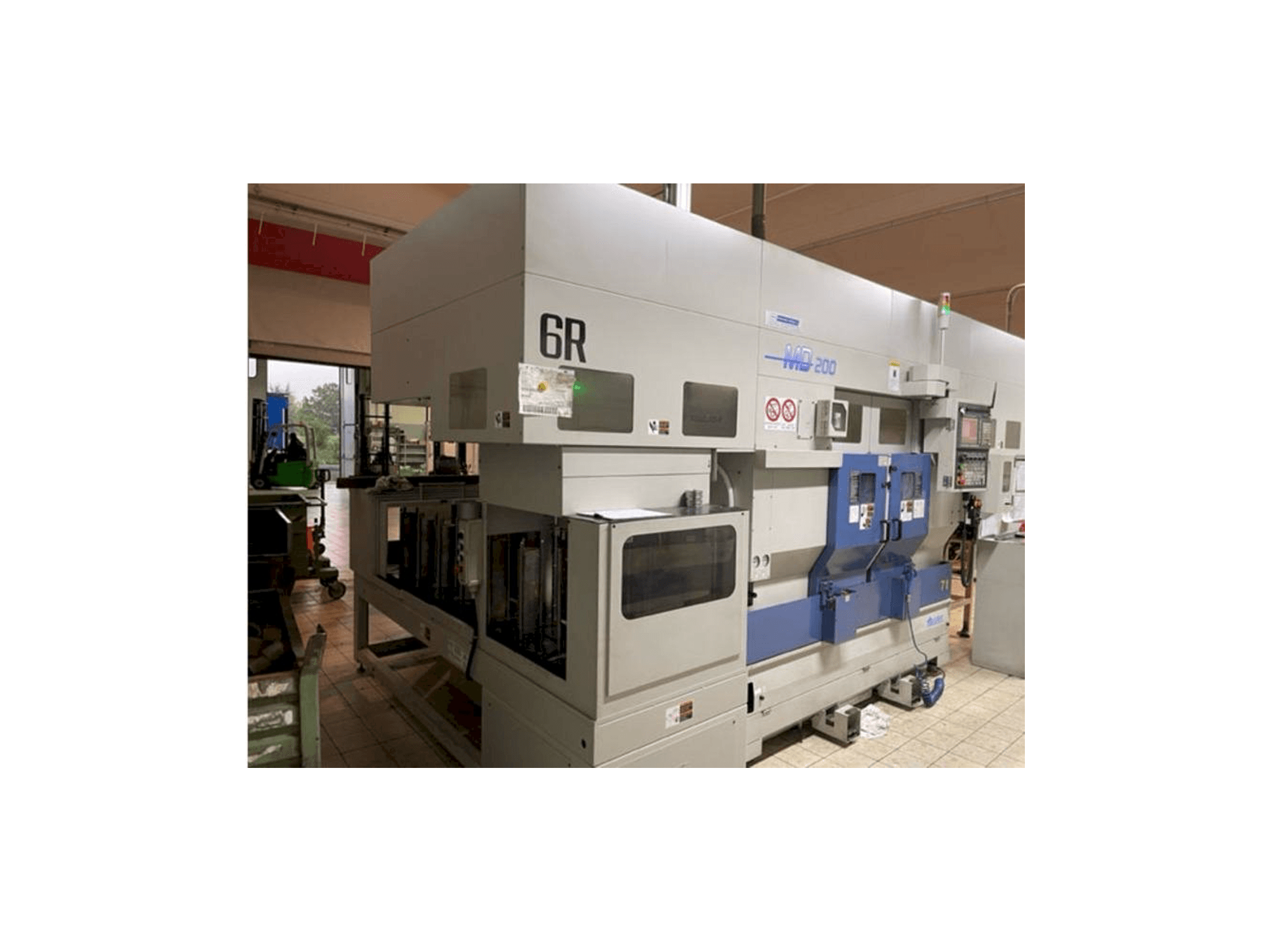

This Muratec MD 200 Lathe was manufactured in the year 2017 in Japan. It is equipped with a Fanuc CNC control unit. The machine has a spindle speed of 2000 rpm, is in good condition and well maintained.
Overview
- brand: Muratec
- year: 2017
- MODEL: MD 200
- application type: Turning
- Location: Italy
- machine type: Lathe
- availability: Sold
- control unit brand: Fanuc
- GINDUMAC ID: IT-TUR-MUR-2017-00001
Technical Information
General Data
- Measurements width: 3200 mm
- Measurements depth: 4840 mm
- Measurements height: 2200 mm
- Machine weight: 7400 Kg
Control Unit
- Brand: Fanuc
- Model: CNC
Main drive
- Spindle speed range: 2000 1/MIN
- Spindle motor power: 11 kW
Media
- Power consumption: 73 kVa
Additional Information
- Technical Machine Benefits:
- - Spindle nose asa 6
- - Turnable diameter 200 mm
- - Self-centering diameter 254 mm
- - Distance between spindles 440 mm
- - Bar passage 65 mm
- - Turnable length 100 mm
- - Number of secondary spindle revolutions 2000
- - Number of tool places in the first turret 12
- - Motorized number of first turret 12
- - X axis travel first turret 190 mm z axis travel first turret 170 mm
- Qualitative Machine Benefits:
- - Number of second turret tool places 12
- - Second turret motorized number 12
- - X axis travel second turret 190 mm
- - Z axis travel second turret 170 mm rapid feeds linear axes x y z 18 m / min
- - Gantry loader yes
- - Maximum capacity of the gantry 8 x 2 kg maximum diameter of the piece that can be transported 200 mm
- - Maximum transportable piece length 100 mm
- - Stoker or blanks warehouse yes
- - Pallet number 14
- - Chip conveyor belt
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
