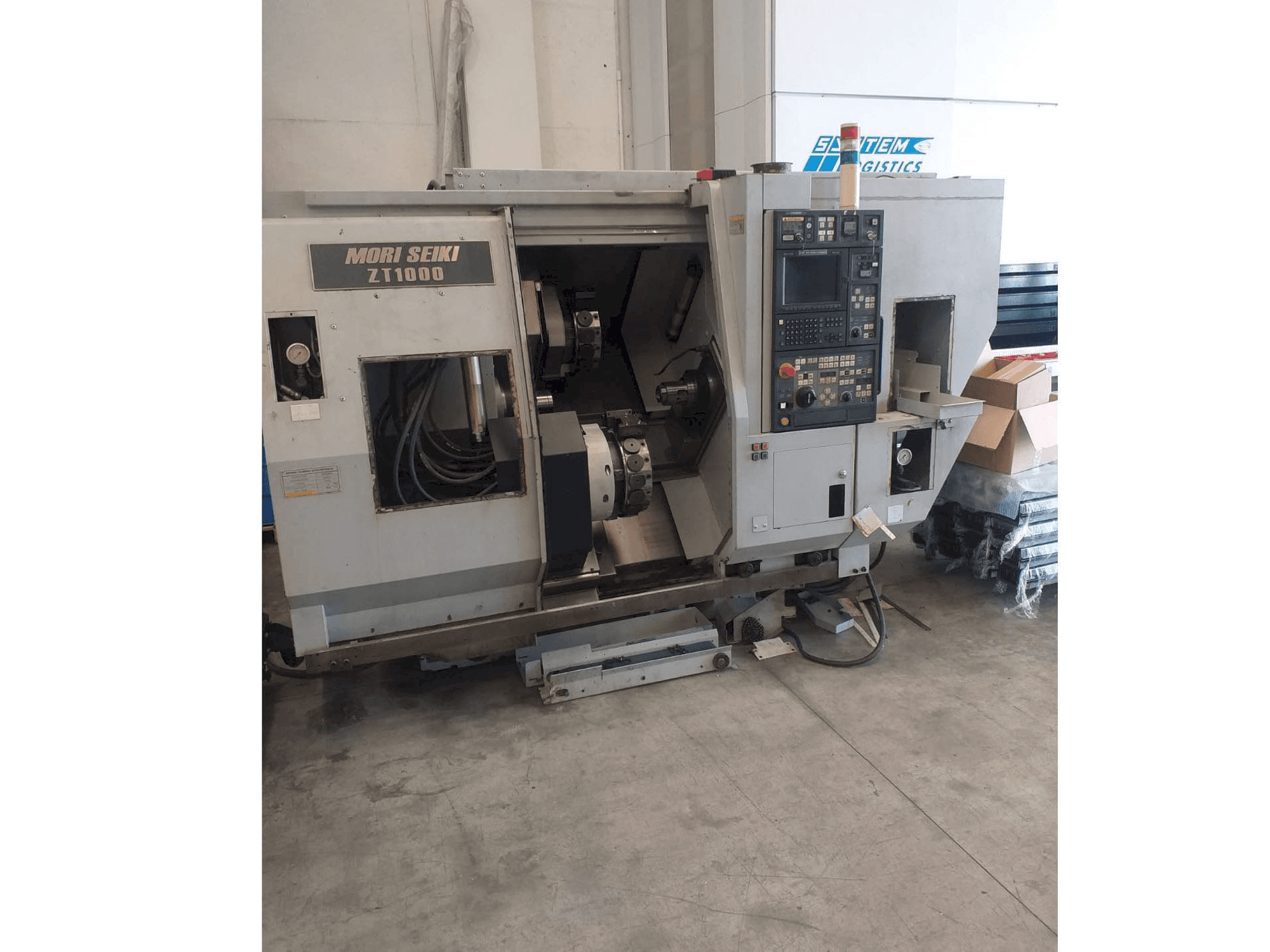

Front view of MORI SEIKI ZT 1000 machine
Front view of MORI SEIKI ZT 1000 machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

MORI SEIKI - ZT 1000IT-TUR-MOR-2002-00002

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This MORI SEIKI ZT 1000 Lathe machine was manufactured in the year 2002. This 4 axis machine works with a spindle speed up to 6000 rpm, and a max turning length 120 mm. Includes a Iemca barfeed with a capacity of 42 mm.

Overview

  • brand: MORI SEIKI
  • year: 2002
  • MODEL: ZT 1000
  • application type: Turning
  • Location: Italy
  • machine type: Turn-Mill Centre

Technical Information - MORI SEIKI ZT 1000

General Data

  • Measurements width: 2797 mm
  • Measurements depth: 2010 mm
  • Machine weight: 5000 kg

Main drive

  • Spindle speed range: 6000 1/MIN
  • Spindle motor power: 11/7.5 kw
  • Number of axis: 4

    Additional equipment

    • - Iemca barfeed mod. Boss 545/32 new in 2003

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Upper/lower turret with 16 driven stations each
        • - Sub spindle
        • - No. 2 c axis
        • - Y axis (+/- 40 mm)
        • - Bar capacity 42 mm
        • - Max turning length 120 mm
        • - No 24 standard tool holders
        • - No. 11 driven tool holders ( 7 radials + 2 axials + 2 with variable angle)
        • - No. 2 bellegrandi collet chucks
        • - Parts catcher + parts belt
      • Qualitative Machine Benefits:
        • - Presetter
        • - Chip conveyor hinge type
        • - Manuals + ce declaration

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

    Your account manager:

    Sergi Guardia

    Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

    get in contact

    Payment Terms

    • Payment in advance

    • Asset Financing
