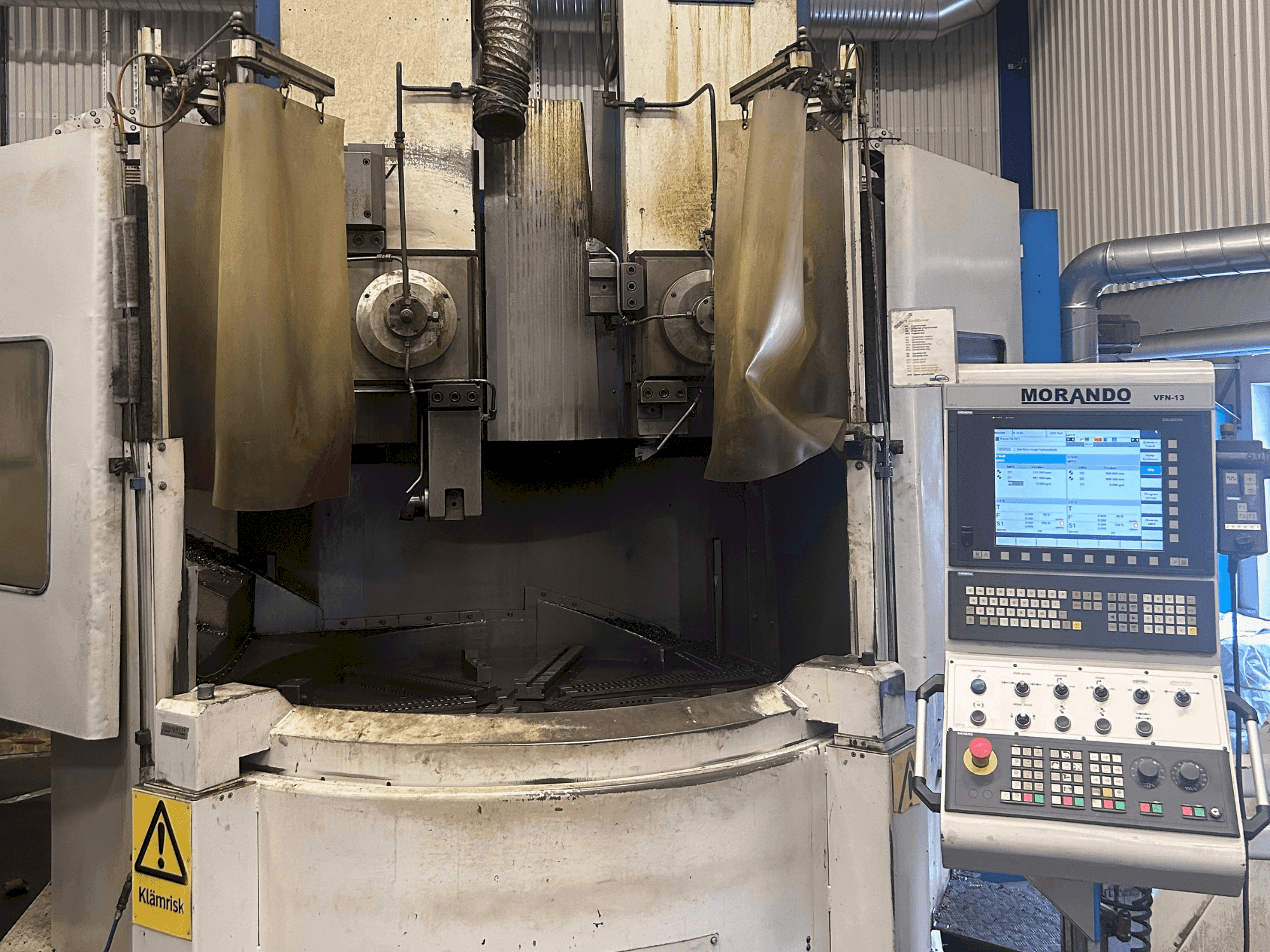

This 3-axis MORANDO VFN13 vertical turning machine was manufactured in 1977 and retrofitted in 2009 with a new Siemens 840D PL control. It features a 1600mm hydraulic chuck, dual Z-axis, and a revolver magazine. Capable of handling a maximum turning diameter of 1,500mm and a height of 800mm, it offers robust performance with a spindle motor power of 80 kW. If you are looking to get high-quality turning capabilities consider the MORANDO VFN13 machine we have for sale. Contact us for more information.
Overview
- brand: MORANDO
- year: 1977
- MODEL: VFN13
- application type: Turning
- Location: Sweden
- machine type: Vertical Turning Machine
- availability: Immediately
- control unit brand: SIEMENS
Technical Information - MORANDO VFN13
General Data
- Machine weight: 25000 kg
Control Unit
- Brand: SIEMENS
- Model: Sinumerik 840D PL
Main drive
- Spindle motor power: 80 kW
- Number of axis: 3
Additional Information
- Technical Machine Benefits:
- - Maximum swing: 1500 mm
- - Gear steps: 2 pcs
- - Max spindle speed, low gear: 75 rpm // max spindle speed, high gear: 200 rpm
- - Max torque, low gear s1: 15300 nm // max torque, high gear s1: 5100 nm
- - Horizontal movement: 1000 mm
- - Vertical movement: 875 mm
- - Rapid traverse: 5000 mm/min
- - Maximum turning diameter: 1500 mm
- - Maximum turning height over chuck: 800 mm
- - Free height under slide: 830 mm
- - Table Chuck diameter: 1600 mm Max speed: 330 rpm Max clamping force at 70 bar: 16000 kg Clamping range, internal: 450 – 1550 mm Clamping range, external: 650 – 1350 mm Tools Tool changer size: 440 x 440 mm Minimum center distance between tool changers: 600 mm
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
