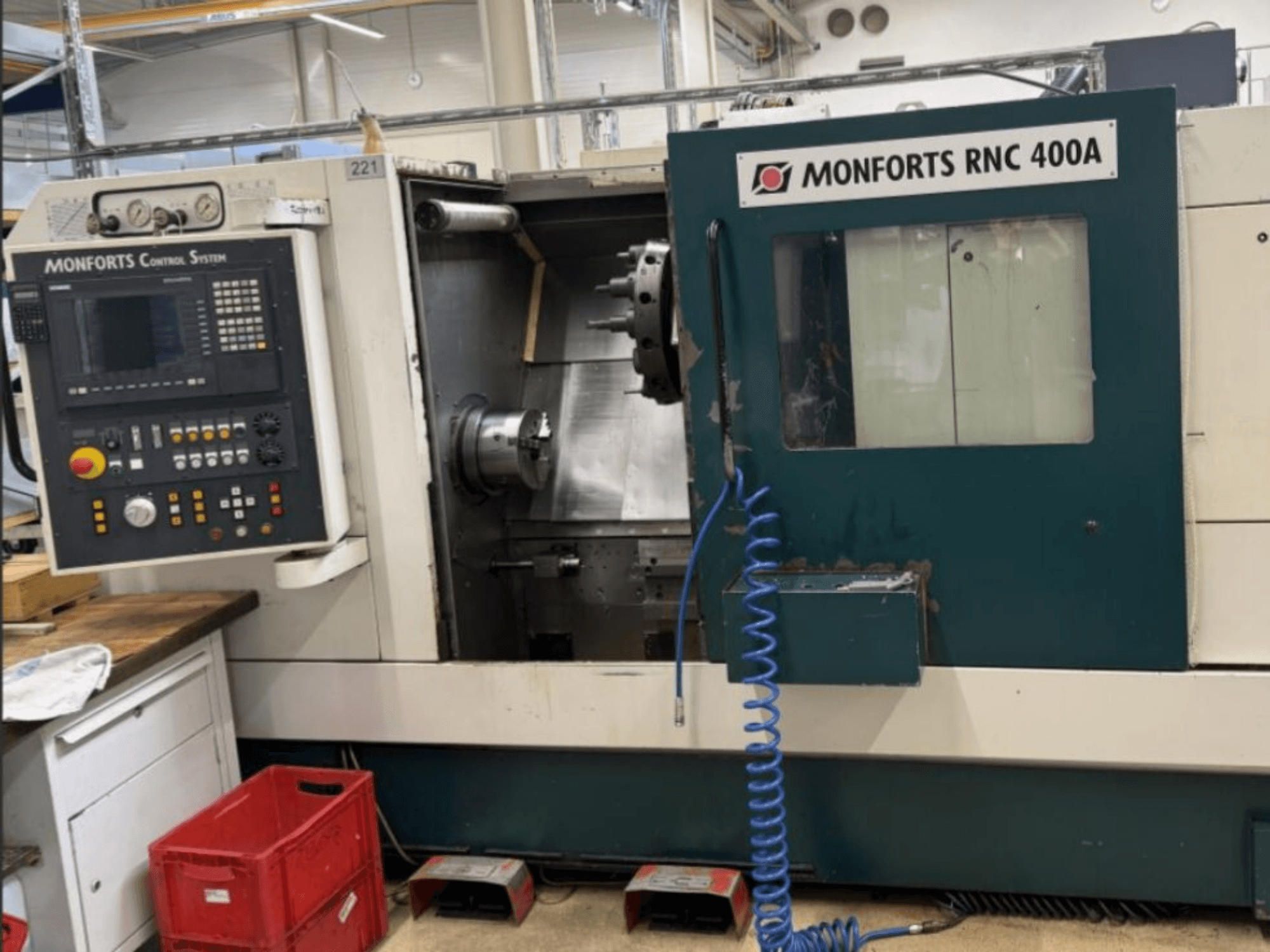

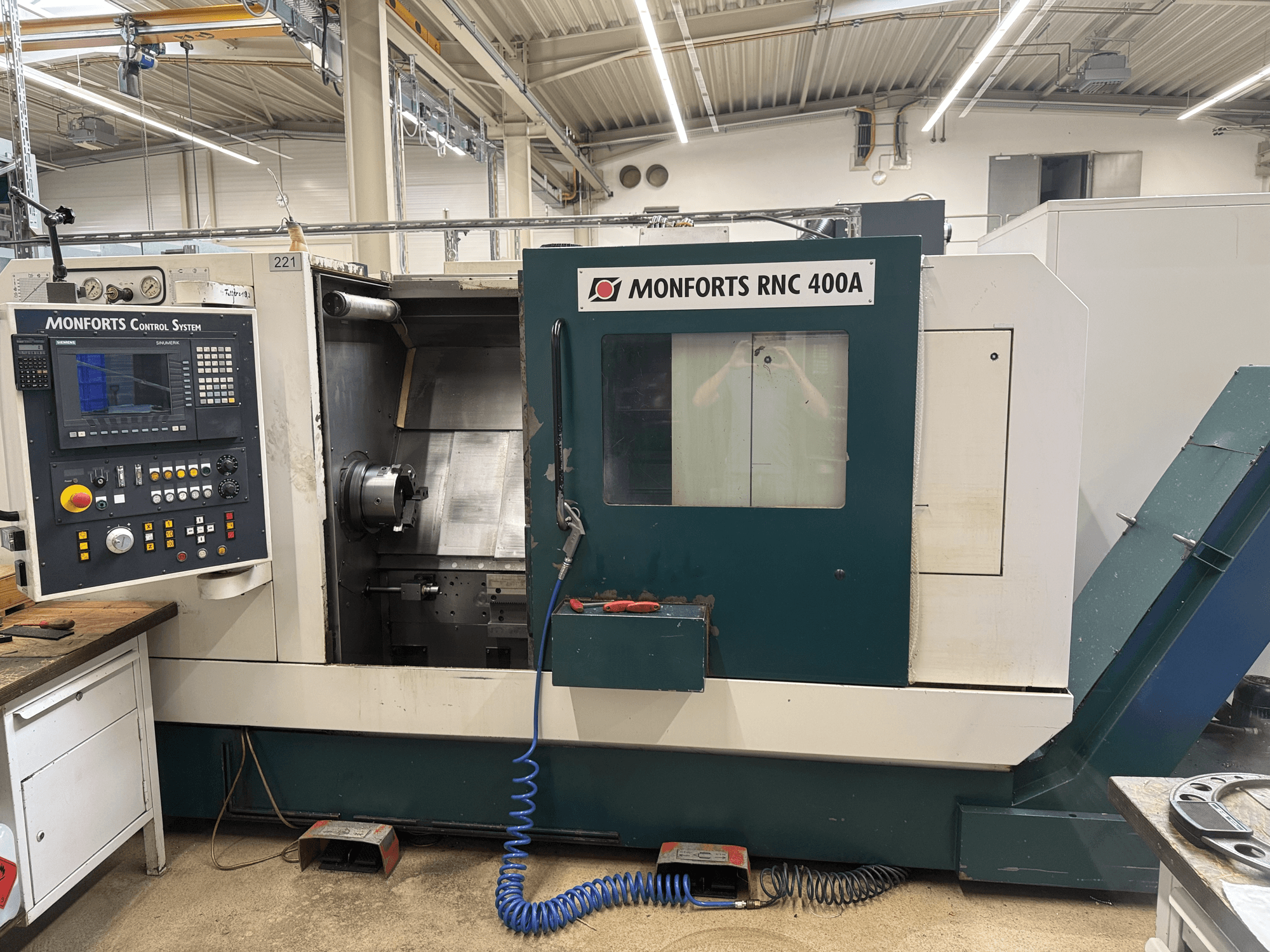

Horizontal turning machine manufactured in 2001. This Monforts RNC 400 A features a swing over bed of 410 mm and a turning length of 600 mm. It is equipped with a 12-position disc turret and a powerful three-phase induction motor with a speed range of 30-4000 rpm. If you are looking to get high-quality turning capabilities, consider the Monforts RNC 400 A machine we have for sale. Contact us for further details.
Overview
- brand: Monforts
- year: 2001
- MODEL: RNC 400 A
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
Technical Information - Monforts RNC 400 A
Dimensions
- Machine Weight: 6800 kg
Movement
- Number of Axes: 2
- X-axis Travel: 410 mm
- Z-axis Travel: 280 mm
Technical Specification
- Counter Spindle: No
- Driven Tools: No
- Spindle Power: 30 kW
- Spindle Speed: 4000 RPM
Additional Information
Swing over bed: 410 mm
Swing over radial slide: 280 mm
Turning length: 600 mm
Spindle bearing diameter: 130 mm
Spindle nose: DIN 55026 A6
Bar capacity/material clearance: 65 mm
Main drive: Three-phase induction motor (100% ED/40% ED), 20.5/30 kW
Max. torque: 500 Nm
Feed drive: Three-phase servo drives with electronic safety monitoring
Rapid traverse (X/Z): 24/24 m/min
Feed force (X/Z): 7.2/10.7 kN
Tailstock: On separate guideway, manual clamping, 900 mm travel, 90 mm quill stroke, 12,000 N force
Tool turret: 12-position disc turret, DIN 69880 / VDI 3425/2, 40 mm shaft diameter (VDI 40), directional logic and plane gear positioning
Hydraulics: Central pressure oil supply for hydrostatics and clamping; hydraulic hollow clamping device (max 65 mm)
Coolant system: 310 L tank, 3 bar, 40 L/min
Control and features: 256 kB memory (expandable to 1.5 MB), DIN 66025 programming, 2D/3D simulation, RS-232C serial interface, tool compensation (up to 600 tools), constant cutting speed, thread cutting/tapping
Construction: 60° slant bed, steel welded construction on reinforced concrete base with 3-point support; hydrostatic guides (X-axis)
Tool measurement setup
Chip conveyor interface (interface only)
Power supply: 3x400 V (+10%), 50 Hz, total connected load 20.5 kW (41 kVA)
OPTIONAL: mounts, flanges, and reducer tubes
The tailstock can only be positioned manually, whereas the quill stroke is programmable.
The distance between the face of the chuck and the maximum turning length is approx. 610 mm.
The distance between the face of the chuck and the extended quill tip is approx. 1000 mm.
The distance between the face of the chuck and the retracted tailstock without the quill tip is approx. 1160 mm.
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
