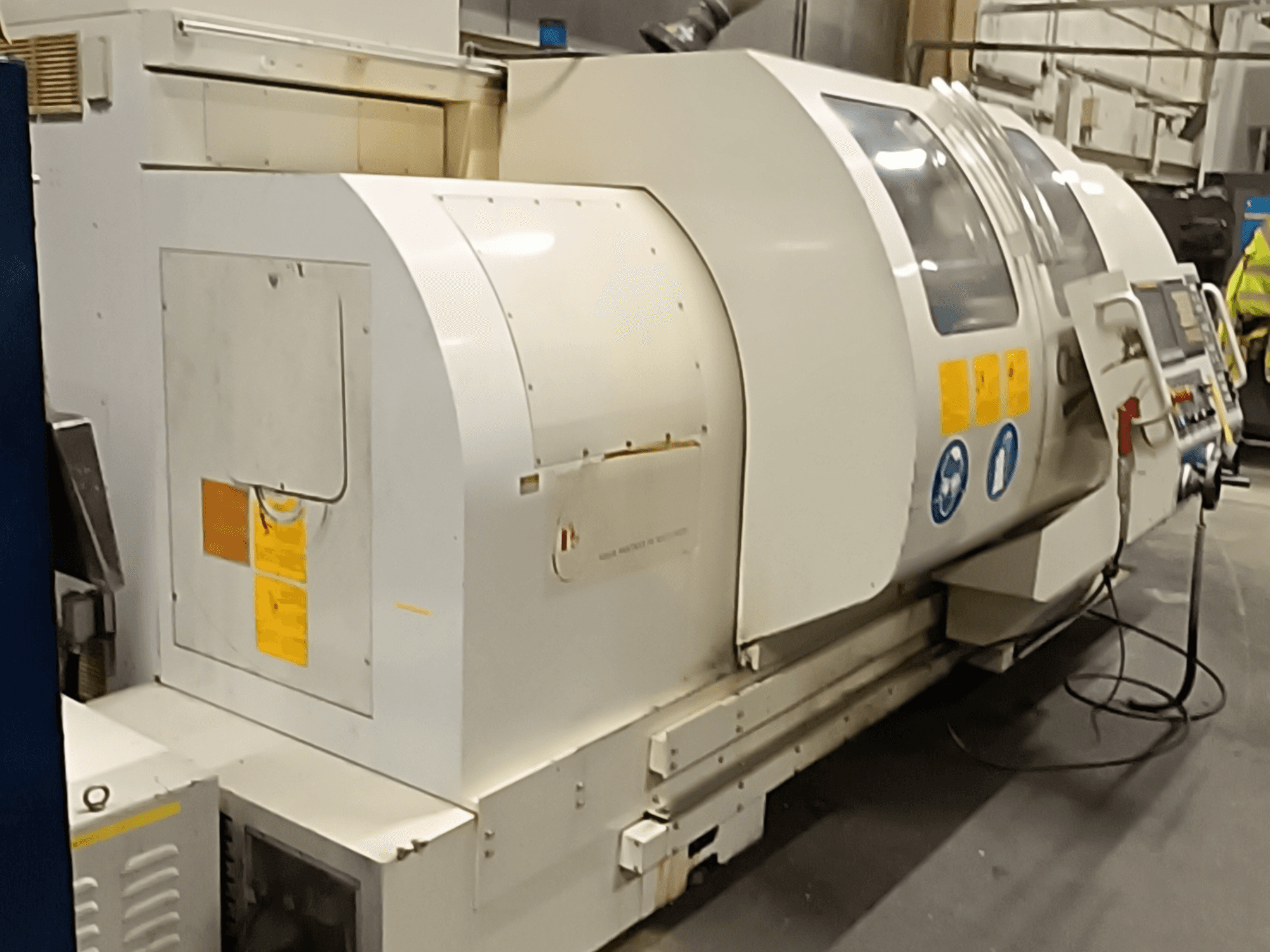

MONDIALE - BNC-2260XLBE-TUR-MON-2008-00001

Swing over bed: 550 mm

Swing in gap: 790 mm

Swing over cross slide: 310 mm

Max. turning length: 1500 mm

Bar capacity (hyd. chuck cylinder): 69 mm (91 mm option)

Gap length from spindle nose surface: 283 mm

Max. workpiece weight (with tailstock): 2000 kg

Spindle speed range (choice 1): 80–3500 rpm (82 mm bore)

Spindle speed range (choice 2): 80–2400 rpm (82 mm/106 mm bore)

Spindle nose: A2-8 / D1-8 (82 mm); D1-8 / A1-11 (106 mm)

Spindle hole diameter: 82 mm (std.) / 106 mm (option)

Main motor power: 11/15.5 kW (std.) / 15/22 kW (opt.)

Number of tool stations: 8

Tool shank: 40 mm

Turret indexing time: 0.42 s (BARUFFALDI)

X/Z axis rapid traverse: 15 m/min

Positioning accuracy: 0.005 mm

Repeatability: 0.005 mm

X axis feed motor torque: 9.3 Nm

Z axis feed motor torque: 14.8 Nm

Ballscrew X axis: 32×5-C5

Ballscrew Z axis: 45×10-C5

Tailstock quill stroke: 150 mm

Tailstock quill diameter: 80 mm (std.) / 100 mm (opt.)

Tailstock quill taper: MT 5

Coolant pump motor: 450 W

Coolant pump capacity: 55 L/min

Lubrication pump motor: 25 W
