MIKRON VCP 710

Photo Gallery

MIKRON - VCP 710DE-MIL-MIK-1998-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used MIKRON VCP 710 Vertical Machining Center

Show in original language

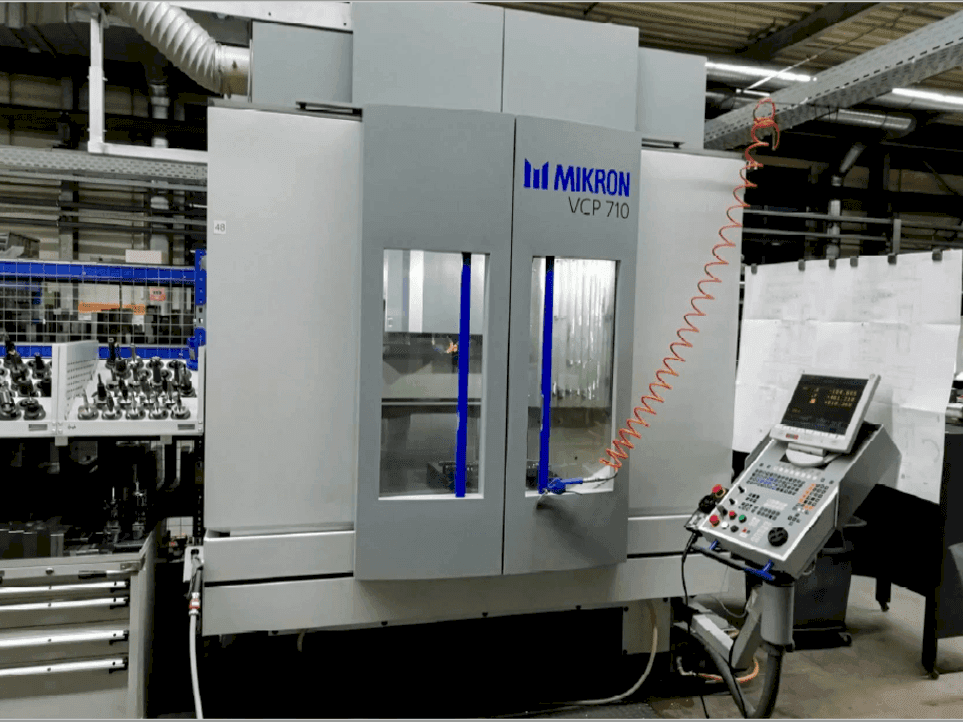

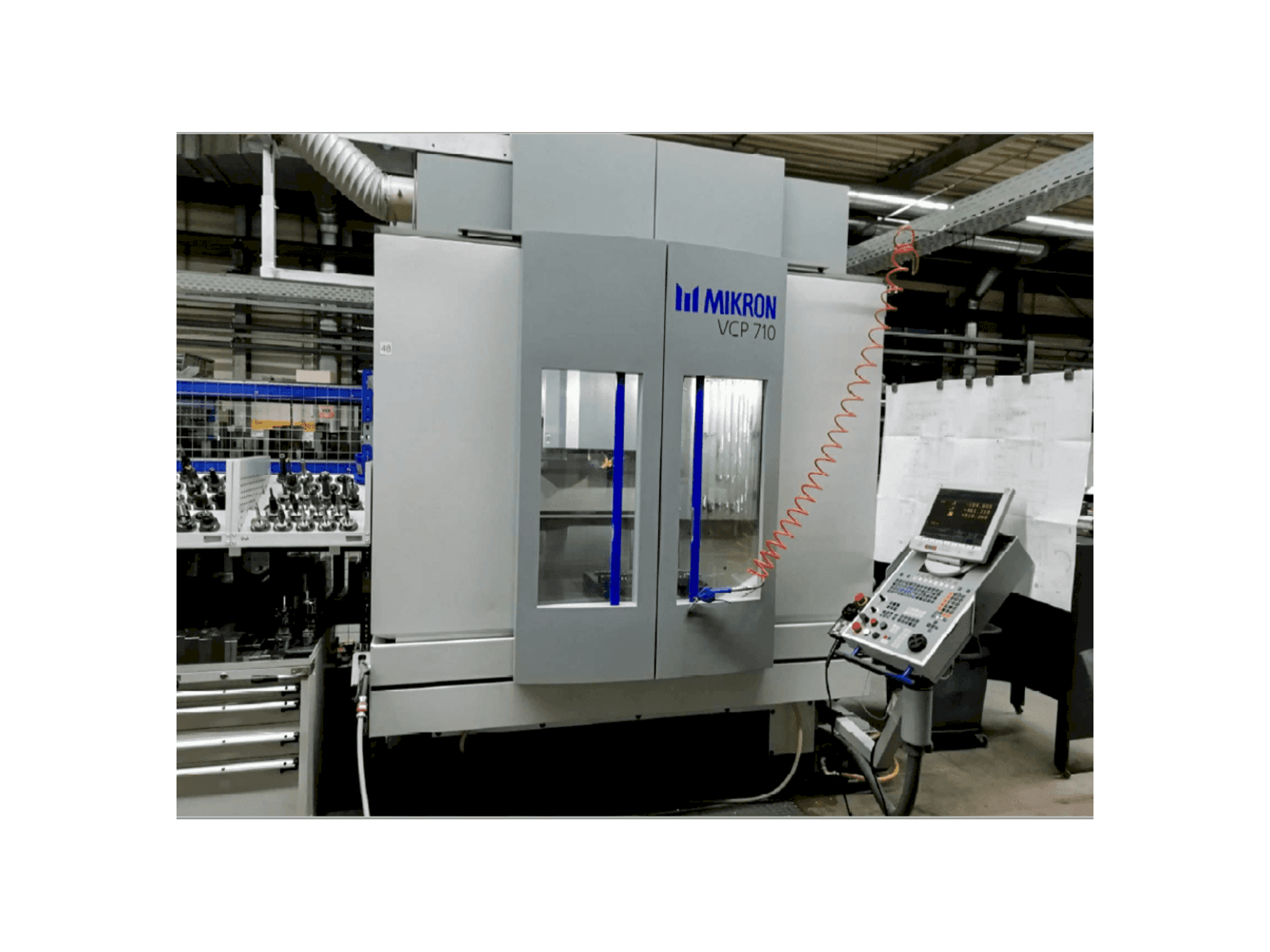

This MIKRON VCP 710 Vertical Machining Center was built in the year 1998 in Switzerland. It is equipped with a Heidenhain TNC 426 M control unit. This 3 axis machine incorporates a spindle speed up to 20000 rpm.

Overview

brand: MIKRON
year: 1998
MODEL: VCP 710
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - MIKRON VCP 710

Control Unit

Control Brand: HEIDENHAIN
Control Model: TNC 426 M

Dimensions

Machine Depth: 4000 mm
Machine Height: 3100 mm
Machine Weight: 10000 kg
Table Length: 900 mm
Table Load: 1600 kg
Table Width: 600 mm

Movement

Number of Axes: 3
X-axis Travel: 710 mm
Y-axis Travel: 500 mm
Z-axis Travel: 500 mm

Technical Specification

Spindle Power: 12 kW
Spindle Speed: 20000 RPM

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
