➤ Used MHG SMG 160 - Machine Tool For Sale | gindumac.com

Show in original language

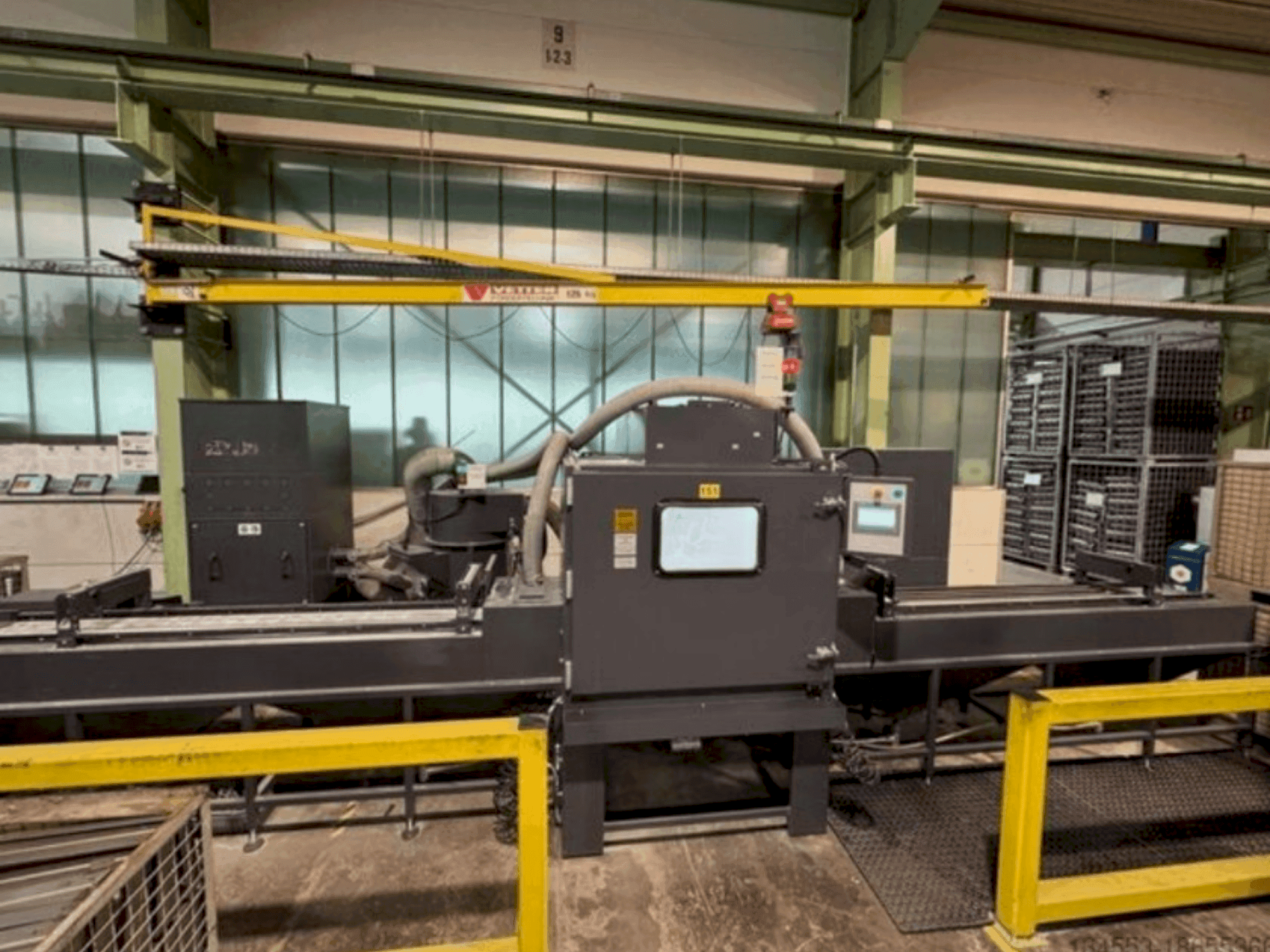

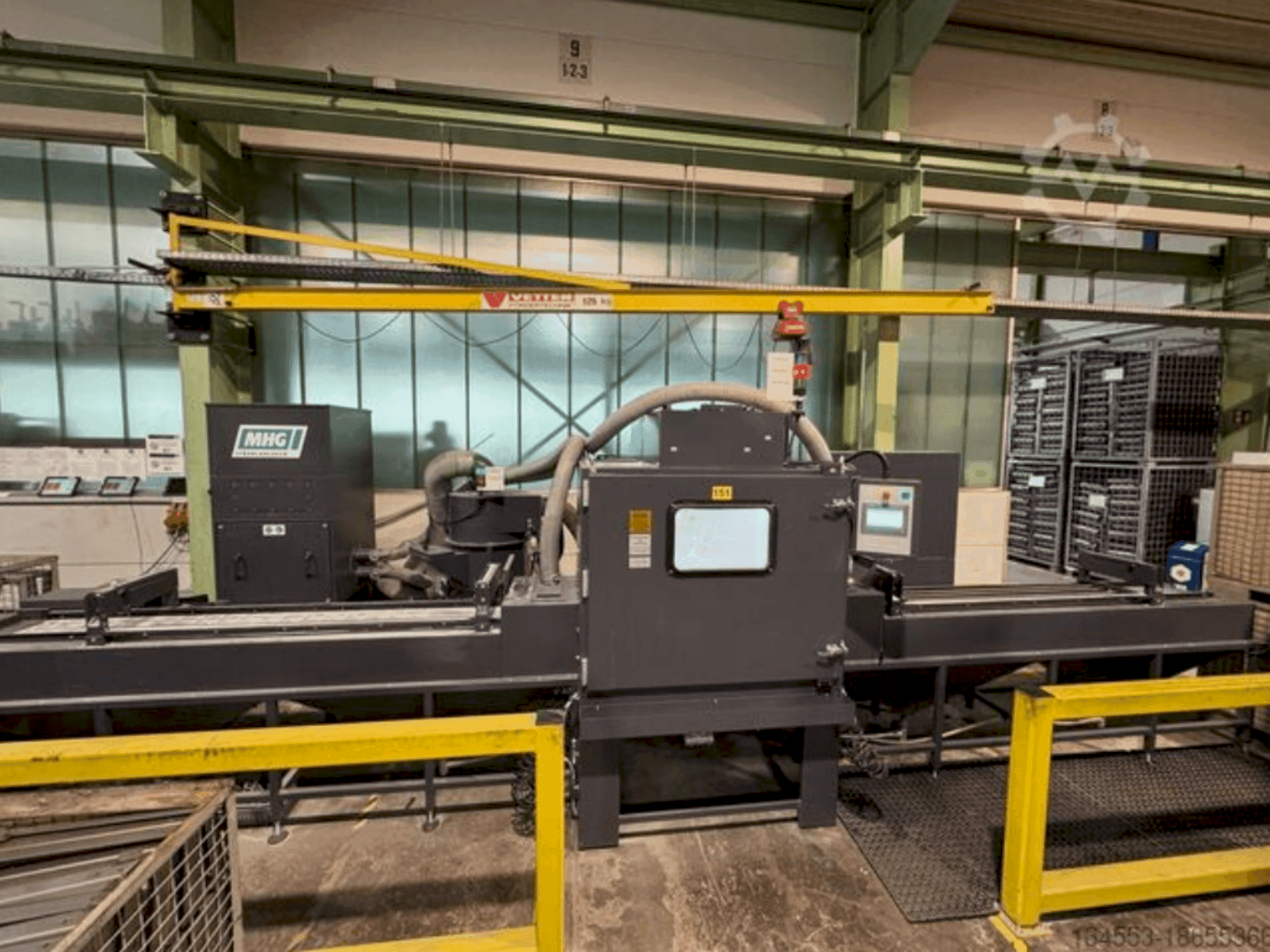

This MHG SMG 160 was manufactured in 2019. It features a complete system size of 2300x7600x1500mm and weighs 2100kg. Equipped with a SIEMENS Simatic S7 PLC for control, it includes a recovery system and filter cabinet for efficient operation. The blasting cabinet is enhanced with wear protection and LED lighting. Consider the opportunity to buy this MHG SMG 160. Contact us for more information.

Overview

brand: MHG
year: 2019
MODEL: SMG 160
production hours: 1022
application type: Other Machine Tools
Location: Germany
machine type: Machine Tool
control unit brand: SIEMENS

Technical Information - MHG SMG 160

General Data

Measurements width: 7600 mm
Measurements depth: 1500 mm
Measurements height: 2300 mm
Machine weight: 2100 kg

Control Unit

Brand: SIEMENS
Model: SIMATIC HMI

Additional Information

Power: Hard-wired via terminal block, 230/400V/PE/N, 50 Hz
Conveyor belt speeds: 9.6 / 24 / 38 mm/sec
Max. workpiece dimensions: 300 x 50 mm
Max. surface load: 50 kg
Adjustable lateral guidance of components on conveyor belts
Blasting nozzles: 4 x 8 mm boron carbide, individually adjustable
Blasting modes: Continuous or intermittent
Travel path: Horizontal stroke, 400 mm stroke length
System control: Siemens Simatic S7 PLC
Cabinet: 2 service/adjustment doors; front door with pneumatic baffle plate
Lighting: 2x LED inside blasting cabinet
Wear protection package in cabinet
Media history: Operated exclusively with glass beads (low-wear)
Operating hours: 1,022 h (as of Dec 13, 2023; system no longer in use)
Color: RAL 7024 graphite gray
Production date: March 2019
Condition: Good to very good

Additional equipment

Recovery system 255 with 120 L abrasive storage container; recovery of intact abrasive and separation of dust/dirt particles
Filter cabinet 1703 with 17 m² filter area and 4.0 kW fan motor

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
