➤ Used ALPHA LASER ALFlak300 M For Sale | gindumac.com

Show in original language

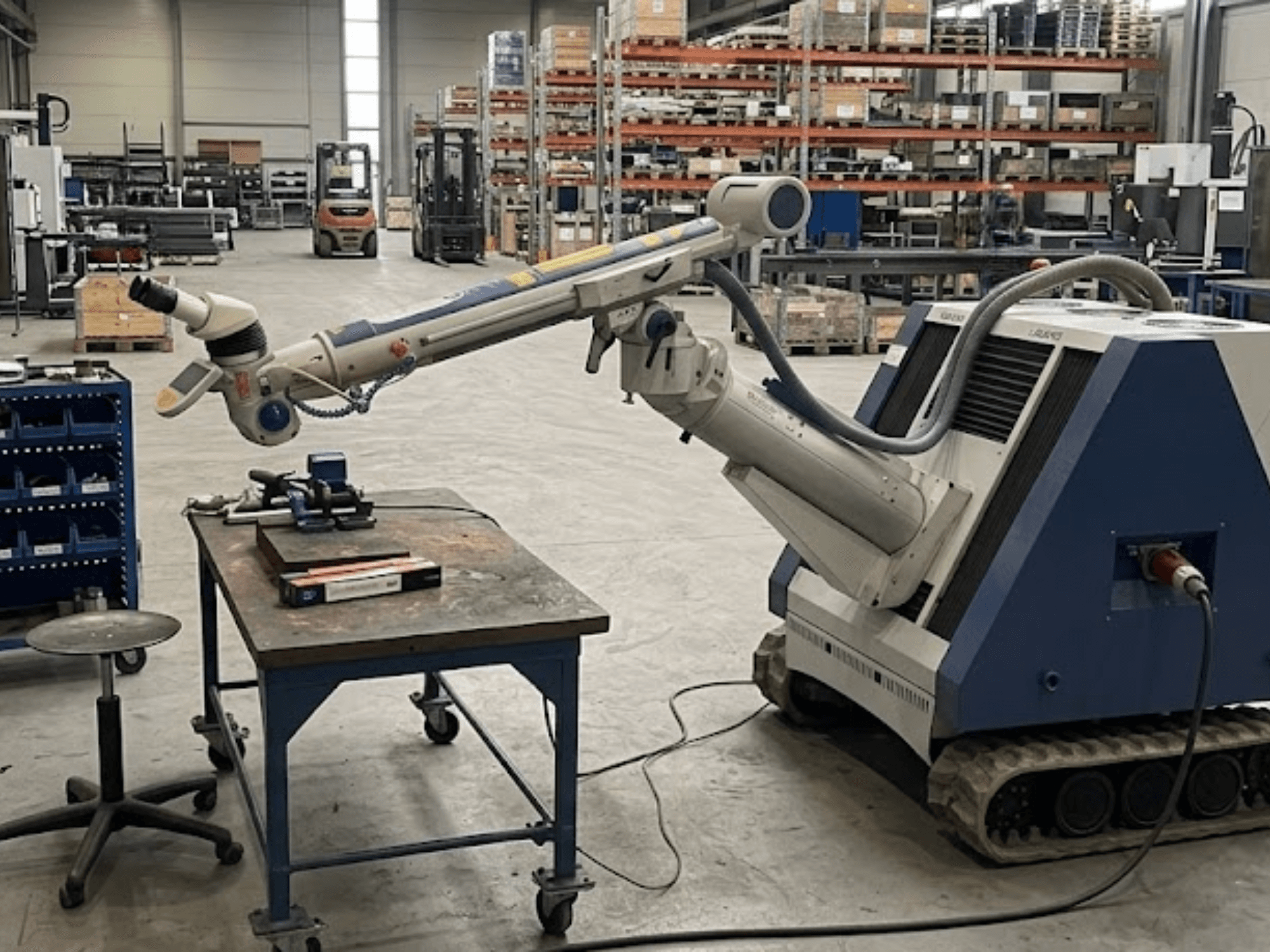

ALPHA LASER ALFlak300 M was manufactured in 2017. It features a powerful Nd:YAG laser with an average power of 300 W and a peak pulse power of 9 kW. The machine offers a movement range of 340 x 320 x 420 mm and a maximum movement speed of 25 mm/s. If you are looking to get high-quality welding capabilities, consider the ALPHA LASER ALFlak300 M machine we have for sale. Contact us for further details.

Overview

brand: ALPHA LASER
year: 2017
MODEL: ALFlak300 M
application type: Other Machine Tools
Location: Germany
machine type: Machine Tool

Additional Information

- Laser Type / Wavelength: Nd:YAG, 1064 nm

- Average Power: 300 W

- Peak Pulse Power: 9 kW

- Pulse Energy: 90 J

- Pulse Duration: 0.5 – 20 ms

- Pulse Frequency: Single pulse – 100 Hz

- Operating Mode: Pulsed

- Welding Spot Diameter: 0.2 – 2.0 mm (0.05 – 0.5 mm with micro welding option)

- Focusing Objective: 150 mm

- Movement Speed (X, Y, Z): 0 – 25 mm/s

- Movement Range (X, Y, Z): 340 x 320 x 420 mm

- Arm Deflection: 1500 mm

- Lowest / Highest Working Point: 200 mm / 1500 mm

- Observation Optics: Leica microscope attachment with eyepieces (10x magnification)

- Dimensions (W x D x H): 1200 x 1200 x 1100 mm

- Weight: Approx. 550 kg (manual base / chassis)

- Electrical Connection: 3 x 400 V / 50–60 Hz / 3 x 16 A

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
