➤ Used Zoller smileCompact For Sale | gindumac.com

Show in original language

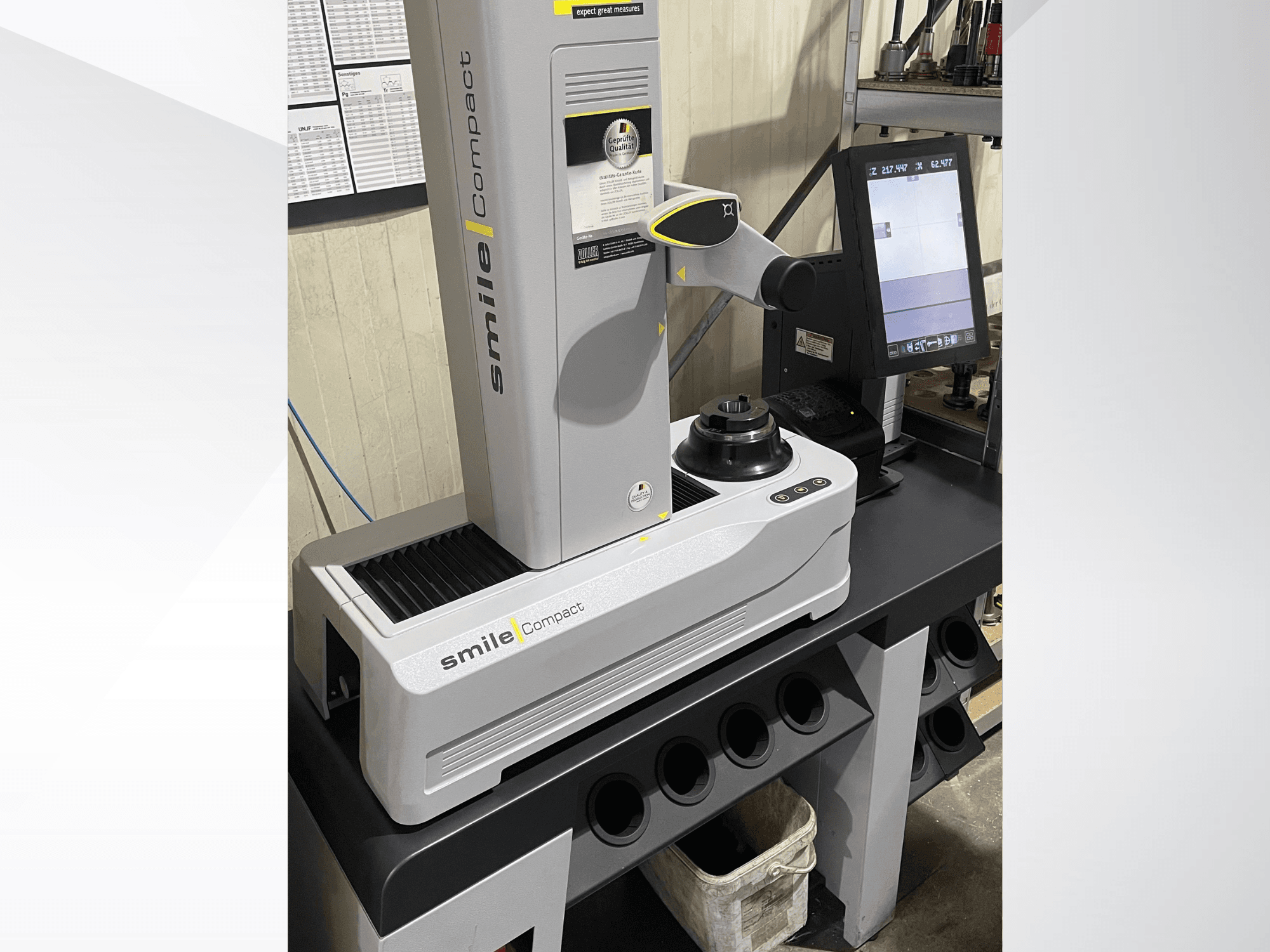

This Zoller smileCompact was manufactured in 2017. It features a measuring range of up to 350 mm in the Z-axis and up to 160 mm in the X-axis, with a maximum tool diameter of 320 mm. The machine includes an optical measuring system with a camera and comes with the ZOLLER software (pilotStarter) installed on a PC. If you are looking to get high-quality measuring capabilities, consider the Zoller smileCompact machine we have for sale. Contact us for further details.

Overview

brand: Zoller
year: 2017
MODEL: smileCompact
application type: Other Machine Tools
Location: Germany
machine type: Machine Tool

Technical Information - Zoller smileCompact

Technical Specification

Taper Size: SK 50

Additional Information

- machine type: Tool Presetter

- Voltage: 100-120 V~ / 200-240 V~

- Frequency: 50 / 60 Hz

- Power: 600 VA

- Weight: 165 kg

- Pneumatic Supply: 6-8 bar / 80-110 PSI

- Tool Holder: SK50

- Additional Adapter: SK40 adapter included

- Measuring Range Z-axis (Length): up to 350 mm

- Measuring Range X-axis (Diameter): up to 160 mm

- Maximum Tool Diameter: 320 mm

- Measuring System: Optical measuring system with camera

- Software: pilotStarter installed on PC

- Scope of Delivery: ZOLLER smileCompact unit with base frame/stand, SK50 tool holder, SK40 adapter, PC with installed ZOLLER software (pilotStarter), monitor, printer, manuals / documentation

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
