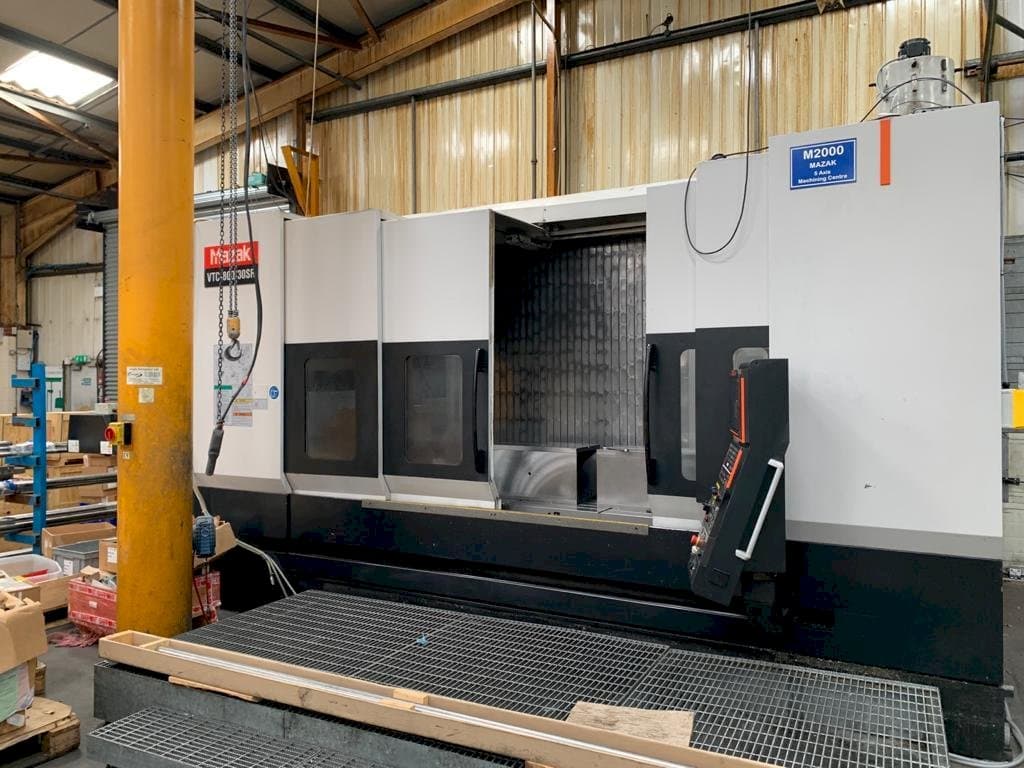

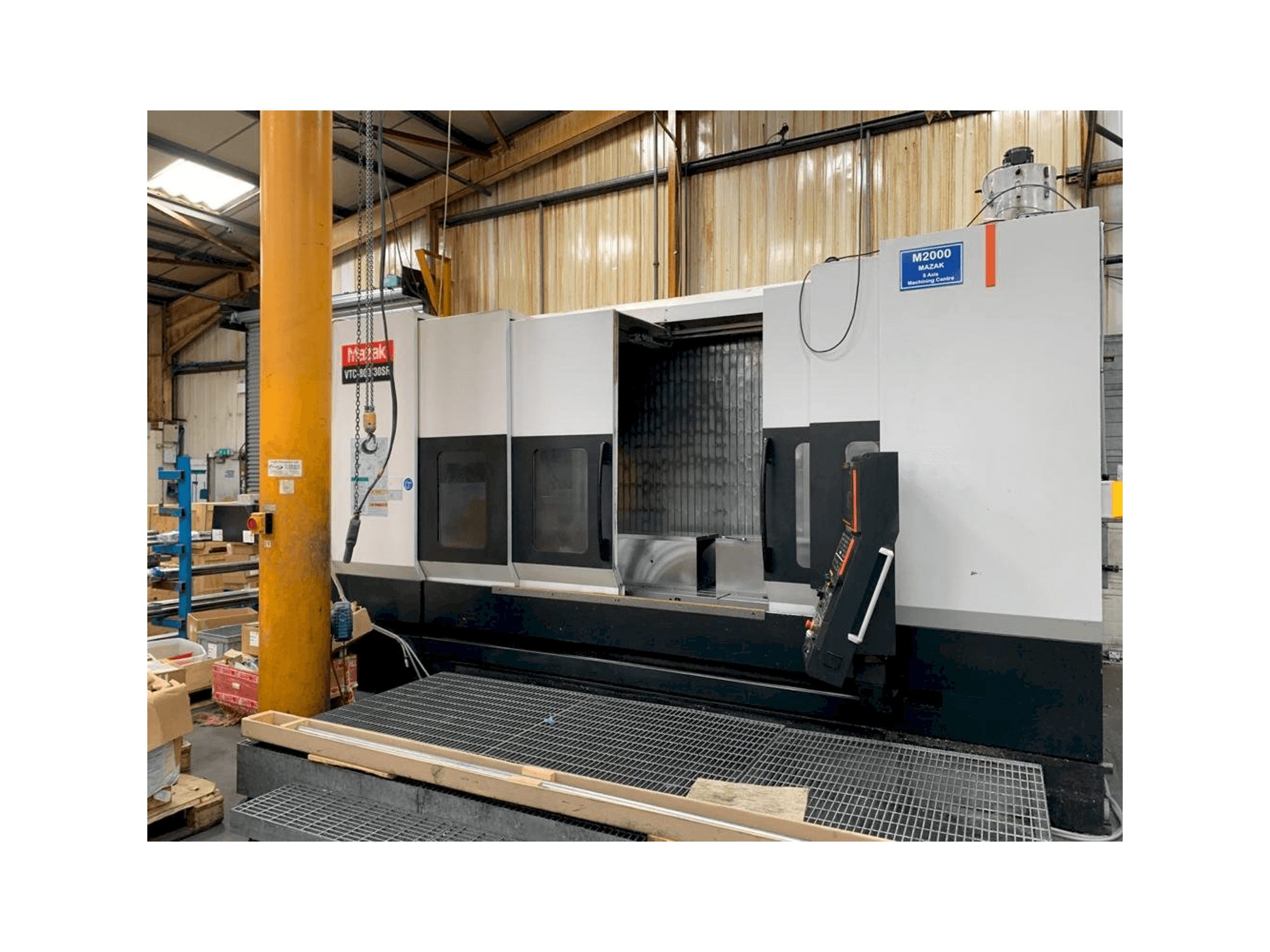

Front view of Mazak VTC-800/30SR machine
Front view of Mazak VTC-800/30SR machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

Mazak - VTC-800/30SRGB-MIL-MAZ-2009-00003

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Mazak VTC-800/30SR Vertical Machining Center was built in the United Kingdom in 2009. It has been on for 74968 hours of which 8703 are cutting hours. It is operated through a Mazatrol Matrix control unit. This 5 axis machine is can works with a spindle speed up to 18000 rpm. Includes a through spindle coolant and interlocked guards. Very good condition.

Overview

  • brand: Mazak
  • year: 2009
  • MODEL: VTC-800/30SR
  • production hours: 8703
  • application type: Milling
  • Location: United Kingdom
  • machine type: Vertical Machining Centre
  • control unit brand: MAZATROL

Technical Information - Mazak VTC-800/30SR

Control Unit

  • Control Brand: MAZATROL
  • Control Model: Matrix

Dimensions

  • Machine Depth: 3550 mm
  • Machine Height: 3262 mm
  • Machine Weight: 16100 kg
  • Table Length: 3500 mm
  • Table Width: 820 mm

Movement

  • X-axis Travel: 3000 mm
  • Y-axis Travel: 800 mm
  • Z-axis Travel: 720 mm

Technical Specification

  • Number of Tools: 30
  • Spindle Power: 35 kW
  • Spindle Speed: 18000 RPM
  • Through-spindle Coolant: Yes

Additional Information

Machine Benefits

Qualitative Machine Benefits

  • Includes machine manual
  • Very good condition

Technical Machine Benefits

  • Simultaneous axis operation
  • Rotary table
  • B-axis: +/- 110 degrees
  • Min. -max. Height under spindle: 140 - 860 mm
  • Rapid feedrate: 50 m/min
  • Through spindle coolant
  • Coolant
  • Interlocked guards

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
