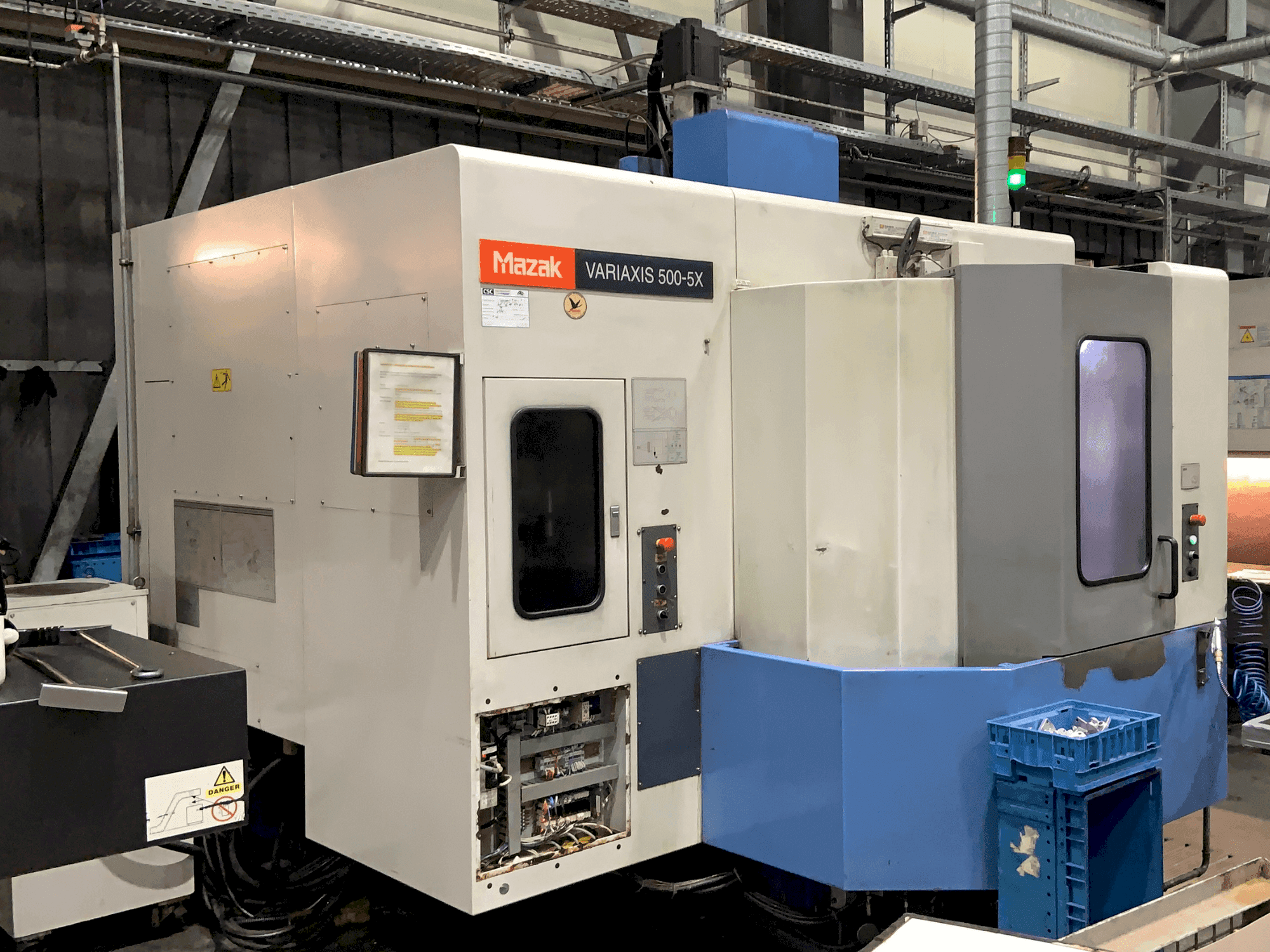

Front view of Mazak VARIAXIS 500 5X machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Mazak VARIAXIS 500 5X

Photo Gallery

Mazak - VARIAXIS 500 5XDE-MIL-MAZ-2003-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Mazak VARIAXIS 500 5X For Sale | gindumac.com

Show in original language

This 5-axis Mazak VARIAXIS 500 5X vertical machining centre was manufactured in 2003. It features a robust table size of 400 x 400 mm, capable of handling a load up to 300 kg. The spindle operates at a speed range of 35-12,000 min-1 with a maximum torque of 99Nm. It includes a 40-place tool magazine and a high-capacity 300l coolant system. Ideal for complex machining tasks. For more information about this vertical machining centre, please reach out to us.

Overview

brand: Mazak
year: 2003
MODEL: VARIAXIS 500 5X
application type: Milling
Location: Germany
machine type: Vertical Machining Centre

Technical Information - Mazak VARIAXIS 500 5X

Main drive

Spindle speed range: 12000 rpm 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 510 mm
X-AXIS Feed Force: 50000 mm/min
X-AXIS Rapid traverse: 50 m/min
Y-AXIS Movement: 510 mm
Y-AXIS Feed Force: 50000 mm/min
Y-AXIS Rapid traverse: 50 m/min
Z-AXIS Movement: 460 mm
Z-AXIS Feed Force: 50000 mm/min
Z-AXIS Rapid traverse: 50 m/min
A-AXIS Movement: -120° to +30°
C-AXIS Movement: 360°

Table

Outer length: 400 mm
Outer width: 400 mm
Table load: 300 kg

Tools

Max weight: 8 kg
Max tool diameter: 80 mm
Max tool length: 300 mm

Additional Information

Additional equipment

Tank 300l, flow rate at the pump approx. 15 l/min, pressure approx. 0.9 bar

Machine Benefits

Technical Machine Benefits

5 x 18mm t-slots, 80mm spacing
Table height from floor: 800 mm
Tool change time 4. 5s
Workpiece dimensions max. : 500 x 405 mm
Spindle nose to table: 190-650 mm
Front of column to centre of spindle: 140-600 mm

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
