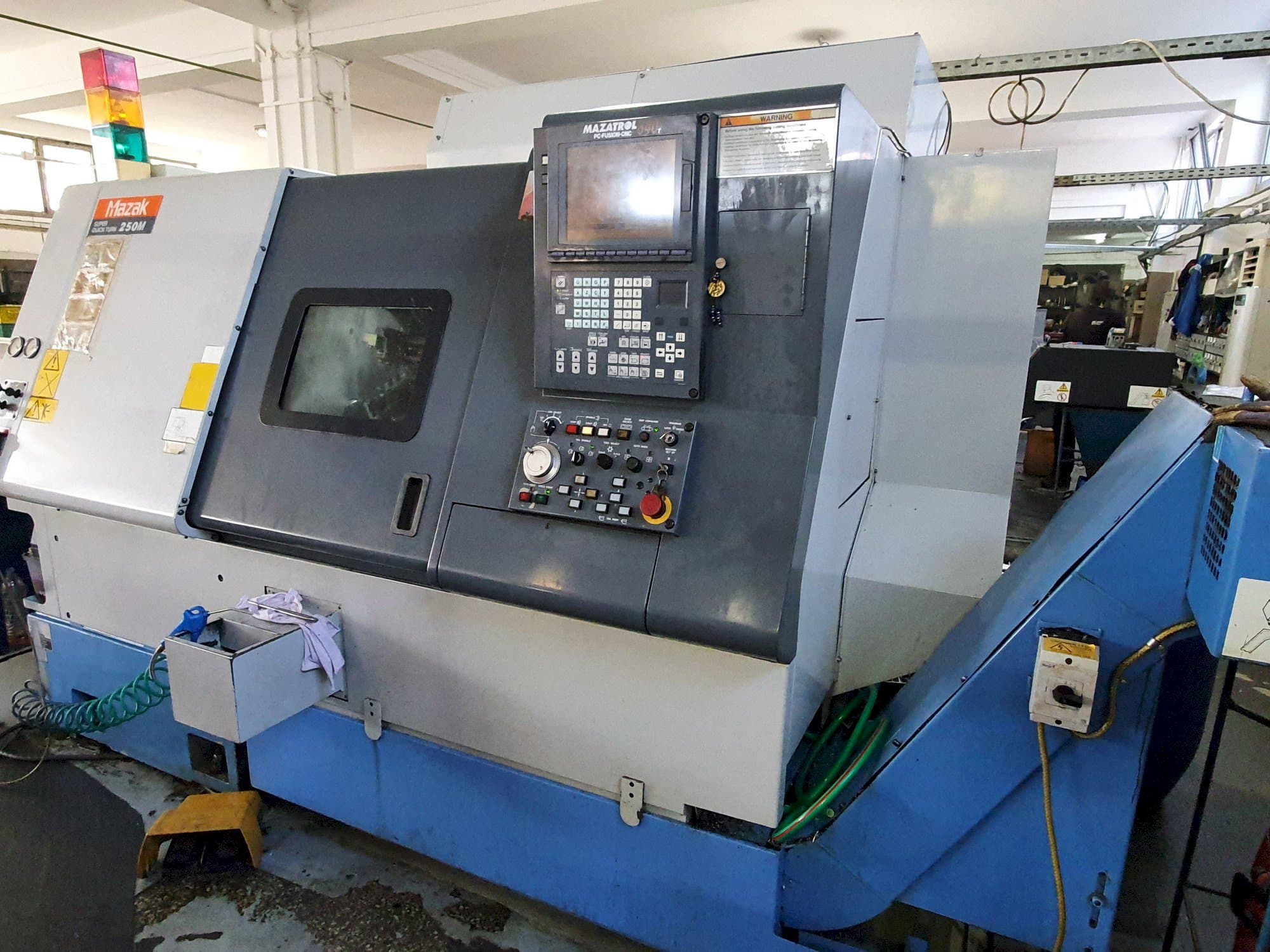

Mazak Super Quick Turn 250M Lathe

Show in original language

This Mazak Super Quick Turn 250M Lathe was built in the year 2001. It is operated through a Mazatarol PC Fusion CNC 640T control unit. This machine can perform with a speed up to 4000 rpm. This machine includes a bar feeder Fedek DH65L of 1,5m long.

Overview

brand: Mazak
year: 2001
MODEL: Super Quick Turn 250M
application type: Turning
Location: Greece
machine type: Horizontal Turning Machine
control unit brand: MAZATROL

Technical Information - Mazak Super Quick Turn 250M

Control Unit

Control Brand: MAZATROL
Control Model: PC Fusion CNC 640T

Dimensions

Machine Weight: 5050 kg

Technical Specification

Spindle Power: 18.5 kW
Spindle Speed: 4000 RPM

Additional Information

Additional equipment

bar feeder Fedek DH65L

Machine Benefits

Technical Machine Benefits

Max. Swing diameter 525 mm
Max. Machining diameter 300 mm
Max. Machining length 497 mm
Max. Bar material diameter 64 mm
Max. Torque 350 nm
Spindle nose a2 – 6 ''
Spindle bore 76 mm
Spindle indexing increments 0,001 °
Turret tool capacity 12

Extra Information

Rotary tools: Spindle speed 120-4.500 RPM, Power 3,7 kW Max. torque 35 Nm. C-axis 400 RPM Tailstock: Tailstock quill stroke150 mm, Tailstock centerMK 5, Tailstock travel400 mm Cutting feed rate: X/Z-axis0 - 5.000 mm/min, C-axis1 - 2.000 °/min Machine-data: Electrical power supply35 KVA. The machine is a full equiped with options: -kitagawa Chuck B-210, tool eye(automatic measurement), -parts catcher, -Chip conveyor, -synchronize tapping, -milling operation in all positions, -tailstock hydraulic. -Optional the machine has 6live driven tools (for face and for diameter). -all the diameter of protection plain tubes. -Navigation monitoring display -PCMCIA port -IC Port -Interface for MAZATROL DATA TRANSFER -Documentation.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
