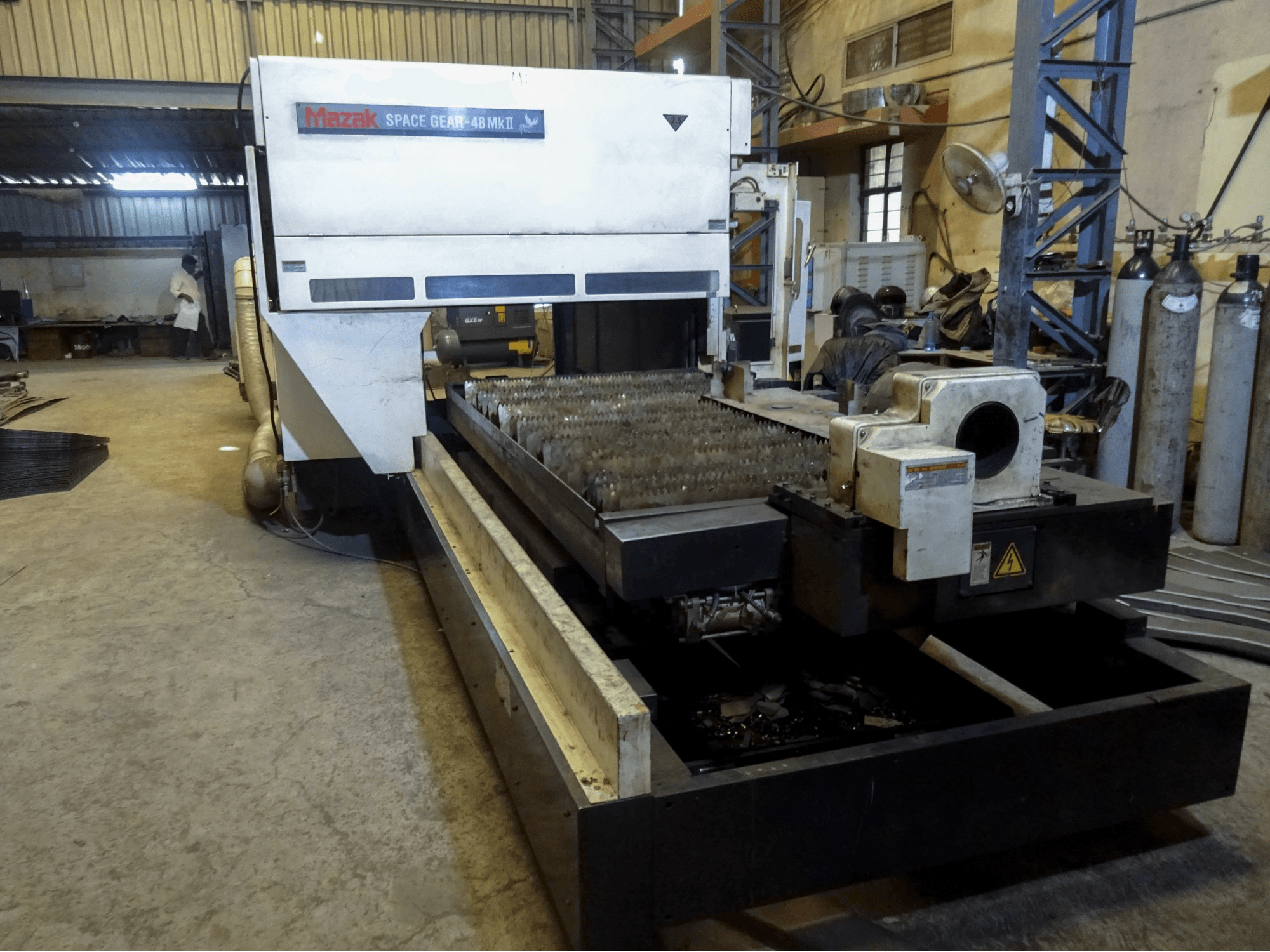

Left view 1 of Mazak SPACE GEAR-48 MKII machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Mazak SPACE GEAR-48 MKII

Photo Gallery

Mazak - SPACE GEAR-48 MKIIIN-LAS-MAZ-2011-00001

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
Mazak SPACE GEAR-48 MKII Laser Cutting Machine

Show in original language

This Mazak SPACE GEAR-48 MKII Laser Cutting Machine was manufactured in Japan in 2011, and has a working record of 22000 production hours. Operated through a FANUC L64 control unit, the machine comes with an oil nozzle, a beam alignment tool, a stabilizer and a chiller as additional equipment. In the past, this Mazak has worked mainly on mild steel (of up to 19 mm), stainless steel (of up to 6 mm) and aluminium (of up to 2 mm), producing tubes and other 3D parts for the automobile and the construction line industries.

Overview

brand: Mazak
year: 2011
MODEL: SPACE GEAR-48 MKII
production hours: 22000
application type: Cutting
Location: India
machine type: CO2 Laser Cutting Machine
availability: Sold
control unit brand: FANUC

Technical Information - Mazak SPACE GEAR-48 MKII

General Data

Measurements width: 2600 mm
Measurements depth: 7500 mm
Measurements height: 2300 mm
Machine weight: 12900 kg

Control Unit

Model: L64
Interface: DNC, Floppy
Brand: FANUC

Main drive

Laserpower: 2.5 kW
Laser type: CO2
Laser brand: FANUC

Movement

X-AXIS Movement: 2775 mm
Y-AXIS Movement: 1270 mm
Z-AXIS Movement: 420 mm

Max Material thickness

Steel: 20 mm
Stainless steel: 12 mm
Aluminum: 10 mm

Machine specific data

Power meas. by software: Yes
Power meas. at head: 2400 W
Size of cutting head 1: 7.5"

Media

Main electronic connection: 220 V / 50 Hz / 3 P
Power consumption: 67 kVA
Air pressure: 6 bar

Additional equipment

- Oil nozzle
- Beam alignment tool
- Stabilizer
- Chiller

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
