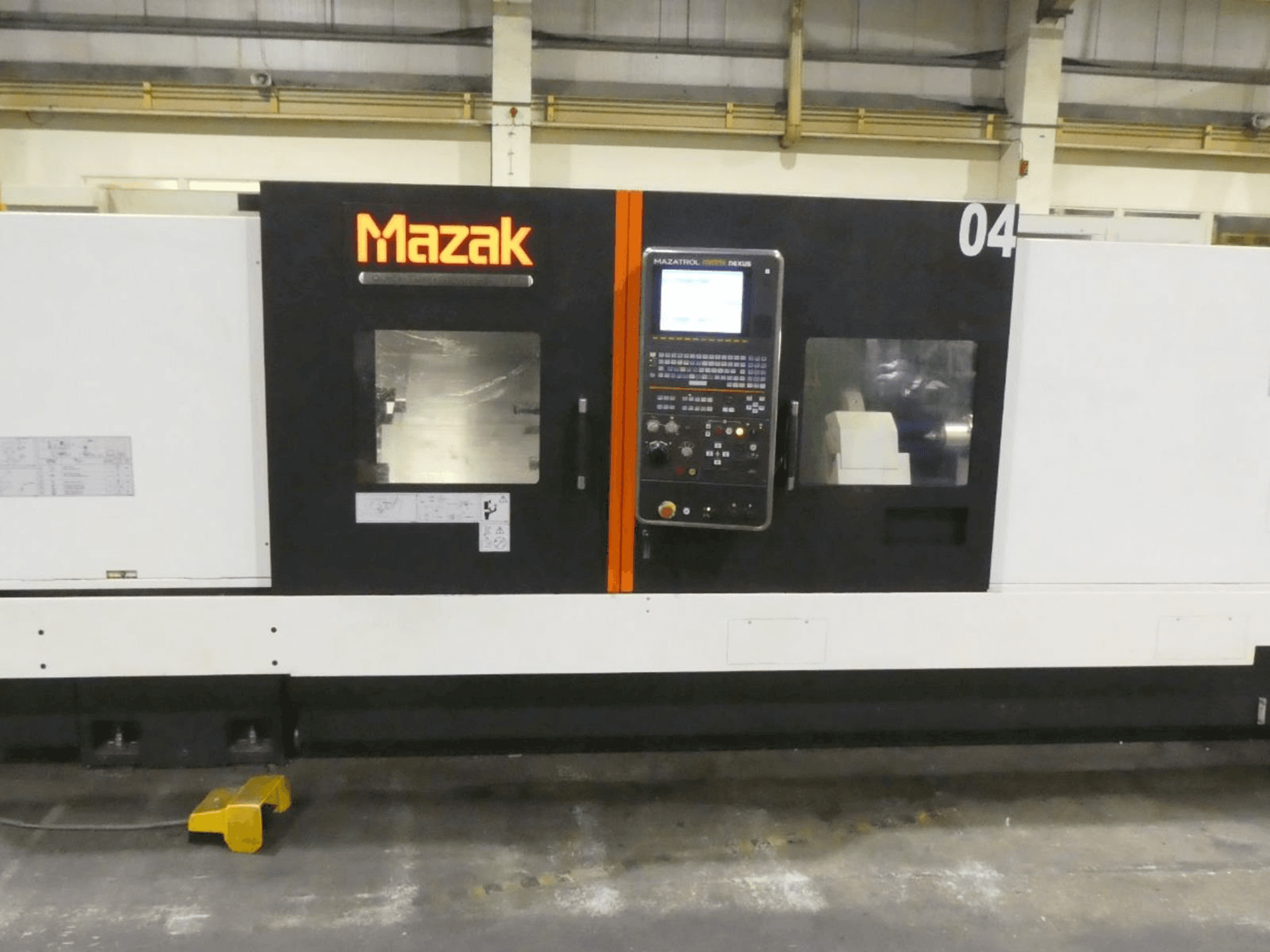

Front view of Mazak QUICK TURN NEXUS 450-II M machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Mazak QUICK TURN NEXUS 450-II M

Photo Gallery

Mazak - QUICK TURN NEXUS 450-II MGB-TUR-MAZ-2013-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
MAZAK QUICK TURN NEXUS 450-II M Lathe

Show in original language

This MAZAK QUICK TURN NEXUS 450-II M Lathe was manufactured in the year 2013 in United Kingdom and has 2169 cutting hours. It is equipped with a MAZATROL MATRIX NEX control unit and has 3 axis. The machine has a spindle speed of 35 - 2000 rpm.

Overview

brand: Mazak
year: 2013
MODEL: QUICK TURN NEXUS 450-II M
production hours: 2168
application type: Turning
Location: United Kingdom
machine type: Horizontal Turning Machine
control unit brand: MAZATROL

Technical Information - Mazak QUICK TURN NEXUS 450-II M

General Data

Measurements width: 5680 mm
Measurements depth: 2536 mm
Measurements height: 2040 mm
Machine weight: 12150 kg

Control Unit

Model: MATRIX NEXUS
Brand: MAZATROL

Main drive

Spindle speed range: 35 - 2000 1/MIN
Spindle motor power: 30 kW
Tool taper: A2-15”
Number of axis: 3

Movement

X-AXIS Rapid traverse: 30 m/min
Z-AXIS Rapid traverse: 30 m/min

Additional Information

Machine Benefits

Qualitative Machine Benefits

Driven tool holders.
Static boring and turning tool holders.
Smw hydraulic steady rest.
Programmable tailstock.
Tool setter.
Swarf conveyor.
Machine manuals

Technical Machine Benefits

Maximum swing : 845 mm
Max. Machining dia. : 580 mm
Max. Machining length: 2075 mm
Z-axis stroke: 2120 mm
X-axis stroke: 340 mm
Chuck size: 18”
Through hole diameter: 166 mm
Bar work capacity : 165 mm
Tailstock travel: 2075 mm, tailstock centre: mt no. 5

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
