Mazak QUICK TURN 28N Lathe

Show in original language

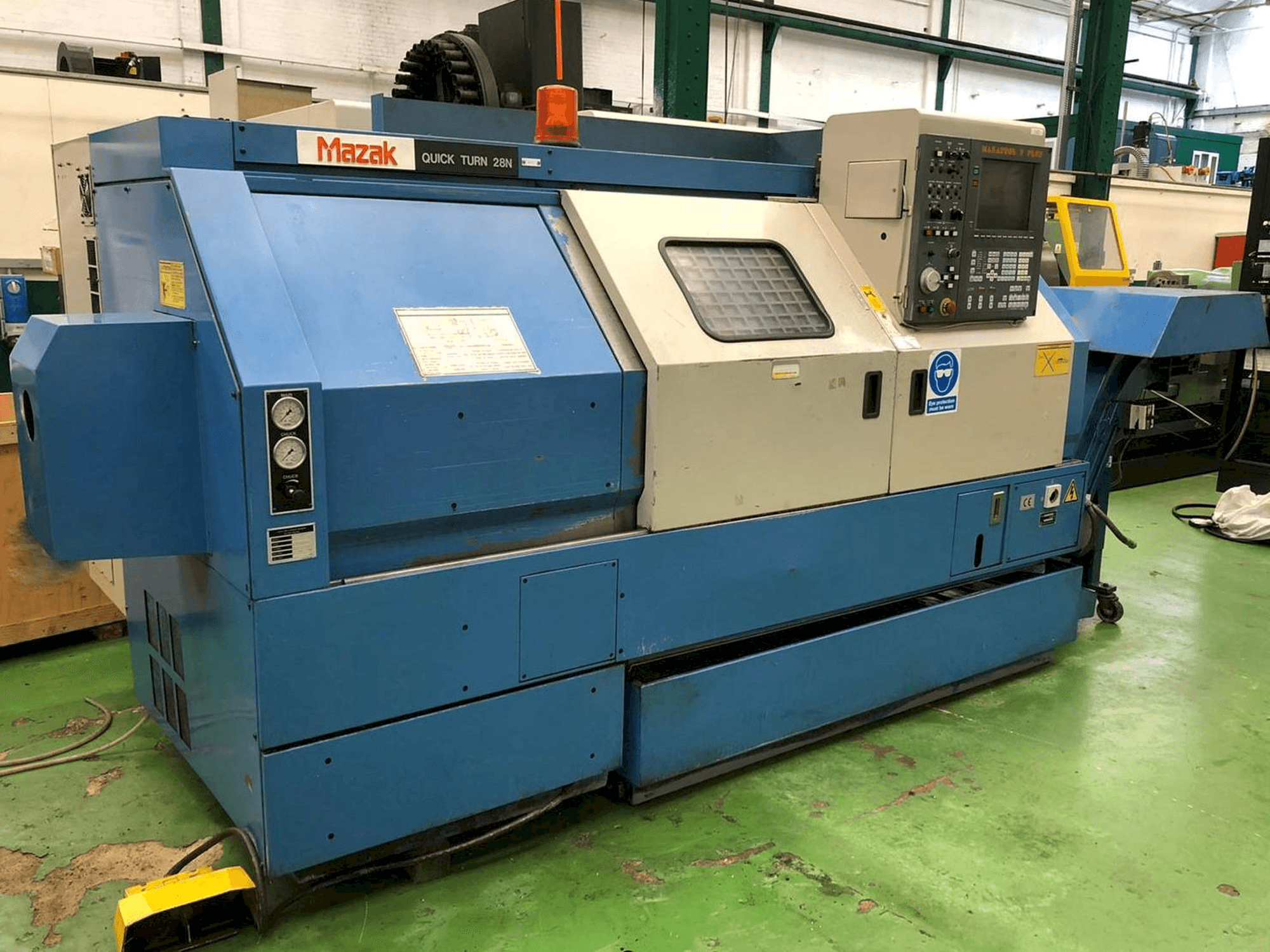

This Mazak QUICK TURN 28N Lathe was built in the year 1995. It is operated through a new MAZATROL T PLUS control unit. This machine works with a spindle speed range between 50 - 3000 rpm. Includes a built-in tool gauge, hydraulic and motorized tailstock and transformer. It is in excellent technical and aesthetic condition.

Overview

brand: Mazak
year: 1995
MODEL: QUICK TURN 28N
application type: Turning
Location: Hungary
machine type: Lathe
availability: Sold
control unit brand: MAZATROL
GINDUMAC ID: HU-TUR-MAZ-1995-00001

Technical Information

General Data

Measurements width: 3480 mm
Measurements depth: 1905 mm
Measurements height: 2032 mm
Machine weight: 5500 KG

Control Unit

Brand: MAZATROL
Model: T PLUS

Main drive

Spindle speed range: 50 - 3000 1/MIN
Spindle motor power: 22.3 / 19.4 kW
Spindle bore: D80 mm

Movement

X-AXIS Movement: 200 mm
Z-AXIS Movement: 1018 mm

Media

Chip conveyor: Yes
Internal cooling: Yes

Additional equipment

- Hinged chip conveyor
- Cooling water equipment
- Built-in tool gauge
- 3-jaw hydraulic chuck
- Hydraulic and motorized tailstock
- Transformer

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Diameter turning over the bed: 510 mm
- - Turnable diameter: 320 mm
- - Turnable length: 1000 mm
- - Bar permeability: d70 mm
- - Hydraulic chuck size: d300 mm
- - Number of revolver seats: 16
- - Tailstock quill stroke: 130 mm
Qualitative Machine Benefits:
- - Excellent technical and aesthetic condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
