➤ Used Mazak Megaturn 500 MS For Sale | gindumac.com

Show in original language

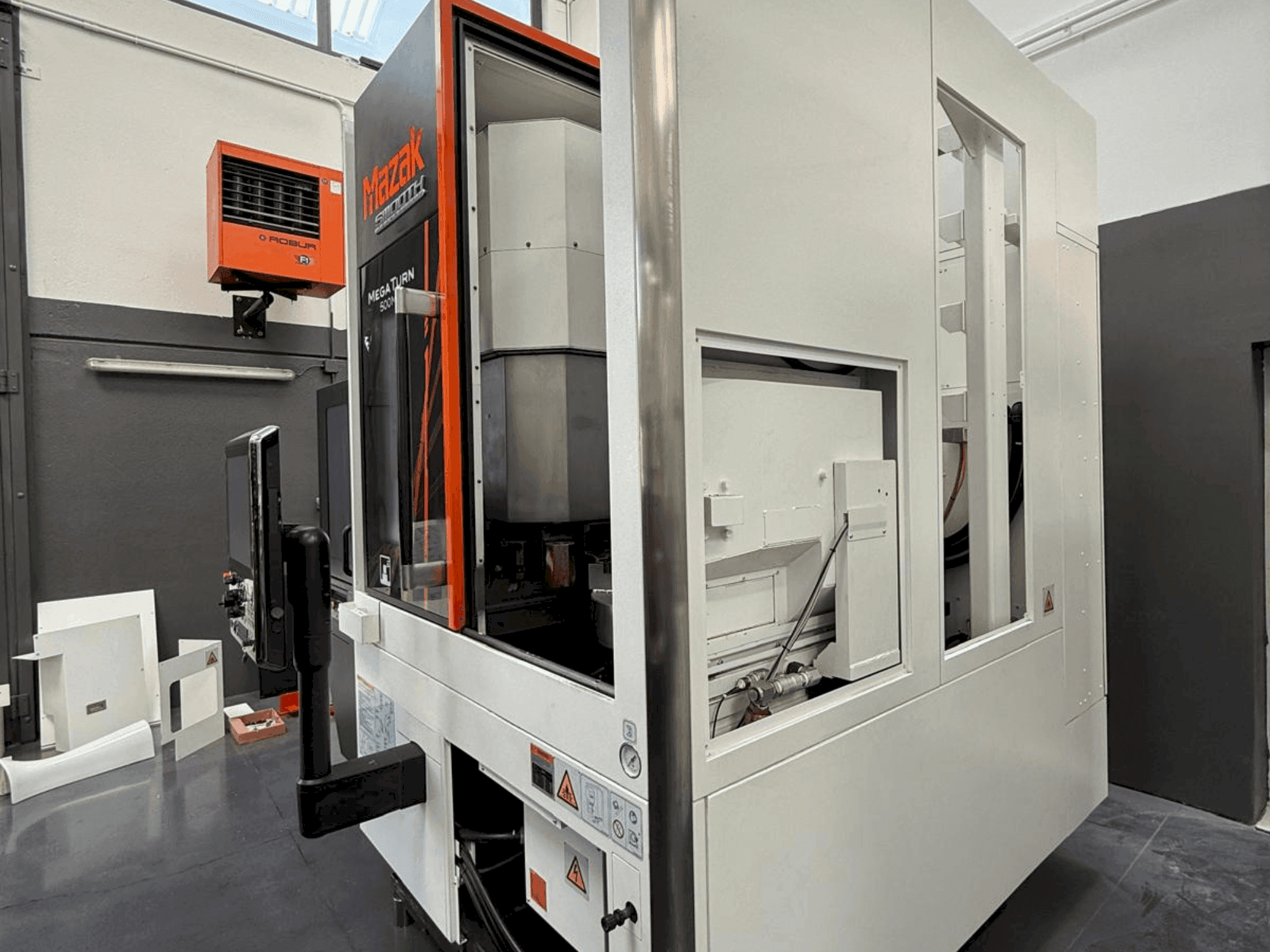

This 3-axis Mazak Megaturn 500 MS was manufactured in 2019. It features a MAZATROL Smooth G control, a maximum machining diameter of Ø500 mm, and a spindle speed up to 3,000 rpm. The machine includes a 12-station turret and a high-pressure coolant system at 15 bar. Ideal for robust vertical turning, it supports a maximum workpiece weight of 500 kg. Contact us for more information about this machine.

Overview

brand: Mazak
year: 2019
MODEL: Megaturn 500 MS
application type: Turning
Location: Italy
machine type: Vertical Turning Machine
availability: Immediately
control unit brand: MAZATROL

Technical Information - Mazak Megaturn 500 MS

Control Unit

Brand: MAZATROL
Model: Smooth G

Main drive

Spindle speed range: 3000 1/MIN
Spindle motor power: 26 kW
Number of axis: 3

Movement

X-AXIS Movement: 345 mm
X-AXIS Rapid traverse: 30 m/min
Z-AXIS Movement: 520 mm
Z-AXIS Rapid traverse: 30 m/min

Workpiece

Workpiece weight: 500 kg

Turret

Number of turrets: 1

Tools

Number of stations: 12

Media

Chip conveyor: Yes

Additional equipment

- Additional Tool Changer: 10-station ATC with Capto C6
- High Pressure Coolant System: 15 bar
- Automatic Tool Presetter

Additional Information

Machine Benefits

Technical Machine Benefits:
- - C-axis indexing: 0. 0001° increments
- - Chuck size: Ø450 mm
- - Max rotation diameter: Ø700 mm
- - Max machining diameter: Ø500 mm
- - Max machining height: 462 mm
- - Tool shank size: 25×25 mm (turning), Ø50 mm (boring)
- - Live tooling capacity: Ø25 mm drill, Ø25 mm cutter, m24 tap

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
