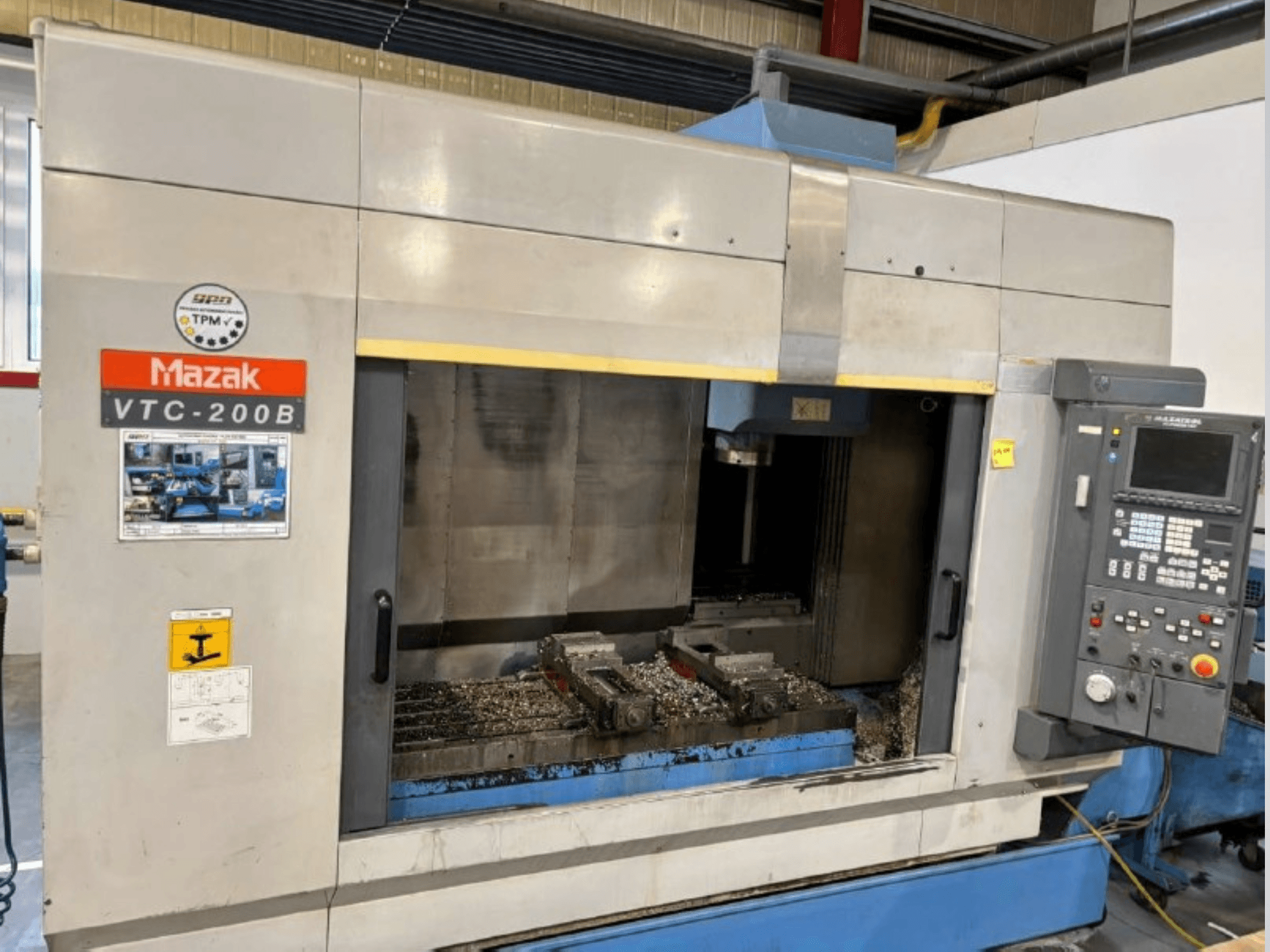

This 3-axis Mazak VTC-200B was manufactured in 1999. It features a Mazatrol PC-Fusion CNC 640 M control system, with X, Y, Z travels of 1120 mm, 510 mm, and 510 mm respectively. The machine includes a swarf conveyor, cooling through the spindle, and probes for tools and workpieces. Consider the opportunity to buy this Mazak VTC-200B vertical machining centre. Contact us for more information about this machine.
Overview
- brand: Mazak
- year: 1999
- MODEL: MAZAK VTC-200B
- application type: Milling
- Location: Czech Republic
- machine type: Vertical Machining Centre
- control unit brand: MAZATROL
Technical Information - Mazak MAZAK VTC-200B
Control Unit
- Control Brand: MAZATROL
- Control Model: PC-Fusion CNC 640 M
Dimensions
- Machine Weight: 6000 kg
- Table Length: 2820 mm
- Table Load: 800 kg
- Table Width: 655 mm
Movement
- X-axis Travel: 1120 mm
- Y-axis Travel: 510 mm
- Z-axis Travel: 510 mm
Technical Specification
- Max. Workpiece Height: 640 mm
- Spindle Speed: 10000 RPM
- Through-spindle Coolant: Yes
Additional Information
Workpiece probe
Table dimensions: 2820 x 655 mm
Table capacity: 800 kg
Tool probe
Cooling through the spindle
Swarf conveyor
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
