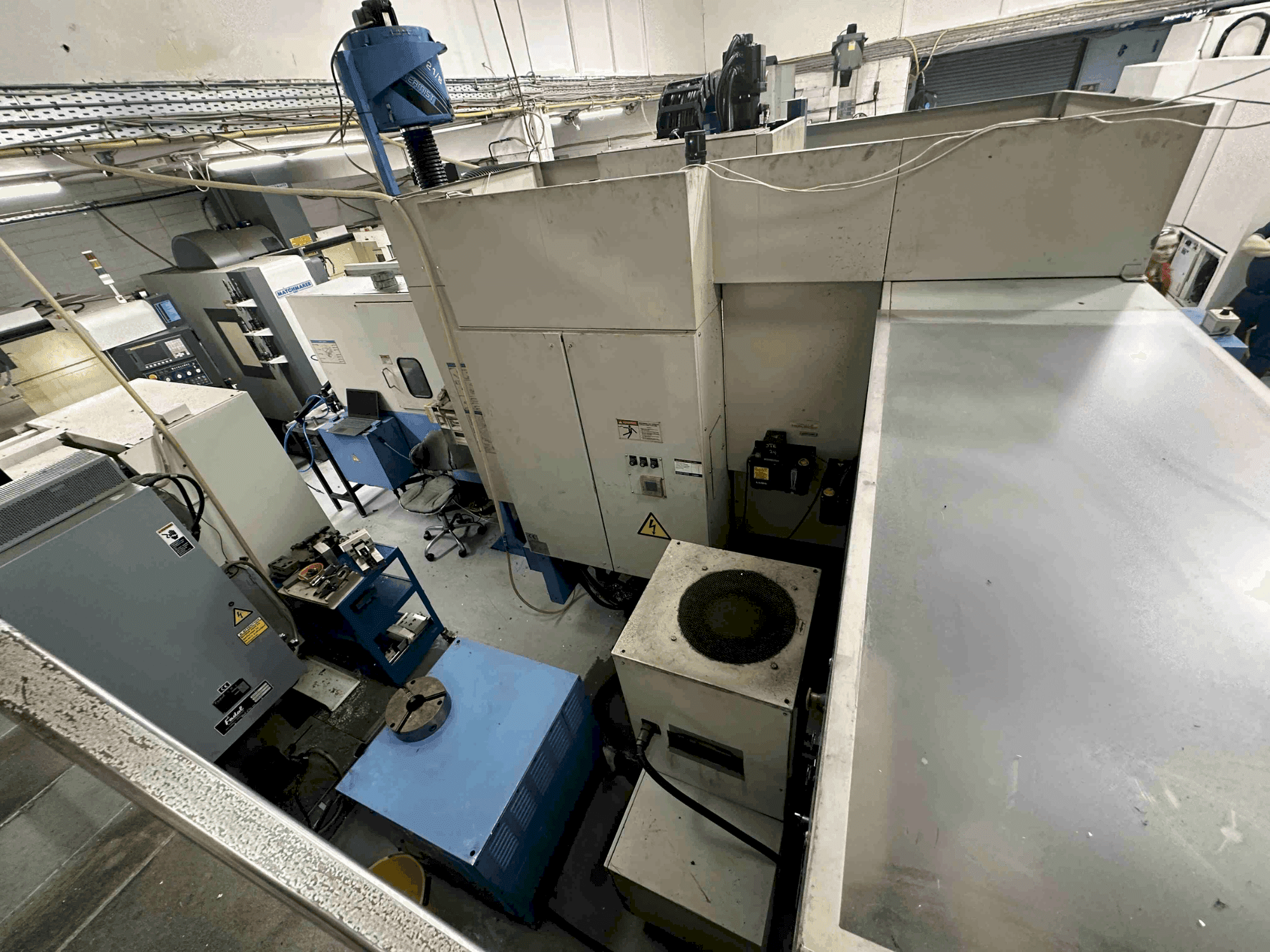

Front view of Mazak FJV-250  machine

Mazak FJV-250

Mazak - FJV-250

2000

Rs. 1,537,400
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-Axis vertical machining center, manufactured in 2000, showcases a robust build and advanced machining capabilities. Sporting a spindle speed of up to 25,000 rpm and movements of 1020mm x 510mm x 460mm in the X, Y, and Z axes respectively, it accommodates large workpieces up to 800 kg. It's configured with the high-precision Mazak Mazatrol 640M PC Fusion-CNC control system. The MAZAK FJV-250 we have for sale is ready to deliver high performance. Contact us for more information about this vertical machining center.

Overview

  • brand: Mazak
  • year: 2000
  • MODEL: FJV-250
  • application type: Milling
  • Location: Ireland
  • machine type: Machining centers (vertical)
  • availability: Immediately
  • control unit brand: MAZAK
  • GINDUMAC ID: IE-MIL-MAZ-2000-00001

Technical Information

General Data

  • Measurements width: 3000 MM
  • Measurements depth: 2400 MM
  • Measurements height: 2950 MM
  • Machine weight: 7200 KG

Control Unit

  • Brand: MAZAK
  • Model: Mazatrol 640M PC Fusion-CNC

Main drive

  • Spindle speed range: 25000 1/MIN
  • Tool taper: HSK63
  • Number of axis: 3

Movement

  • X-AXIS Movement: 1020 mm
  • Y-AXIS Movement: 510 mm
  • Z-AXIS Movement: 460 mm

Workpiece

  • Workpiece x: Maximum 1200 mm
  • Workpiece y: Maximum 550 mm
  • Workpiece z: Maximum 530 mm
  • Workpiece weight: Maximum 800 kg

Tools

  • Number of stations: 60 Station ATC

    Additional equipment

    • - 60 Station ATC (Automatic Tool Changer)
    • - Pallet/Table Changer
    • - Swarf Conveyor
    • - Renishaw MP3 Probe
    • - Oil Mist Separator
    • - High Pressure Coolant

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Ikz: yes (high pressure coolant)
        • - Exceptionally high spindle speed of 25,000 rpm allows for precision machining at high rates.
        • - Advanced control unit (mazak mazatrol 640m pc fusion-cnc) with main language in english and simultaneous axis operation for efficient multi-axis machining.
      • Qualitative Machine Benefits:
        • - Robust build with a machine weight of 7200 kg ensures stability during high-speed operations.
        • - High-pressure coolant system and oil mist separator contribute to maintaining optimal conditions for machining, extending tool life and improving part finish.

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
