Makino - U6 HEATES-EDM-MAK-2016-00001

Rs. 4,989,763
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

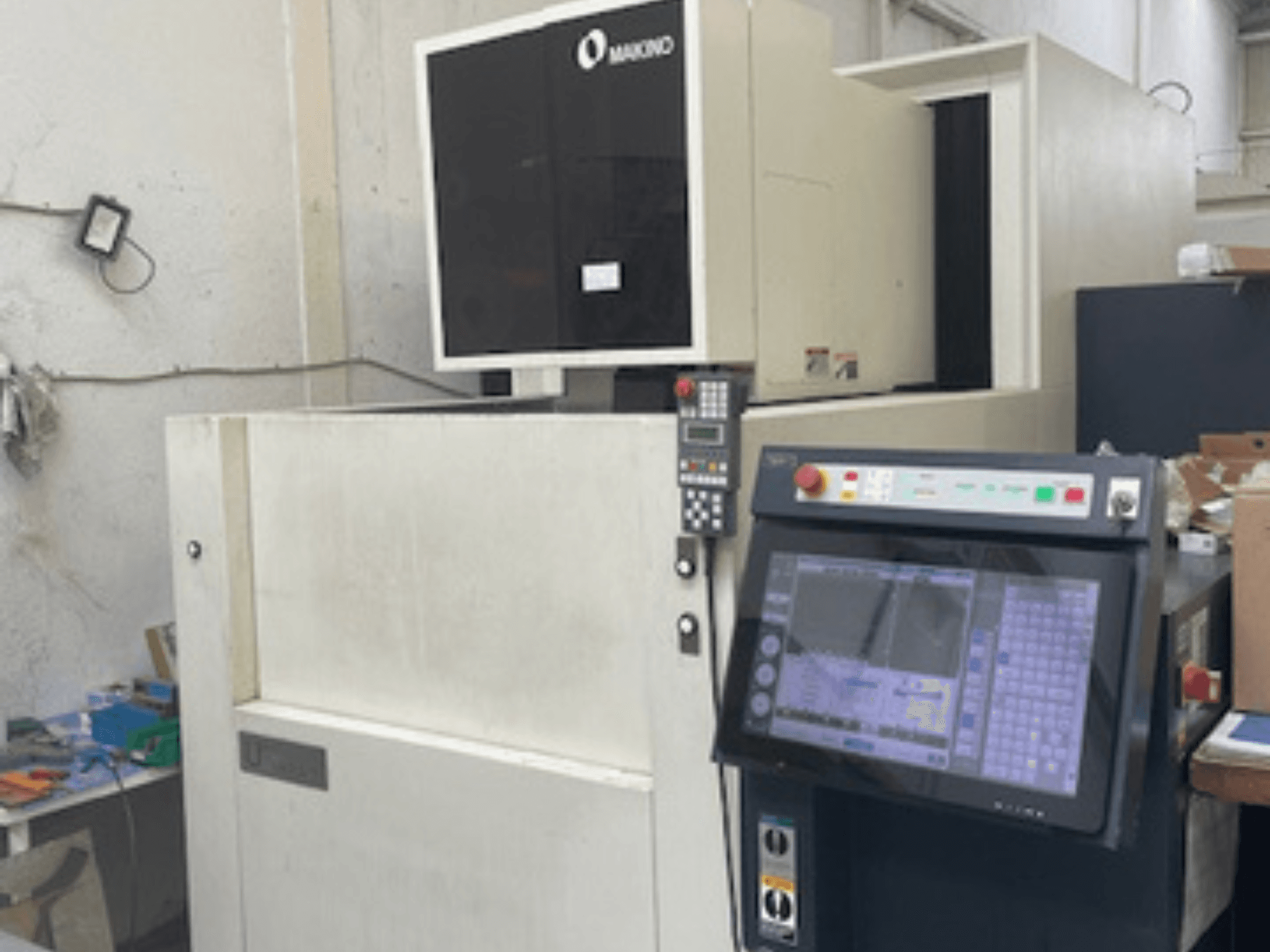

This 5-axis Makino U6 HEAT was manufactured in 2016. It features an impressive X-axis travel of 650 mm, Y-axis travel of 450 mm, and Z-axis travel of 420 mm. The machine has a maximum workpiece size of 1,000 x 800 x 400 mm and can handle a maximum workpiece weight of 1,500 kg. If you are looking to get high-quality wire EDM capabilities, consider the Makino U6 HEAT wire EDM machine we have for sale. Contact us for further details.

Overview

  • brand: Makino
  • year: 2016
  • MODEL: U6 HEAT
  • application type: EDM
  • Location: Spain
  • machine type: Wire EDM Machine

Technical Information - Makino U6 HEAT

Dimensions

  • Machine Height: 850 mm
  • Machine Length: 800 mm
  • Machine Weight: 250 kg
  • Machine Width: 780 mm

Movement

  • Number of Axes: 3
  • X-axis Travel: 185 mm
  • Y-axis Travel: 125 mm
  • Z-axis Travel: 200 mm

Technical Specification

  • Max. Wire Diameter: 0.3 mm
  • Min. Wire Diameter: 0.1 mm

Additional Information

  • Spindle speed: 150–2000 rpm

  • Spindle drive power: 0.75 kW (at 100% duty cycle)

  • Tool changer: Automatic, 10 stations

  • Tool holder: SK 30 (DIN 2080 / DIN 69871)

  • Feed rate (X/Y/Z): 5–500 mm/min

  • Rapid traverse: 500 mm/min

  • Clamping area: 420 x 125 mm

  • Max. workpiece weight: 10 kg

  • Power supply: 230 V / 50 Hz

  • Availability: Not specified

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
