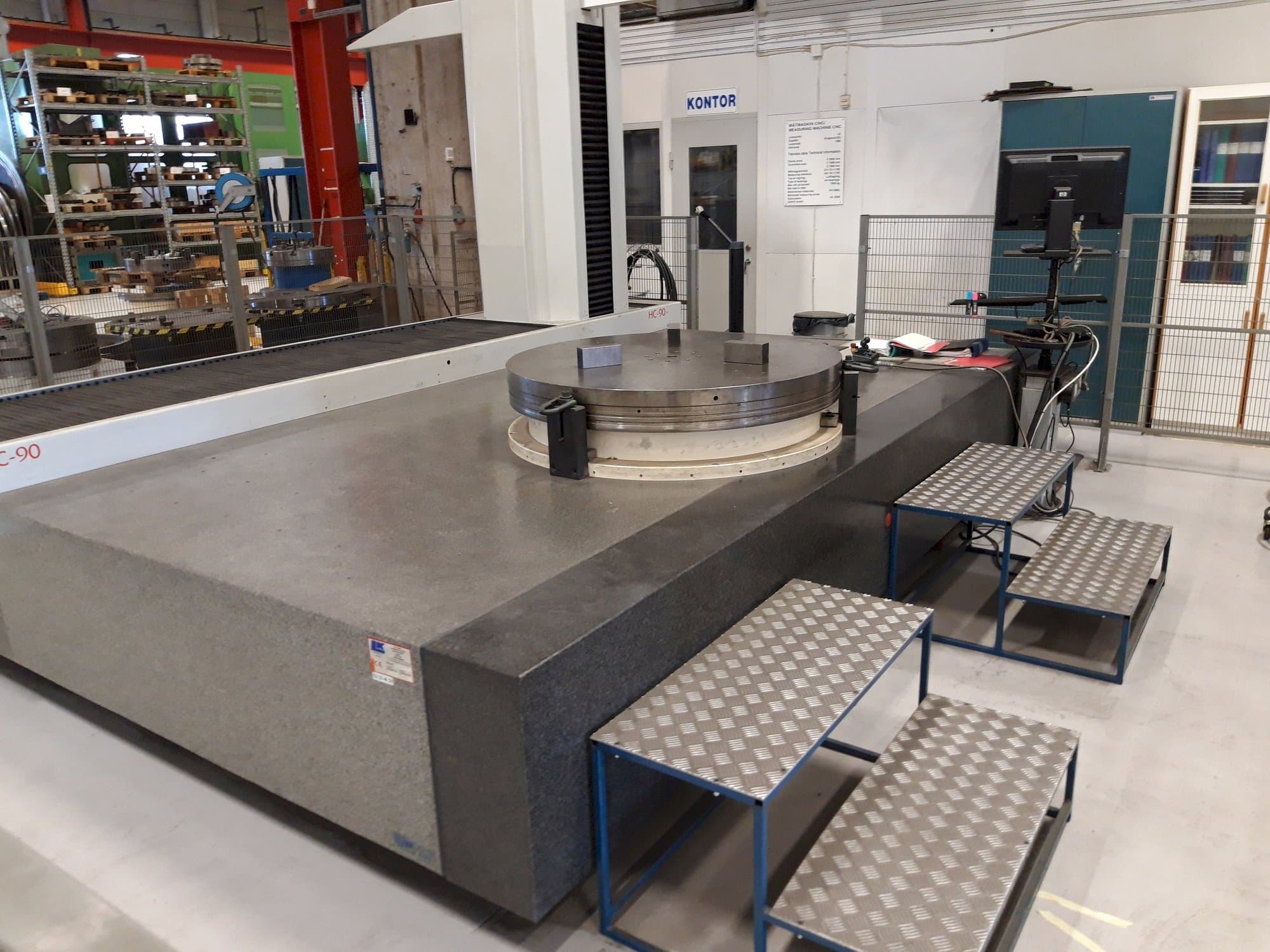

LK HC90

Machine Benefits

• Technical Machine Benefits:
  • - Infinite positioning
  • - ±184° articulation in both axis
  • - 5-axis moves - cmm and probe head
  • - Touch probe and laser scanner
  • - Range of extension arms
  • - Over travel protection
  • - Passive change rack
  • - Improved flexibility, increased accessibility, greater productivity, shorter set-up times (inferred calibration)
  • - Longer probe lengths, up to 750mm (29. 5”)
  • - Large parts with restricted access
• Qualitative Machine Benefits:
  • - Automotive body-in-white inspection, aerospace precision fabricated structures, ceramic y and z guide way, high efficiency air bearings
  • - Zero hysteresis friction drives
  • - Very high available uptime
  • - Volume range table version: 1000x400x600 to 4000x1600x2000
  • - Volumetric accuracy from 1. 9 +l/250
  • - Speed from 850 mm/sec, acceleration from 3800 mm/sec2
  • - Volume range rail version: 4000x1200x1000 to 10000x1600x2500
  • - Volumetric accuracy from 8. 0+l/200
  • - Speed from 40 m/min
  • - Acceleration from 7580 m/min2
