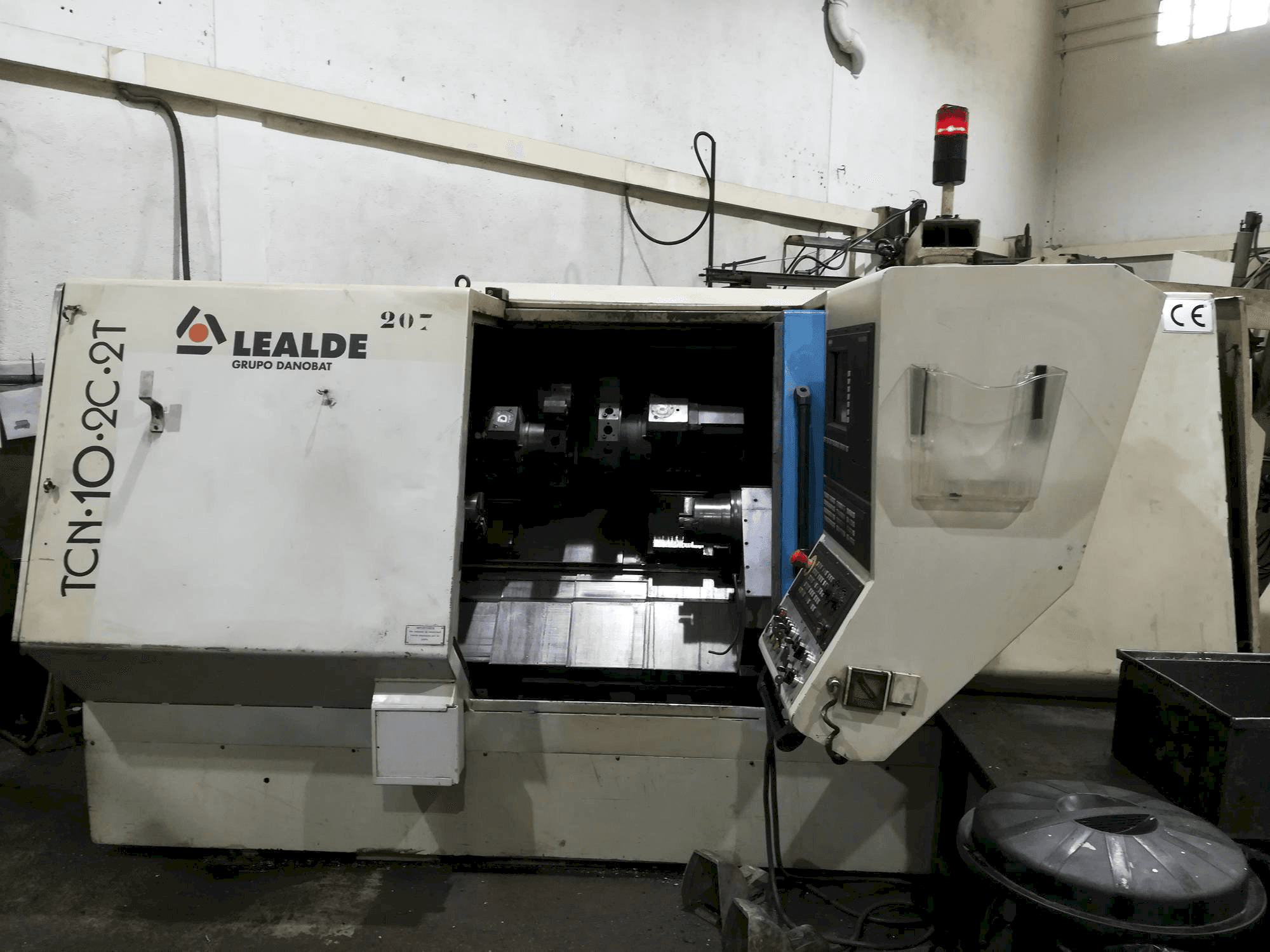

Front view of Lealde TCN 10 2C 2T machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Lealde TCN 10 2C 2T

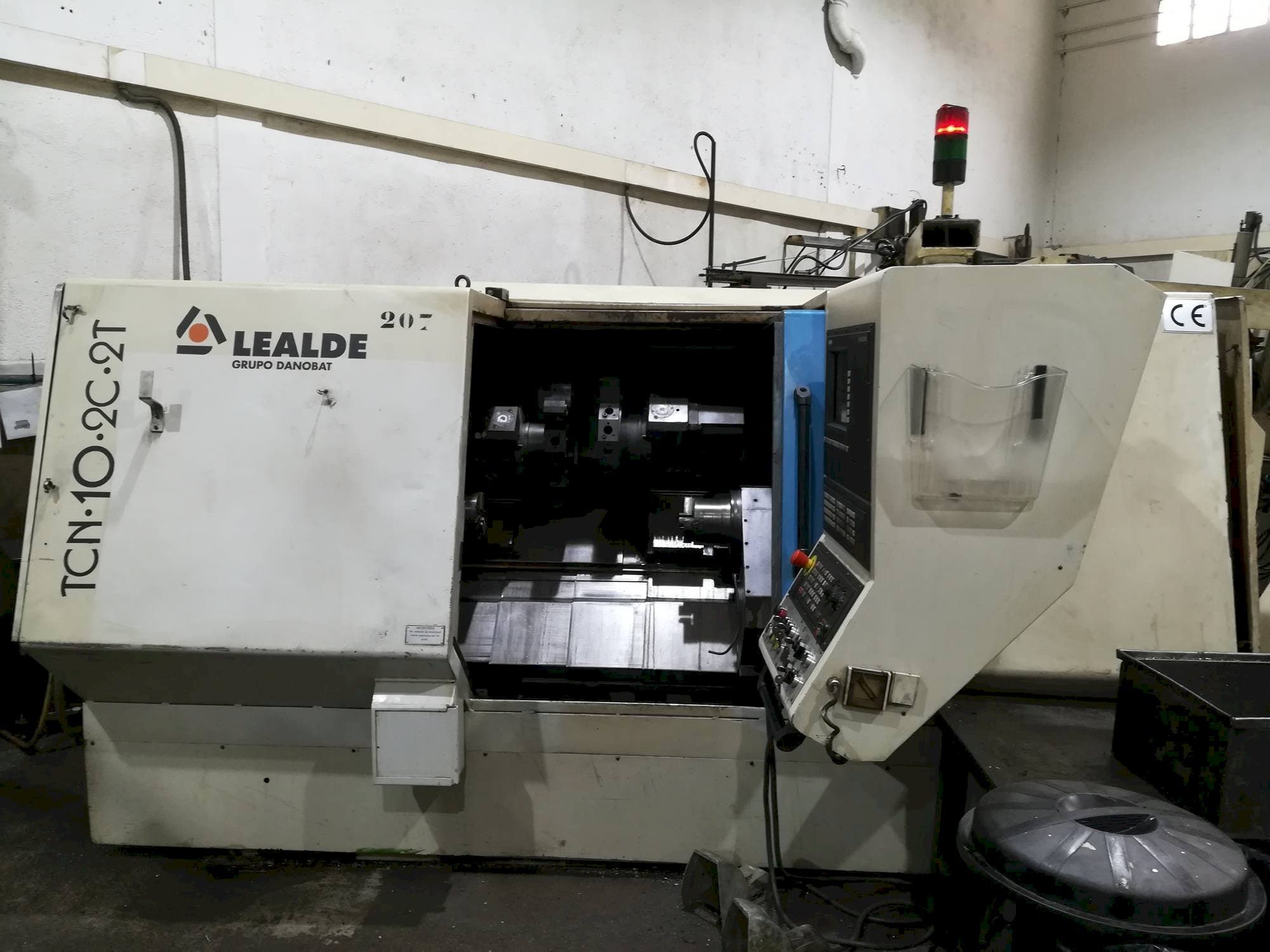

Photo Gallery

Lealde - TCN 10 2C 2TES-TUR-LEA-1996-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Lealde TCN 10 2C 2T Lathe

Show in original language

This Lealde TCN 10 2C 2T Lathe was built in 1996 in Spain. Operated through a SIEMENS SINUMERIK 840C Control unit, this machine can work with a spindle speed up to 4000 rpm.

Overview

brand: Lealde
year: 1996
MODEL: TCN 10 2C 2T
application type: Turning
Location: Spain
machine type: Horizontal Turning Machine
control unit brand: SIEMENS

Technical Information - Lealde TCN 10 2C 2T

Control Unit

Control Brand: SIEMENS
Control Model: SINUMERIK 840C

Dimensions

Machine Weight: 3100 kg

Technical Specification

Spindle Power: 15 kW
Spindle Speed: 4000 RPM

Additional Information

Additional equipment

Set of jaws

Machine Benefits

Technical Machine Benefits

Maximum distance between main shaft nose and tailstock point 520 mm
Main shaft torque 190 nm
Max. Permissible diameter on longitudinal guides 450mm
Maximum permissible diameter on transverse slides 210mm
Longitudinal slide travel 500mm
Positioning repeat accuracy x axis +-0, 003 z axis +-0, 007
Motor drive torque longitudinal spindle 10nm
Plate 254mm
Pitch bar 64mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
