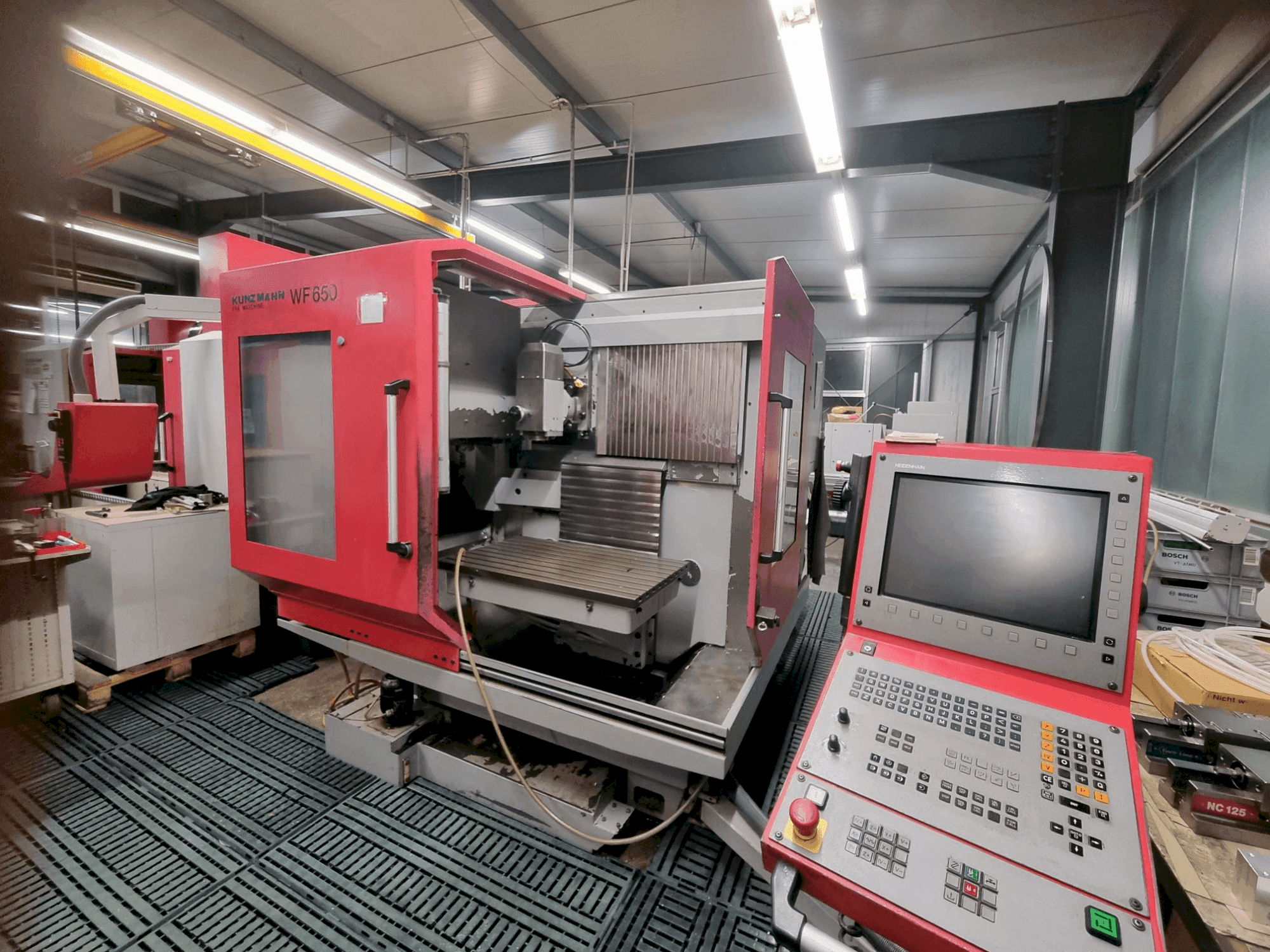

Front view of KUNZMANN WF 650  machine

KUNZMANN - WF 650DE-MIL-KUN-2006-00001

Rs. 1,701,000
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis KUNZMANN WF 650 was manufactured in 2006. A vertical machining center featuring a robust angled table measuring 1,000 x 600 mm, iTNC 530 control, and a pull-out chip box. It includes a 2-stage gearbox with a spindle speed up to 6,500 rpm and SK 40 taper. With 20 tool places and spindle hours at 5,355, the KUNZMANN WF 650 machine we have for sale represents a solid opportunity. Contact us for further details.

Overview

  • brand: KUNZMANN
  • year: 2006
  • MODEL: WF 650
  • production hours: 20
  • application type: Milling
  • Location: Germany
  • machine type: Machining centers (vertical)
  • availability: Immediately

Technical Information - KUNZMANN WF 650

General Data

  • Measurements width: 2700 MM
  • Measurements depth: 2300 MM
  • Measurements height: 2250 MM

Control Unit

  • Model: iTNC 530

Main drive

  • Spindle speed range: 6500 1/MIN
  • Spindle bore: 27mm
  • Tool taper: SK 40
  • Number of axis: 5

Movement

  • X-AXIS Movement: 650 MM
  • Y-AXIS Movement: 500 MM
  • Z-AXIS Movement: 450 MM

Table

  • Outer length: 1000 mm
  • Outer width: 600 mm

Tools

  • Slots in storage: 20

    General Data

    • Measurements width: 2700 MM
    • Measurements depth: 2300 MM
    • Measurements height: 2250 MM

    Control Unit

    • Model: iTNC 530

    Main drive

    • Spindle speed range: 6500 1/MIN
    • Spindle bore: 27mm
    • Tool taper: SK 40
    • Number of axis: 5

    Movement

    • X-AXIS Movement: 650 MM
    • Y-AXIS Movement: 500 MM
    • Z-AXIS Movement: 450 MM

    Table

    • Outer length: 1000 mm
    • Outer width: 600 mm

    Tools

    • Slots in storage: 20

      Additional equipment

      • - Chip flushing gun
      • - Pull-out chip box
      • - Table top edge to horizontal spindle center max 720mm
      • - Upper edge of table to lower edge of milling spindle max 550mm
      • - Max. workpiece weight 400kg
      • - Torque 300Nm
      • - Quill stroke 60mm // Quill diameter 98mm
      • - 20 tool places

      Additional Information

        Machine Benefits

        • Technical Machine Benefits:
          • - Spindle hours: 5,355 h
          • - Switch-on hours: approx. 20,000 h
          • - Speeds: stage 1: 1-1625 min-1 stage 2 1626-6500 min-1
          • - Weight with rigid angular table 4800kg
          • - Weight with fixed angled table and tool changer 5300kg

        Extra information

        • - Machine still under power

      *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
